Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Cruise Control Unit | Under instrument cluster, near relay block. See Figure . |

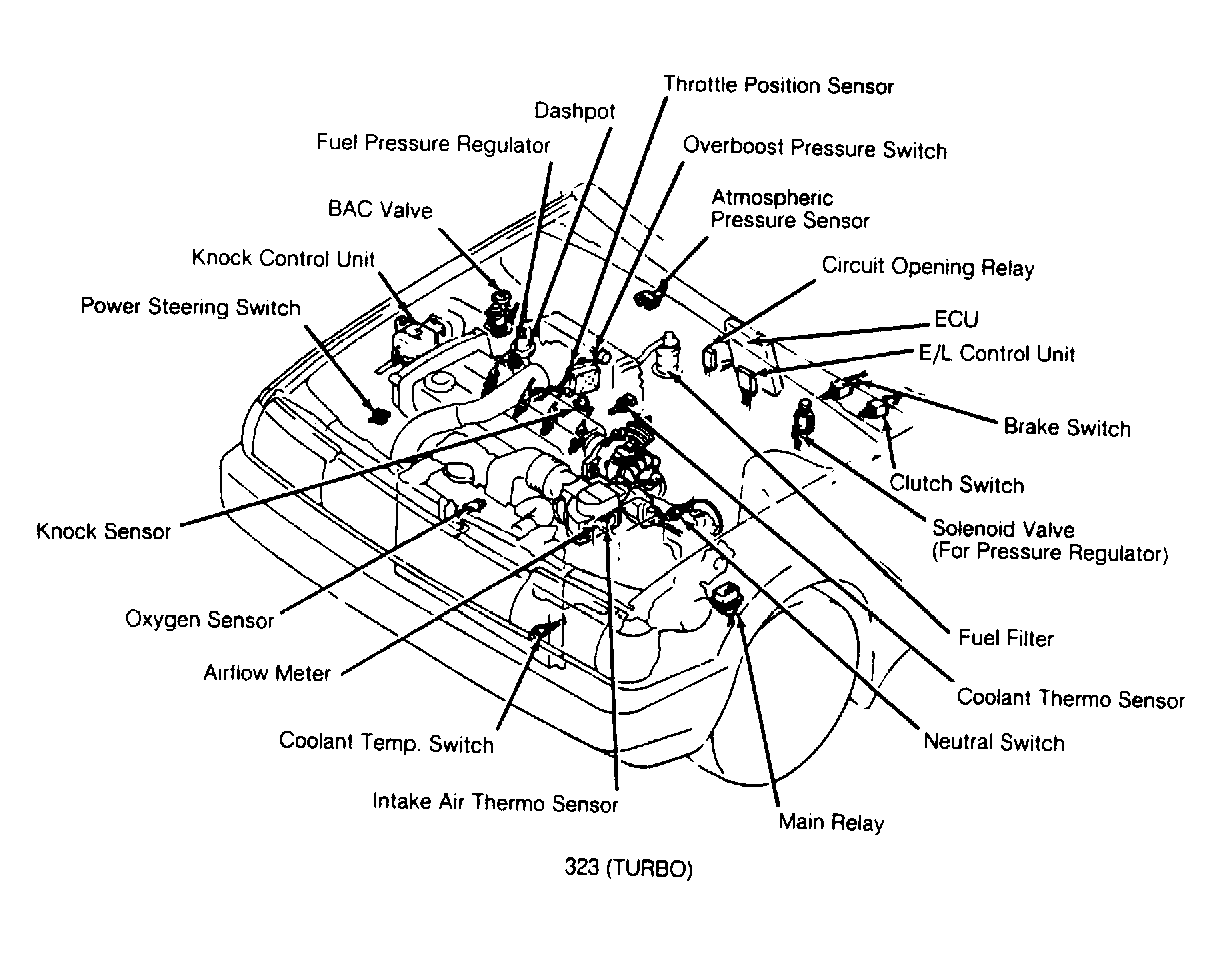

| Engine Control Unit | Behind center of dash. See Figure & Figure . |
| Electric Load (E/L) Control Unit | Behind engine control unit. See Figure & Figure . |
| Fuel Pump Control Unit (Turbo) | Under driver's seat. |
| Idle-Up Control Unit | Under electronic control assembly/unit. See Figure . |
| Intermittent Wiper Unit | Mounted inside steering column. See Figure . |
| Knock Control Unit | In front of right strut tower. See Figure . |
| Oscillator Unit | Under left side of dash, behind instrument cluster. See Figure . |
