Wiring Diagrams

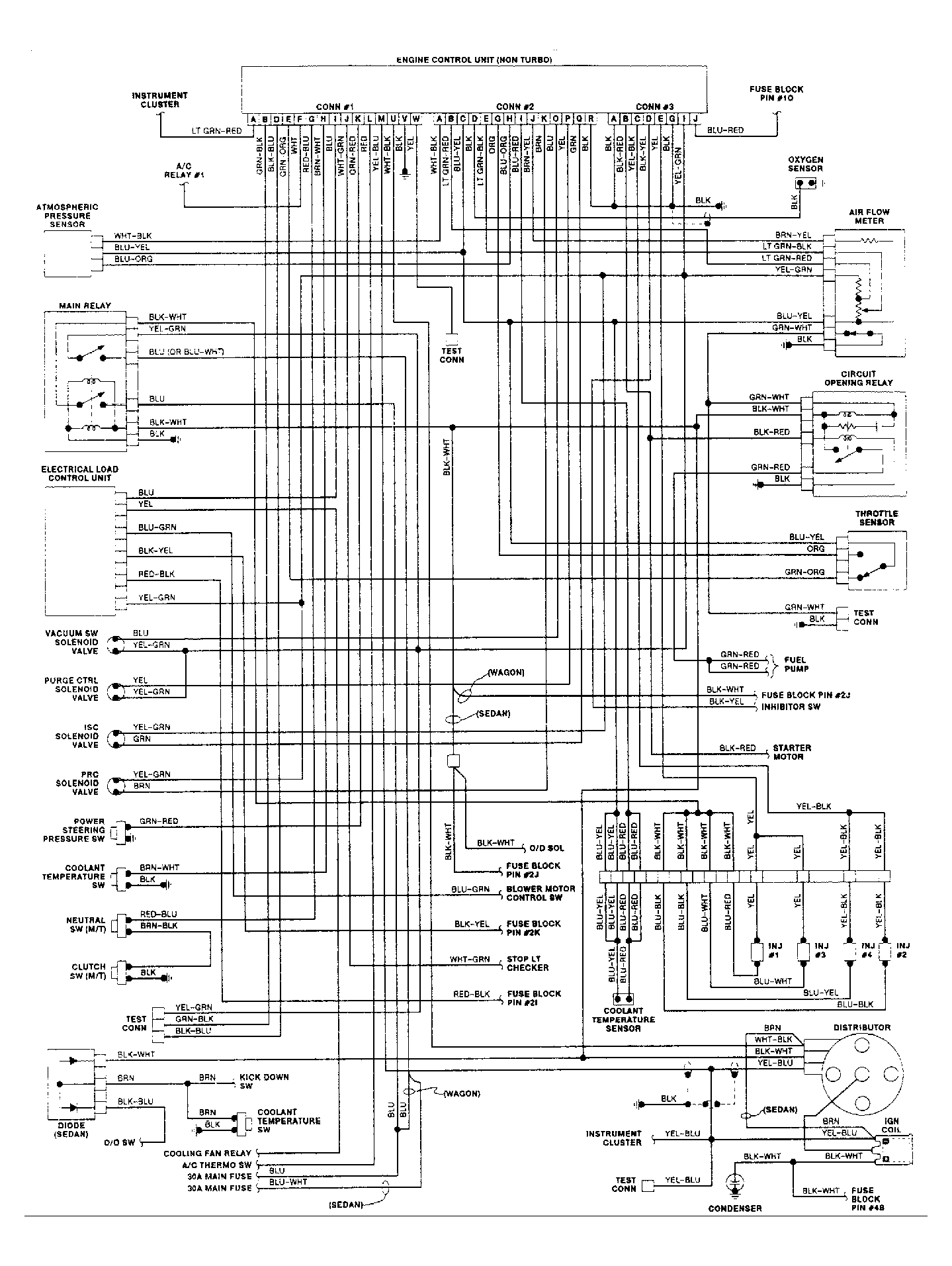

Fig 1: Wiring Diagram for 323 EGI Non-Turbo

G94799

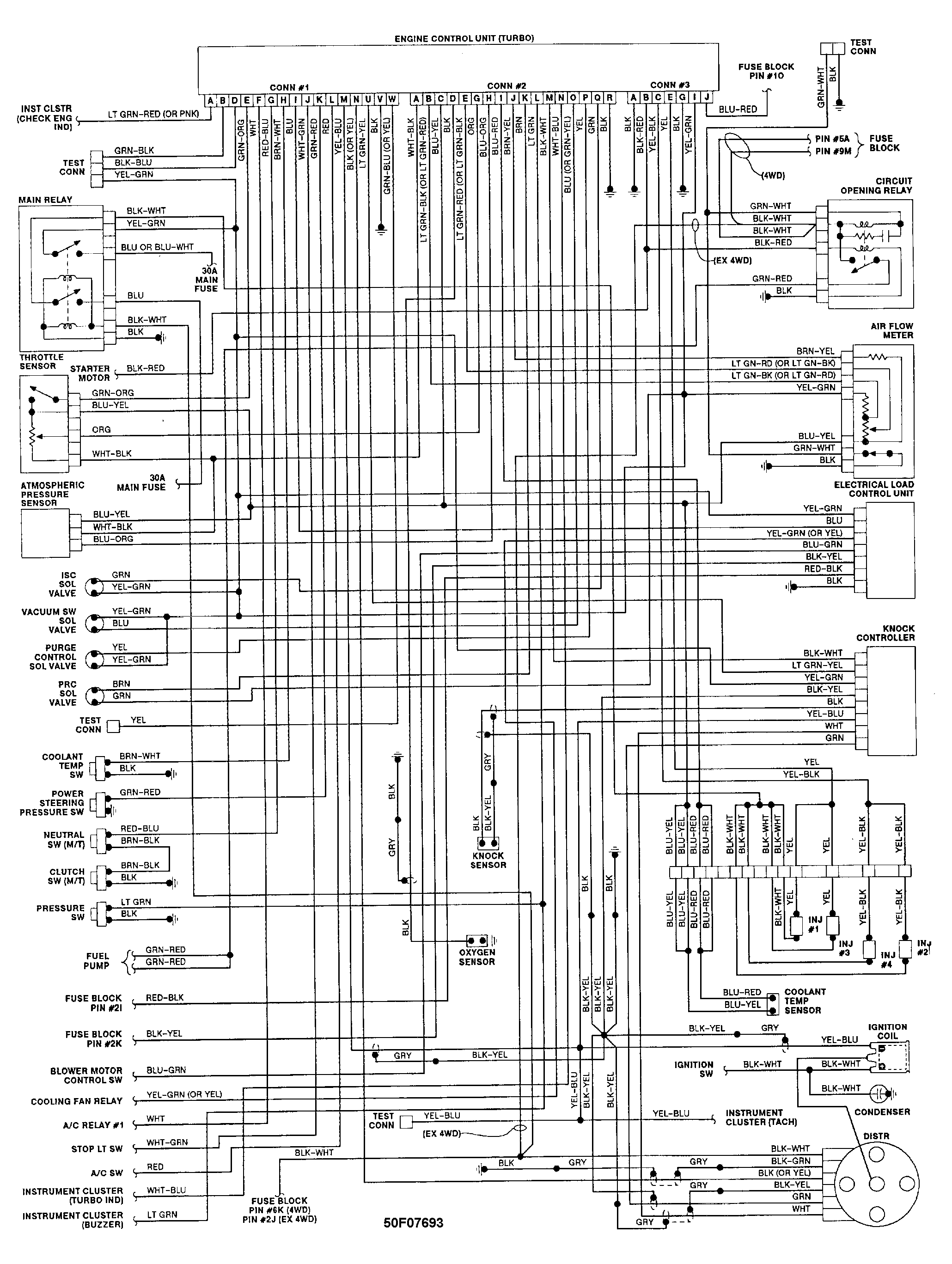

Fig 2: Wiring Diagram for 323 EGI Turbo

G50F07693
