Electrical Load Control Unit

Connect a voltmeter between control unit and ground. Start engine. Check voltage at terminals using ELECTRICAL CONTROL UNIT VOLTAGE chart. See Fig 1 .

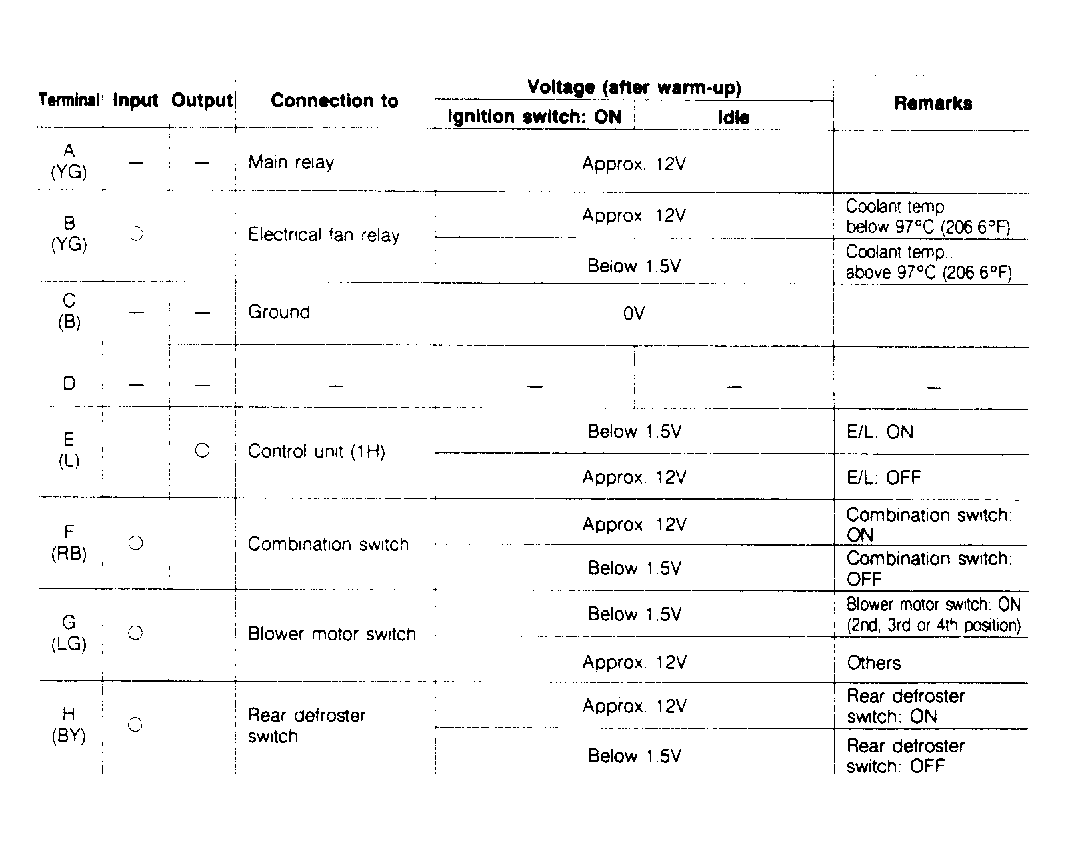

Fig 1: Electrical Control Unit Voltage
G94795
