Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

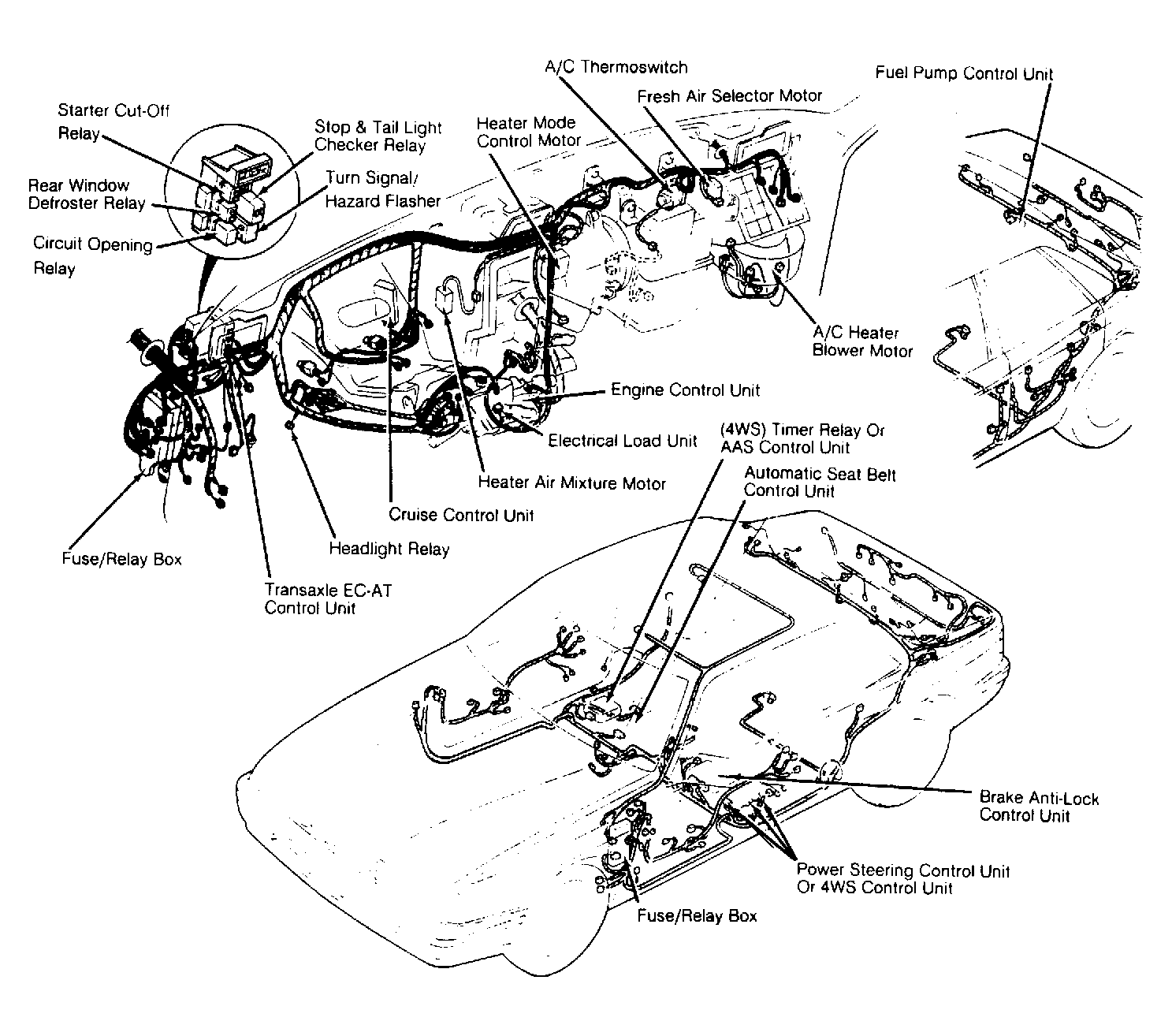

| Automatic Adjusting Suspension (AAS) Control Unit | Under passenger's seat. See Figure . |
| Accessory Control Unit | Behind left kick panel. |
| Automatic Seat Belt Control Unit | Under passenger's seat. See Figure . |
| Brake Anti-Lick Control Unit | Under driver's seat. See Figure . |
| Central Processing Unit (CPU) | Behind left kick panel, on fuse/relay box. |

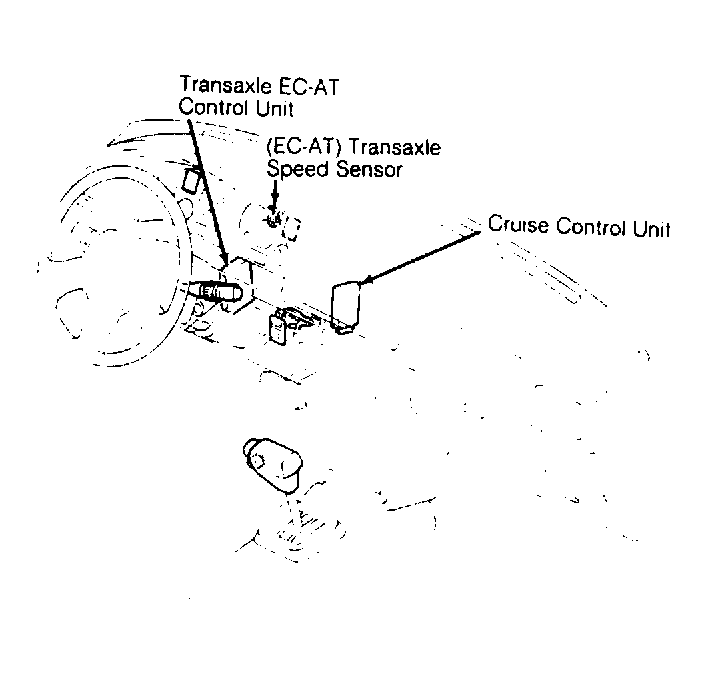

| Cruise Control Unit | On right side behind kick panel. See Figure & Figure . |
| Electronic Control Automatic Transaxle (EC-AT) Control Unit | Under dash, on right side of steering column. See Figure , Figure & Figure . |

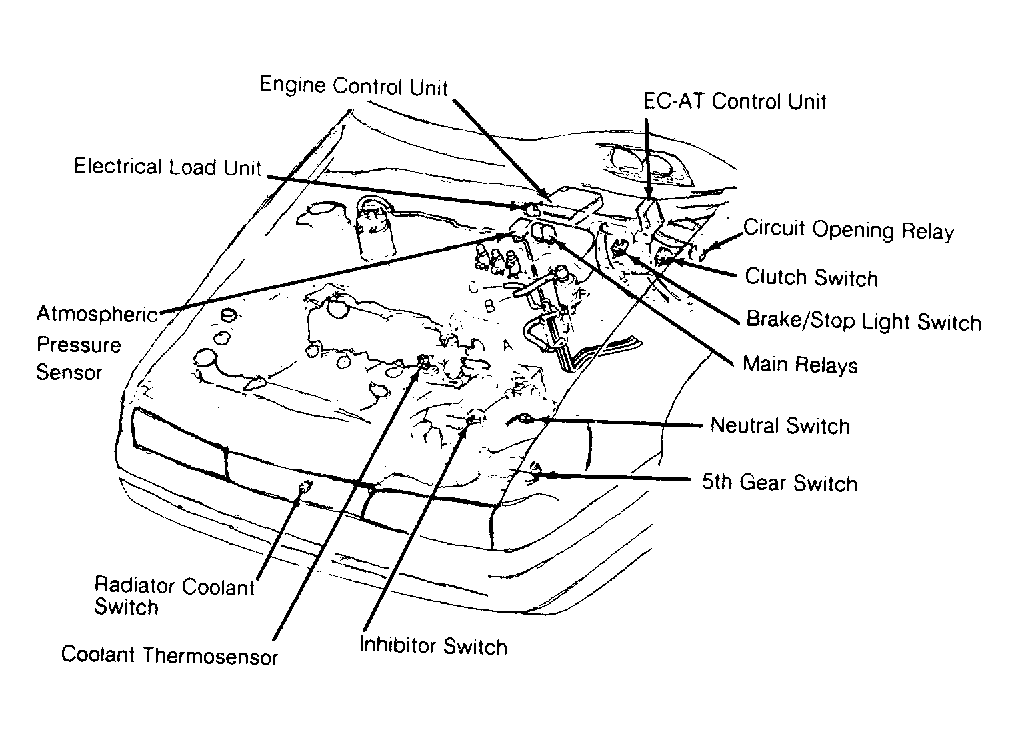

| Electronic Load Unit | Under center of dash, behind engine control unit. See Figure & Figure . |
| Engine Control Unit | Under center of dash. See Figure & Figure . |
| Fuel Pump Control Unit | In front center of trunk. See Figure . |
| Knock Control Unit | On right side of firewall. See Figure . |
| Four Wheel Steering Control Unit | Under driver's seat. See Figure . |
| Power Steering Control Unit | Under drivers seat. See Figure . |
