Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|

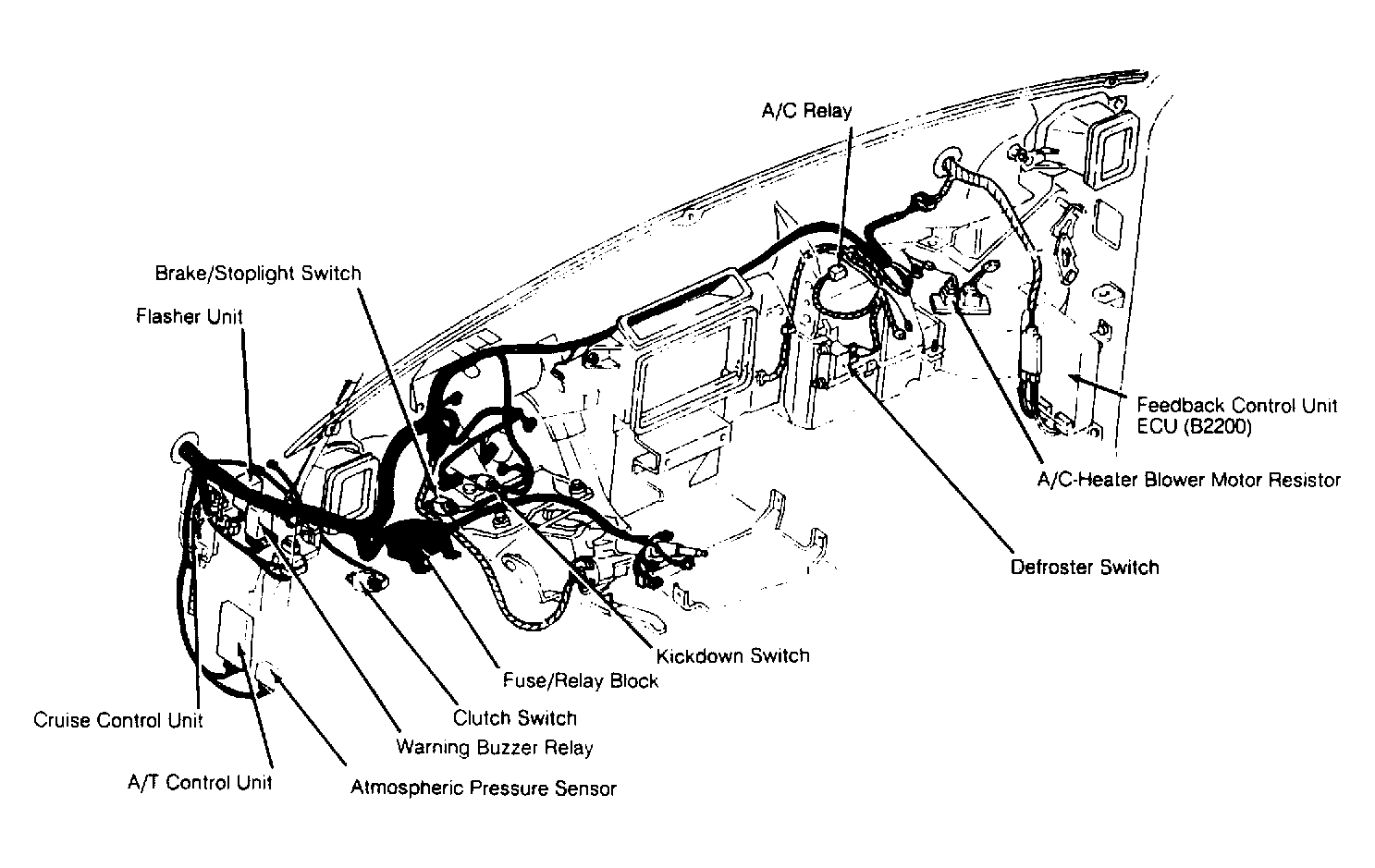

| A/T Control Unit | Behind left kick panel. See Figure . | |
| Cruise Control Unit | Under left side of dash, next to kick panel. See Figure . | |
| Emission Control Unit (ECU) | ||
| B2200 | Behind right kick panel. | |
| B2600 | Behind left kick panel. | |
| FDBK Control Unit (ECU) | Behind right kick panel. See Figure . | |
| Flasher Unit | Under left side of dash. See Figure . | |
| Fuel Pump Control Unit | Under left side of dash. | |
