Crank Angle Sensor

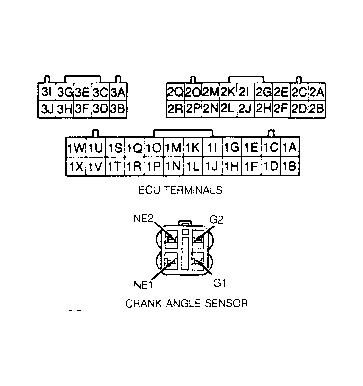

- Remove sensor connector. Note terminal identification. See Figure . Using ohmmeter, check resistance at specified terminals. Resistance must be within specification. See CRANK ANGLE SENSOR RESISTANCE table.
CRANK ANGLE SENSOR RESISTANCE
| Terminal | Ohms |
|---|---|
| G1 & G2 | 110-210 |
| NE1 & NE2 | 110-210 |
