Turbo Solenoid Valve

  1. Disconnect vacuum hoses from solenoid valve. Blow through port "B". See Fig 1 . Air should flow from air filter. Remove connector from solenoid valve.
  2. Apply battery voltage and ground to proper terminals. See Fig 1 . Blow through port "B". Air should flow from port "A".

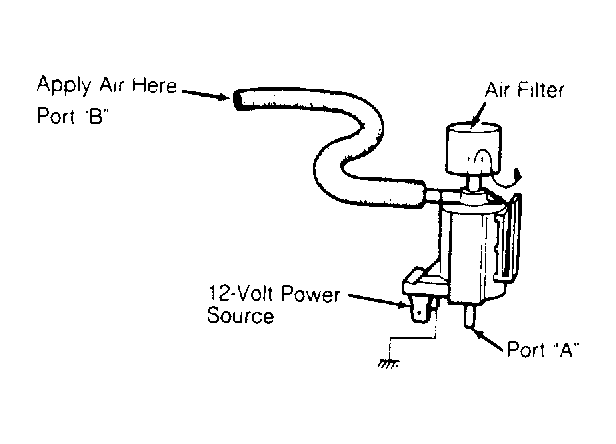

Fig 1: Testing Turbo Solenoid Valve
G94870Courtesy of MAZDA MOTORS CORP.
