Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Cruise Control Unit | Under instrument cluster, near relay box. |

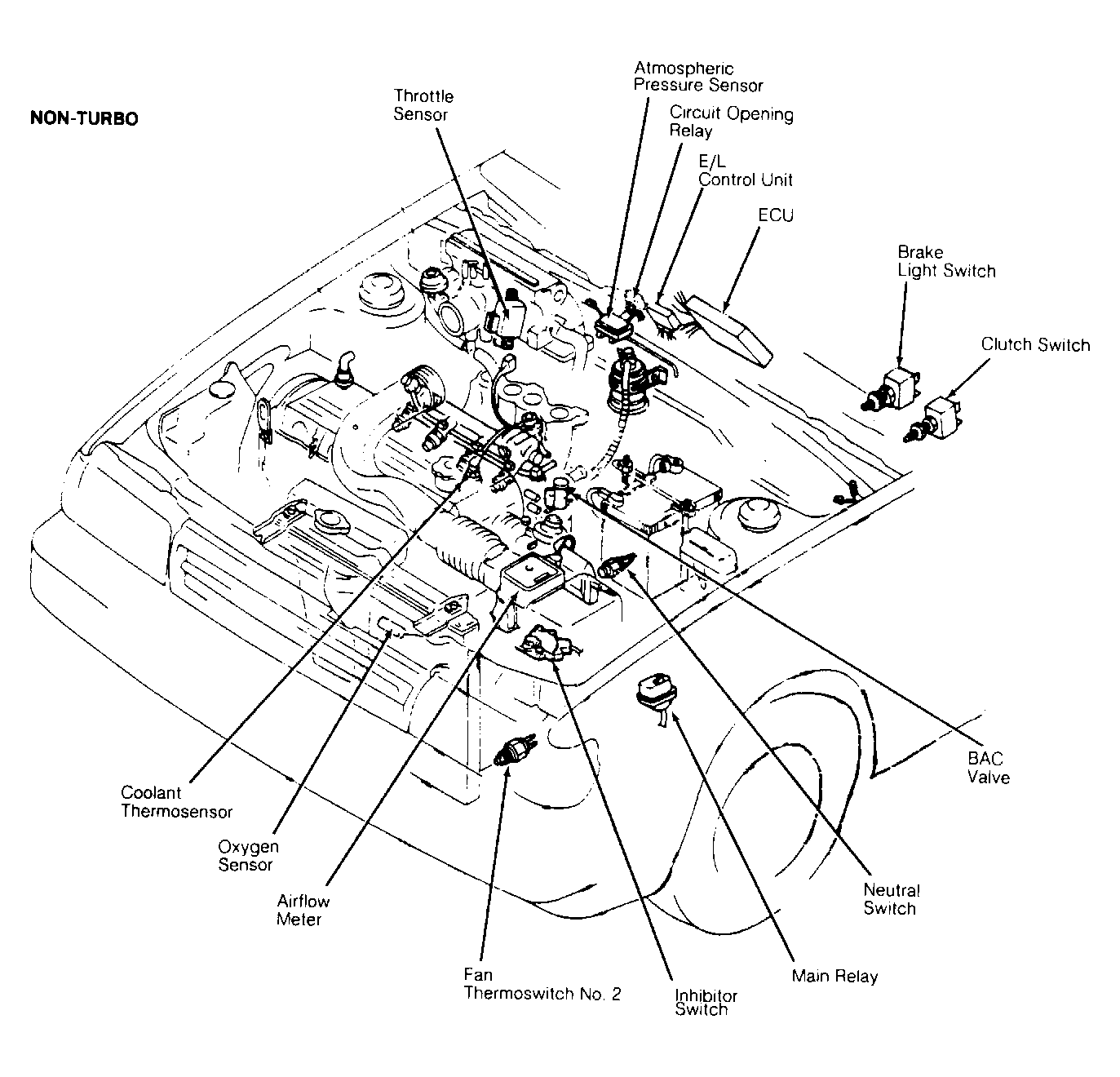

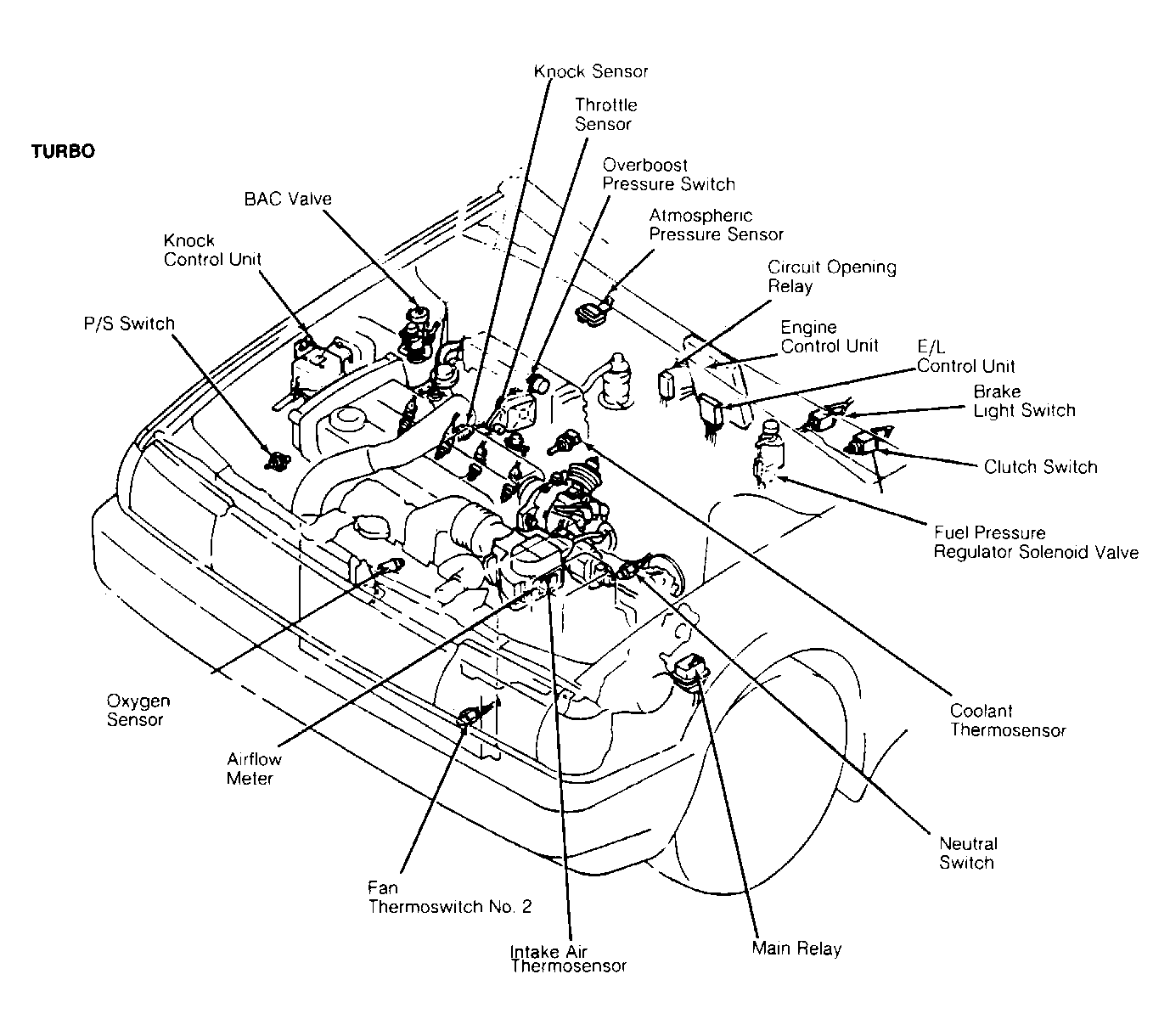

| Engine Control Unit (ECU) | Behind center of dash. See Figure & 2. |
| Electric Load (E/L) Control Unit | Behind engine control unit. See Figure & 2. |
| Fuel Pump Control Unit (Turbo) | Under driver's seat. |
| Idle-Up Control Unit | Under engine control unit. |
| Intermittent Wiper Unit | Mounted inside steering column. |
| Knock Control Unit (Turbo) | In front of right strut tower. See Figure . |

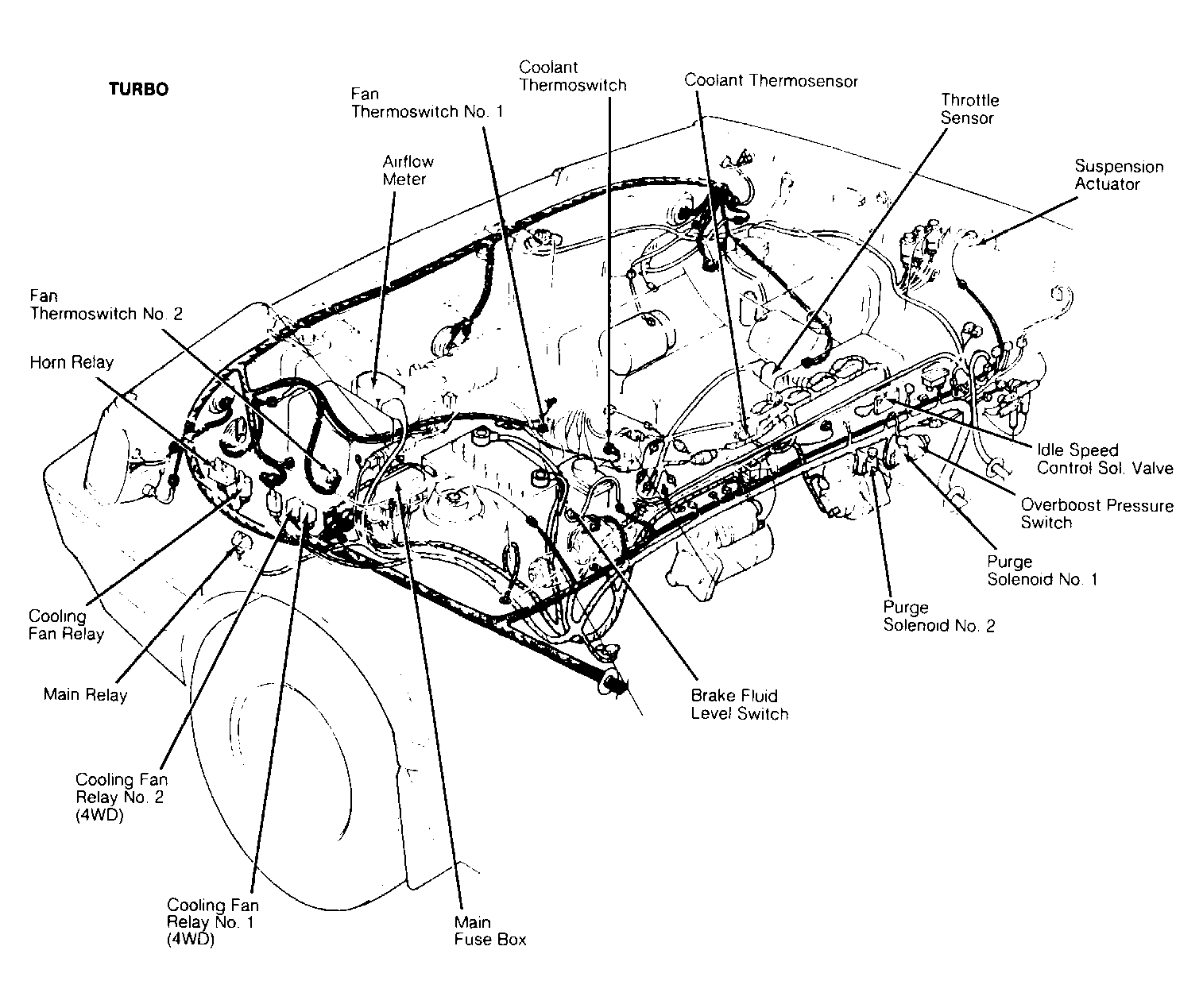

| Oscillator Unit | In relay box. See Figure . |
