Trouble Codes

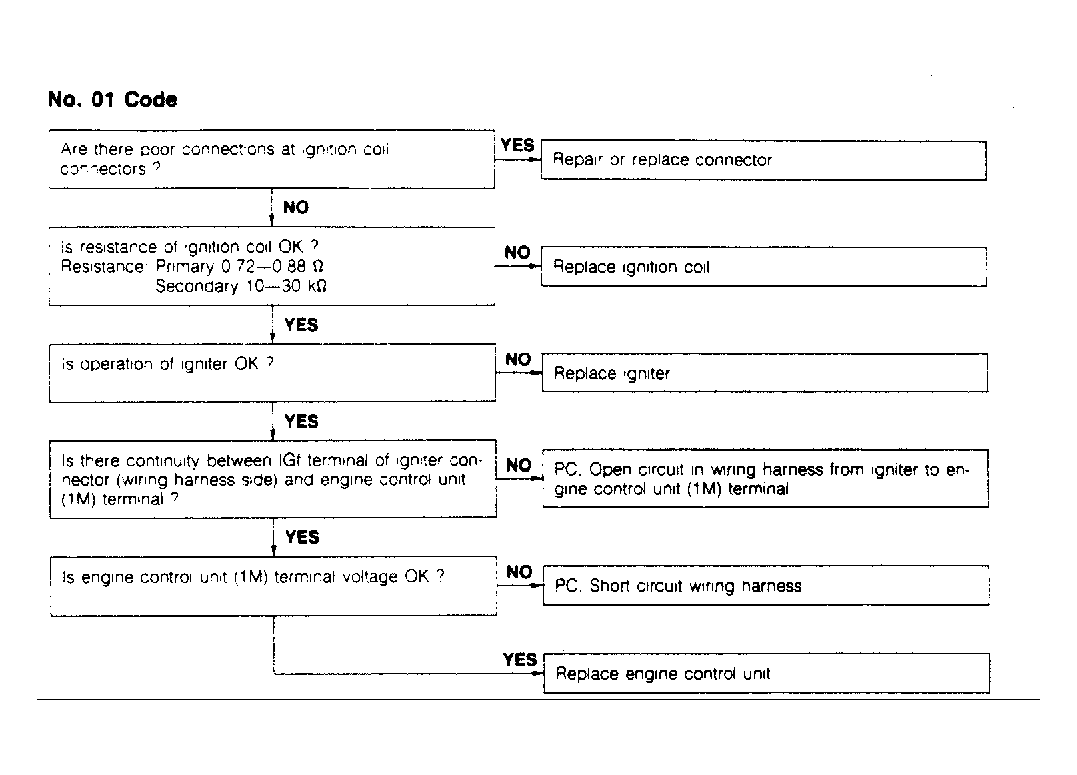

Fig 1: Code No.01 - Ignition Impulse

G94806

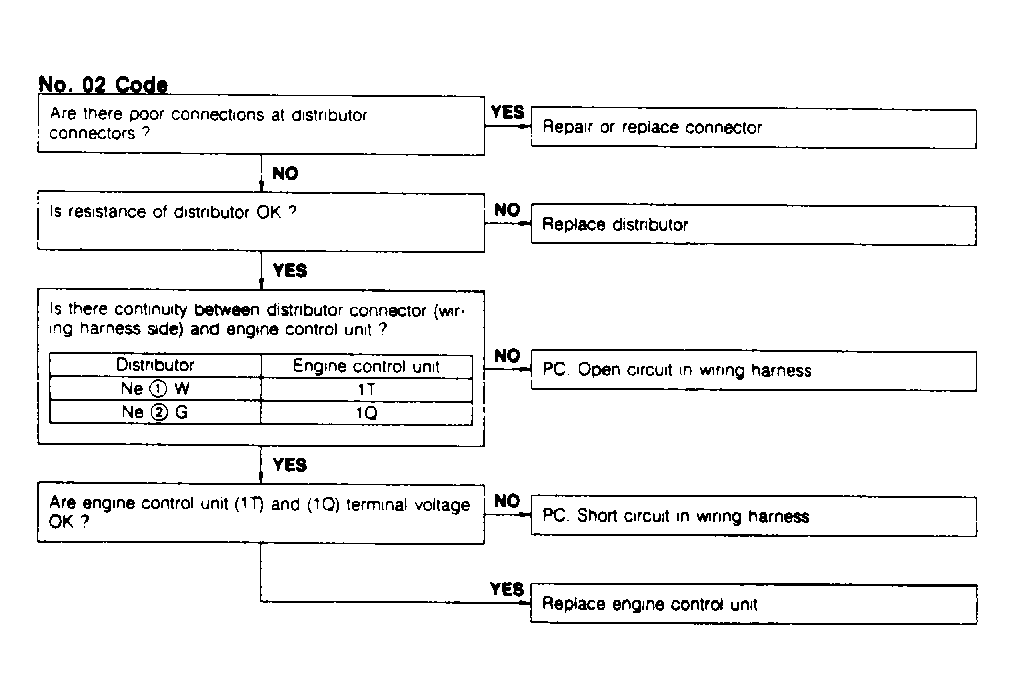

Fig 2: Code No.02 - Ne Distributor Signal

G94807

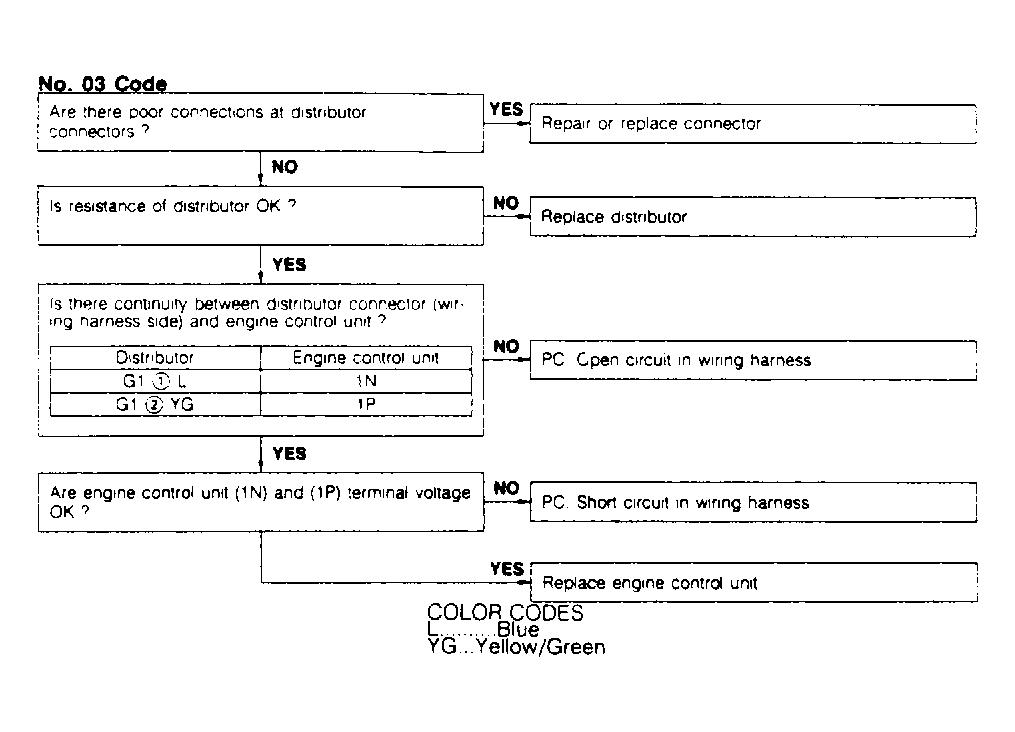

Fig 3: Code No.03 - G1 Distributor Signal

G94808

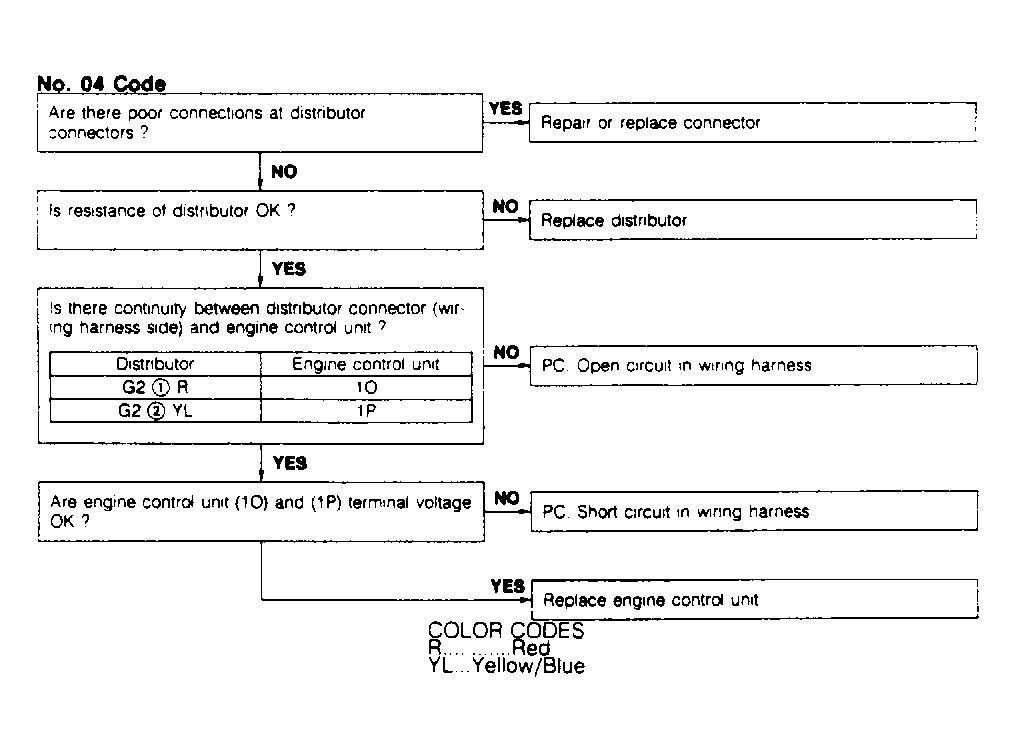

Fig 4: Code No.04 - G2 Distributor Signal

G94809

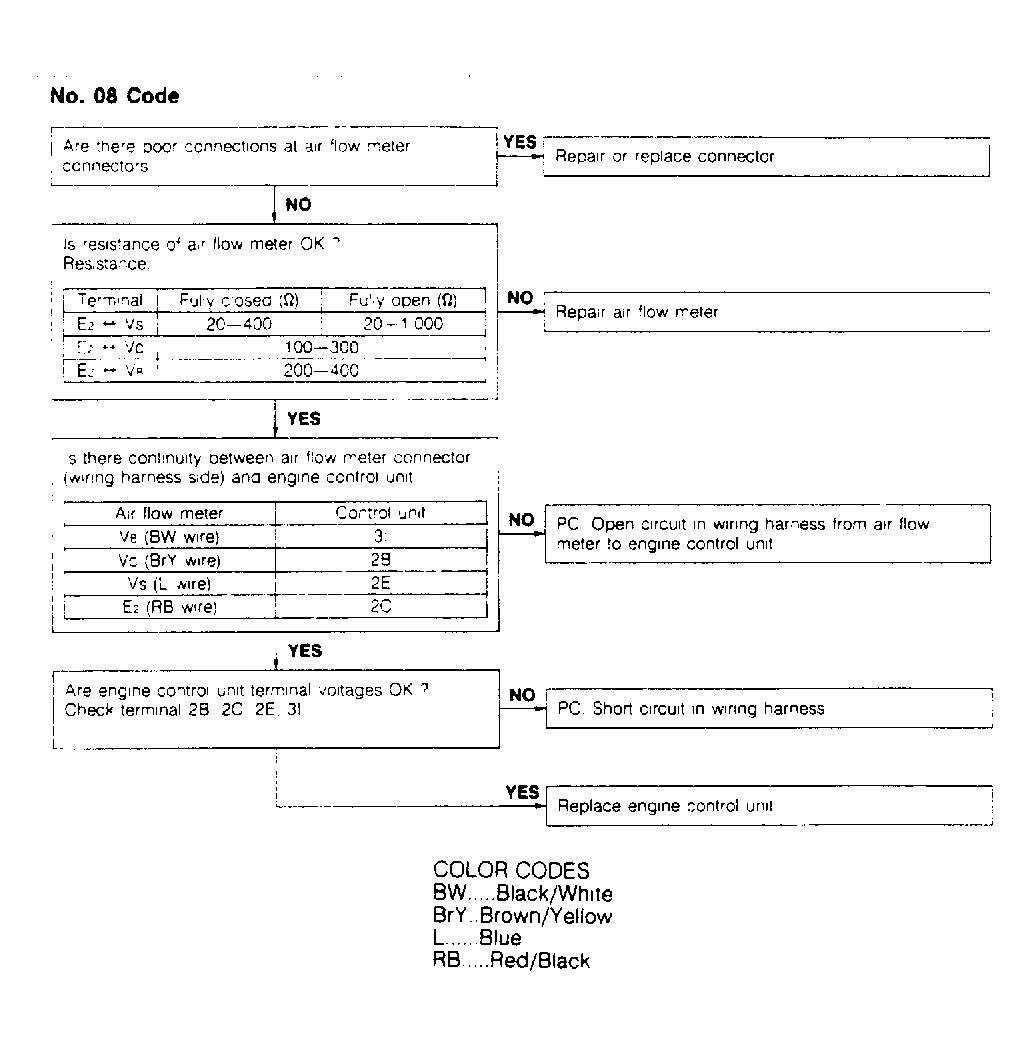

Fig 5: Code No.08 - Airflow Meter

G94810

Fig 6: Code No.09 - Water Thermo Sensor

G94811

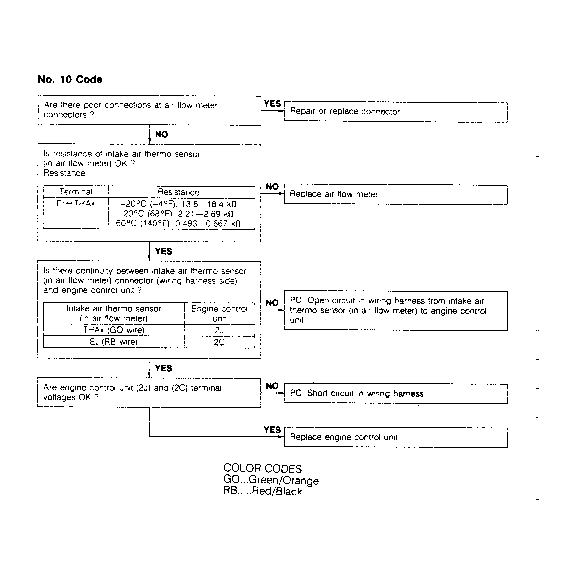

Fig 7: Code No.10 - Air Temp. Sensor

G94812

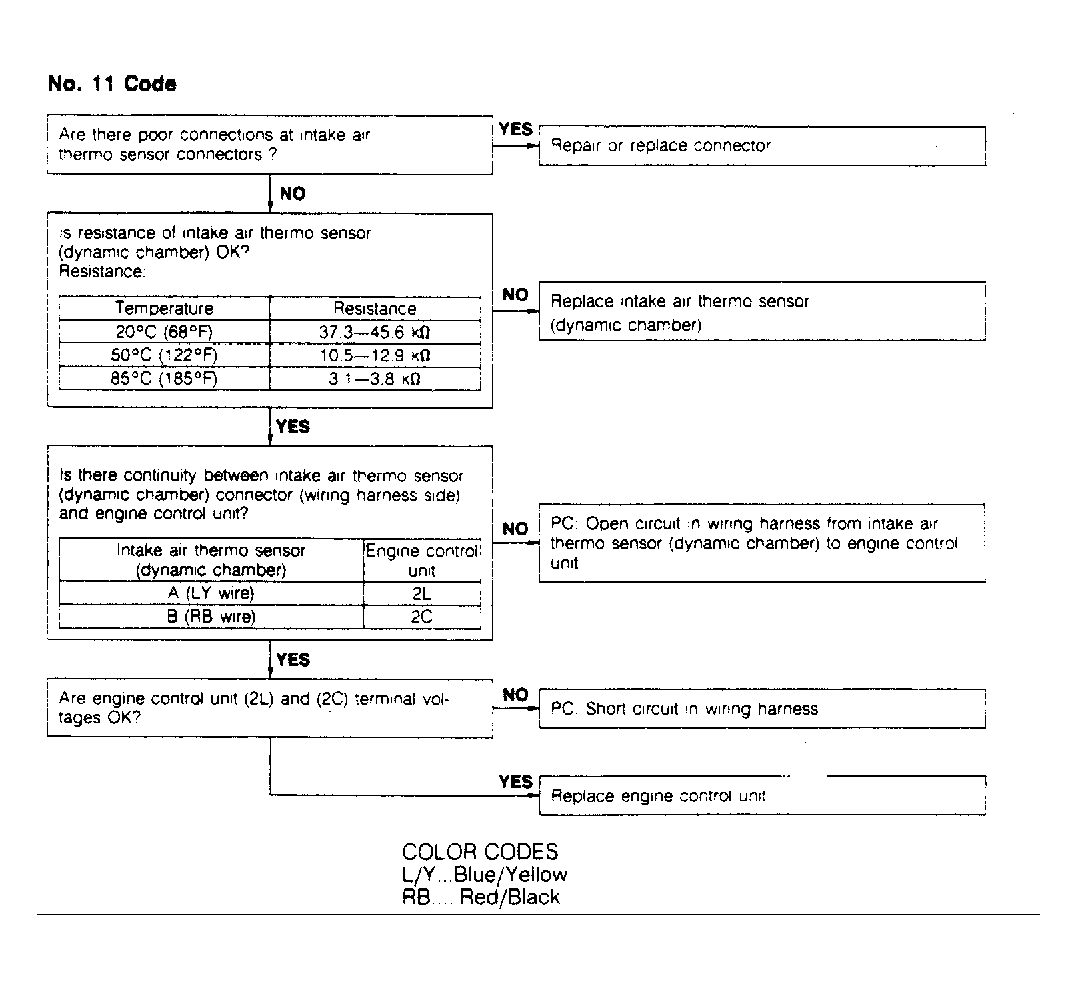

Fig 8: Code No.11 - Intake Manifold Air Temp. Sensor

G94813

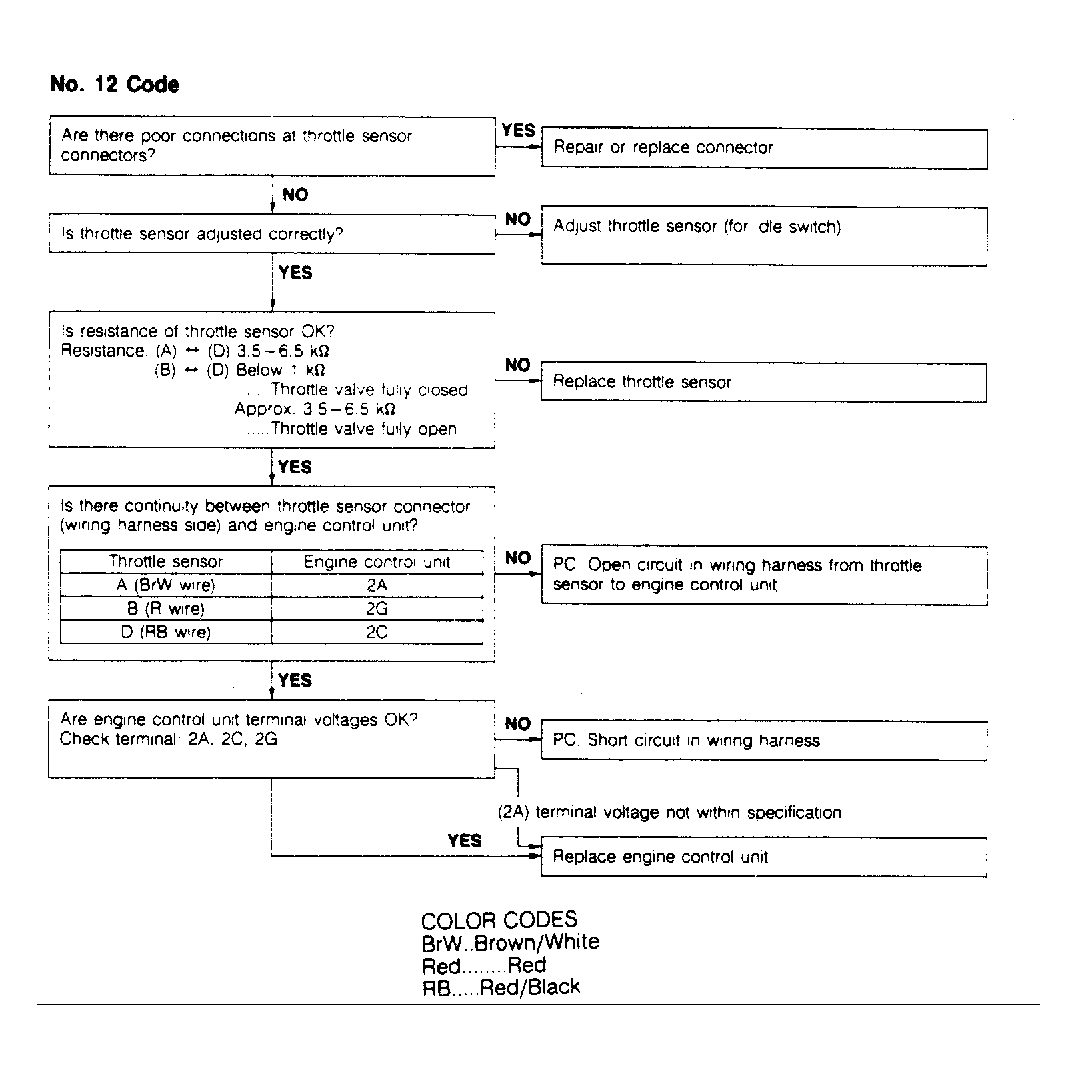

Fig 9: Code No.12 - Throttle Sensor

G94814

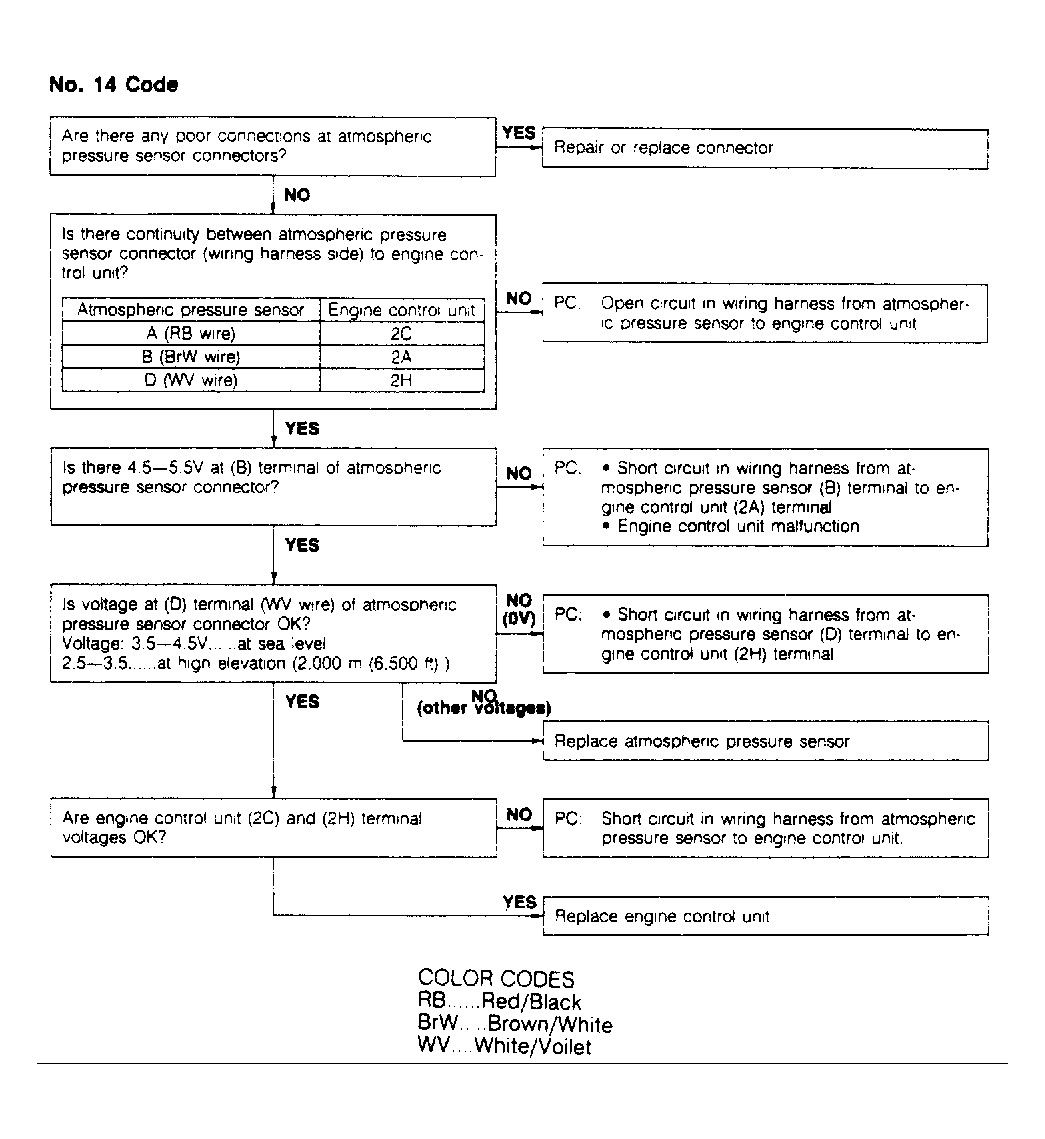

Fig 10: Code No.14 - Atmospheric Pressure Sensor

G94815

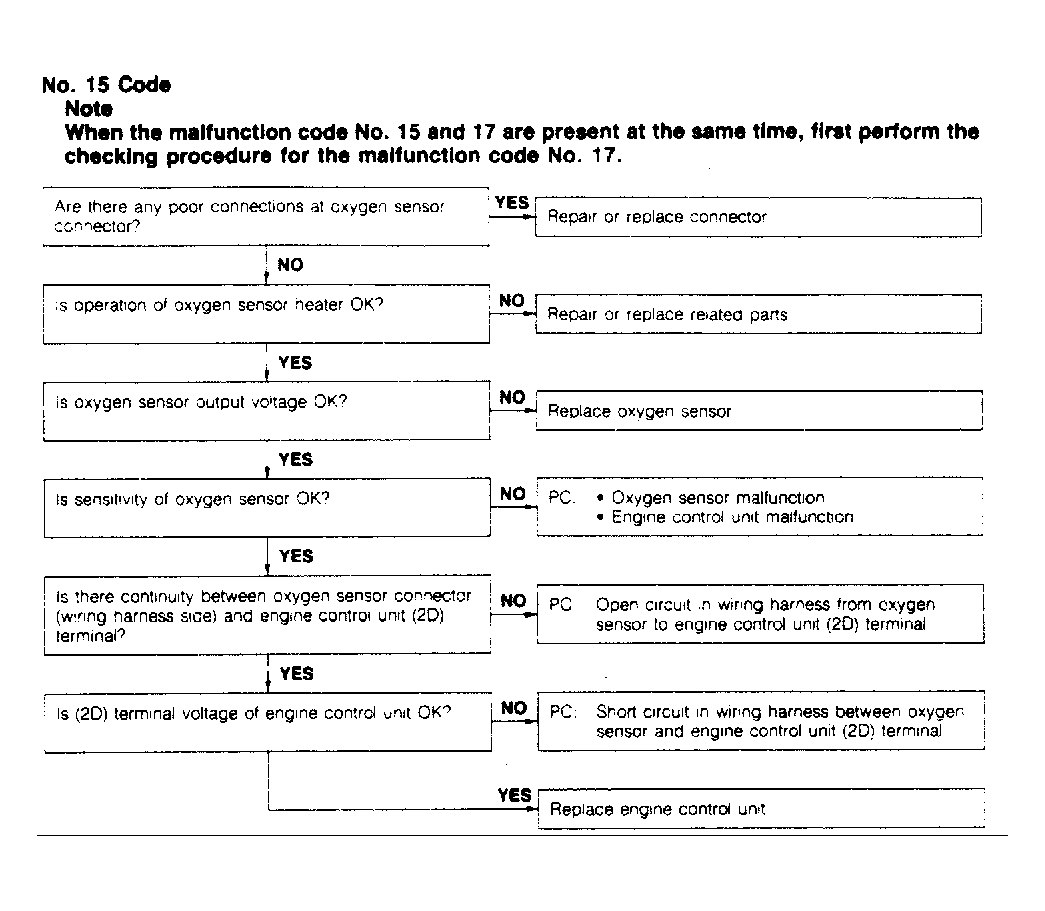

Fig 11: Code No.15 - Oxygen Sensor

G94816

NOTE: When the code No.15 and 17 are present at the same time, first perform the checking procedure for Code No.17.

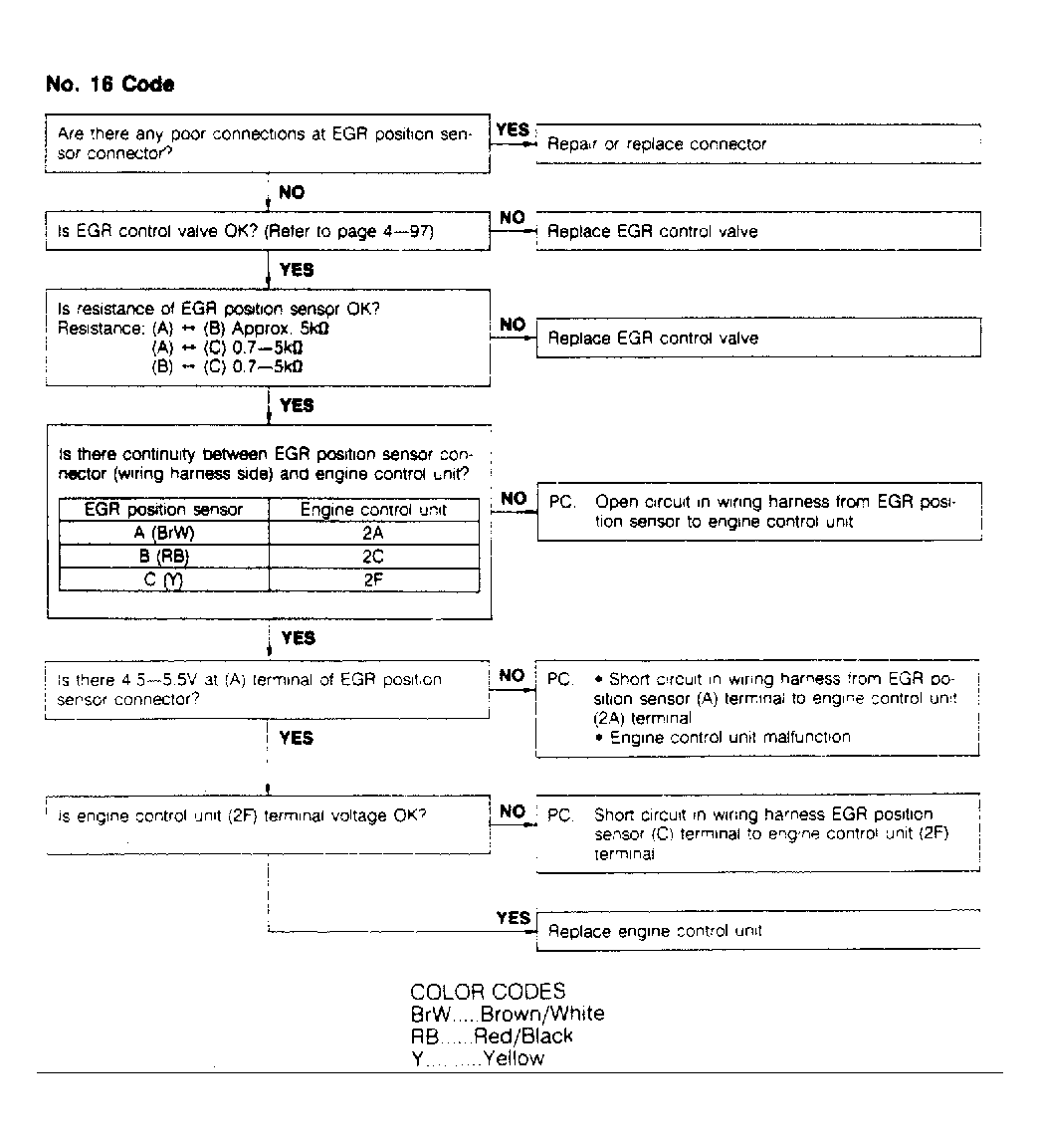

Fig 12: Code No.16 - EGR Position Sensor

G94817

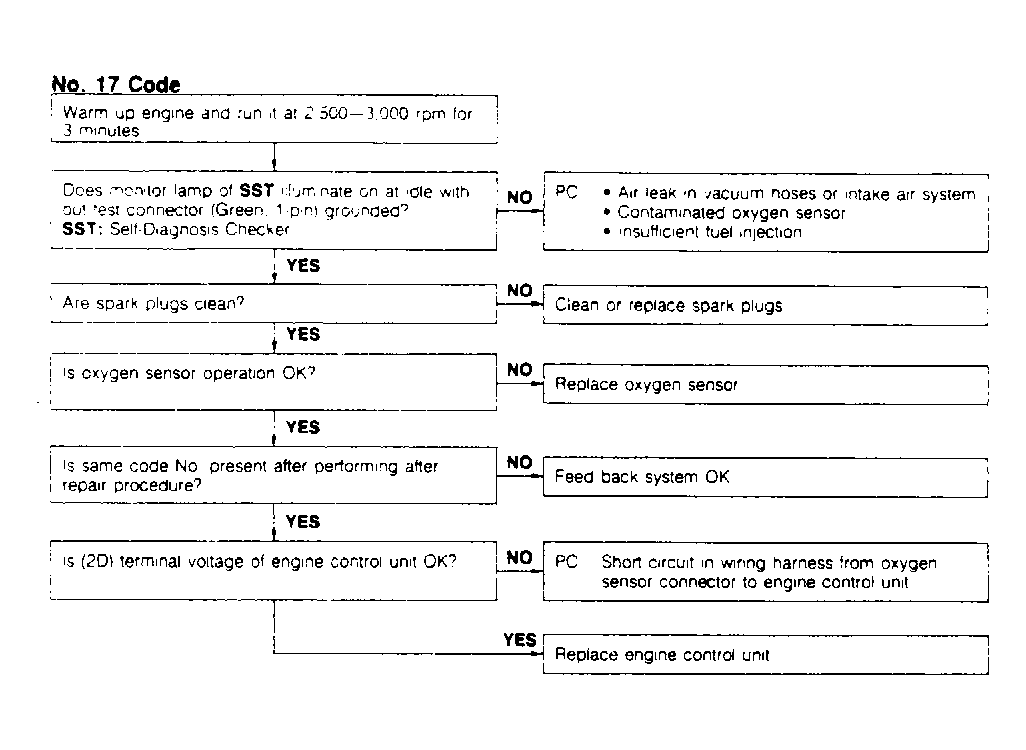

Fig 13: Code No.17 - Feedback System

G94818

Fig 14: Code No.25 - Pressure Regulator Control

G94819

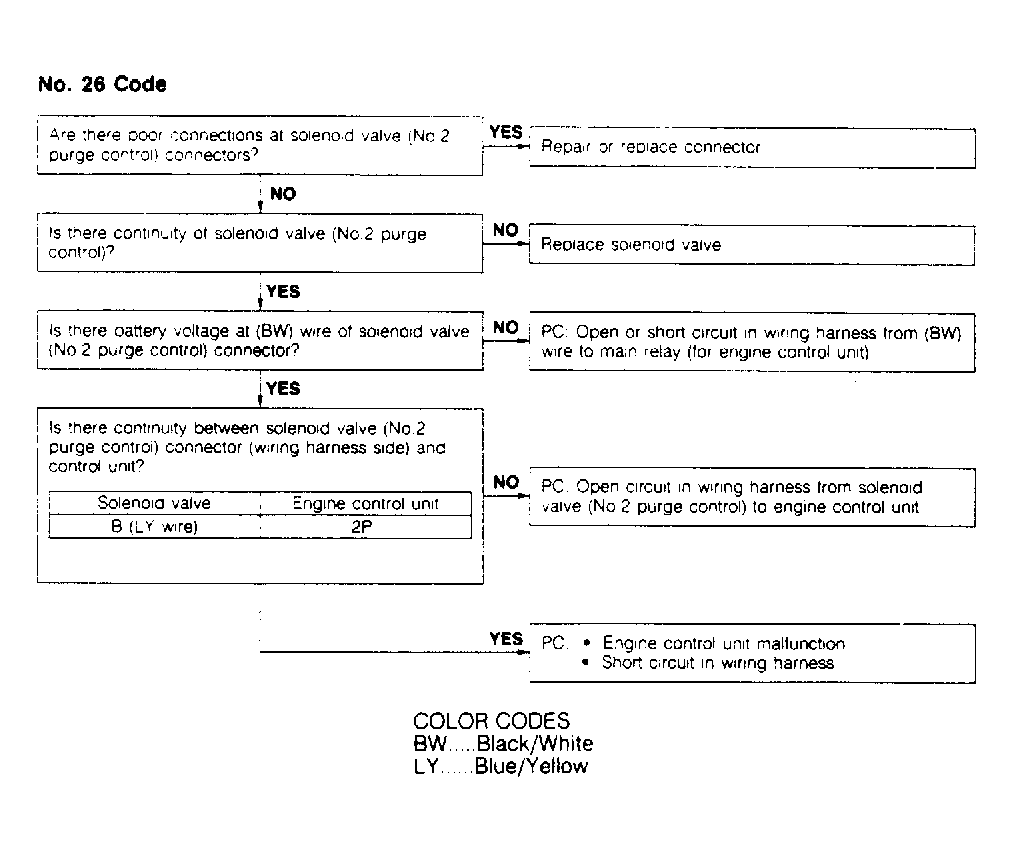

Fig 15: Code No.26 - No.2 Purge Control

G94820

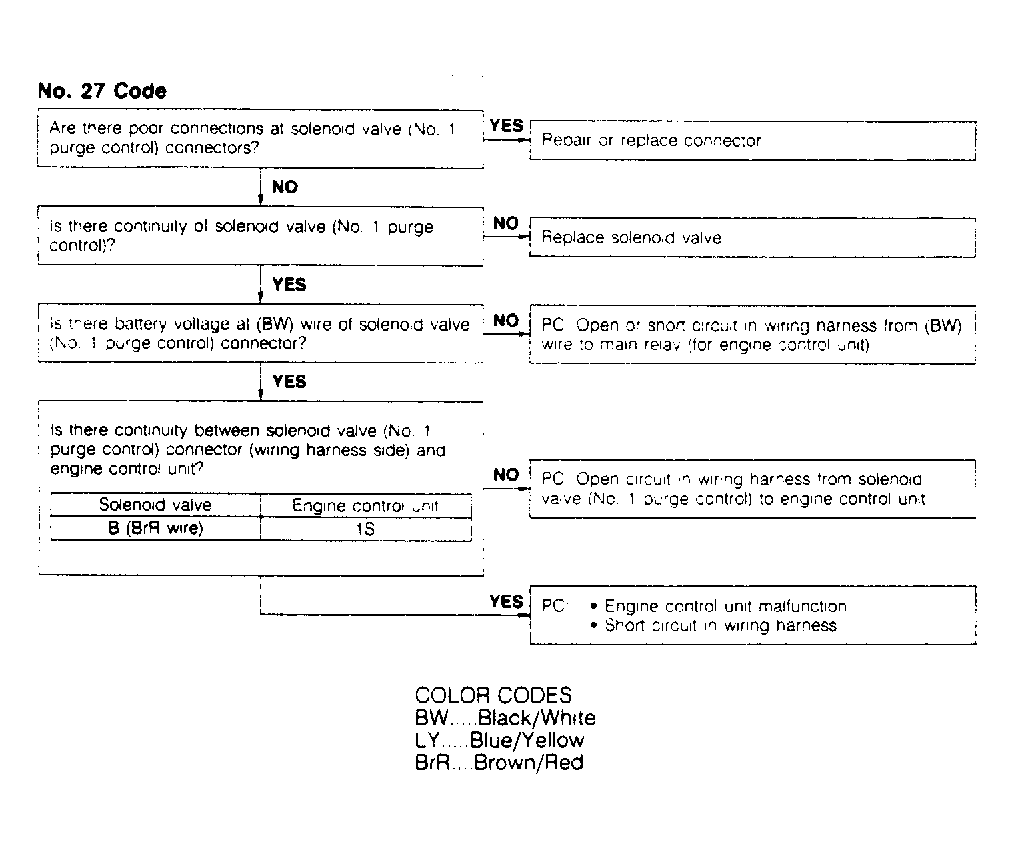

Fig 16: Code No.27 - No.1 Purge Control

G94821

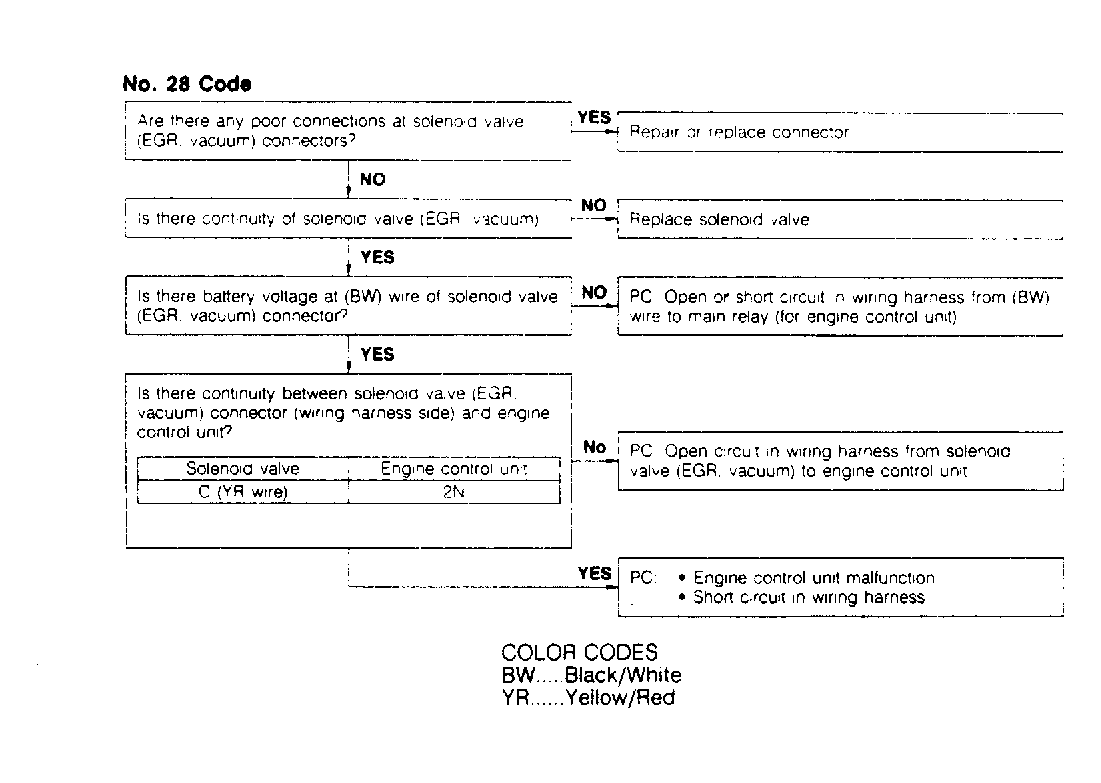

Fig 17: Code No.28 - EGR Valve - Vacuum Side Control

G94822

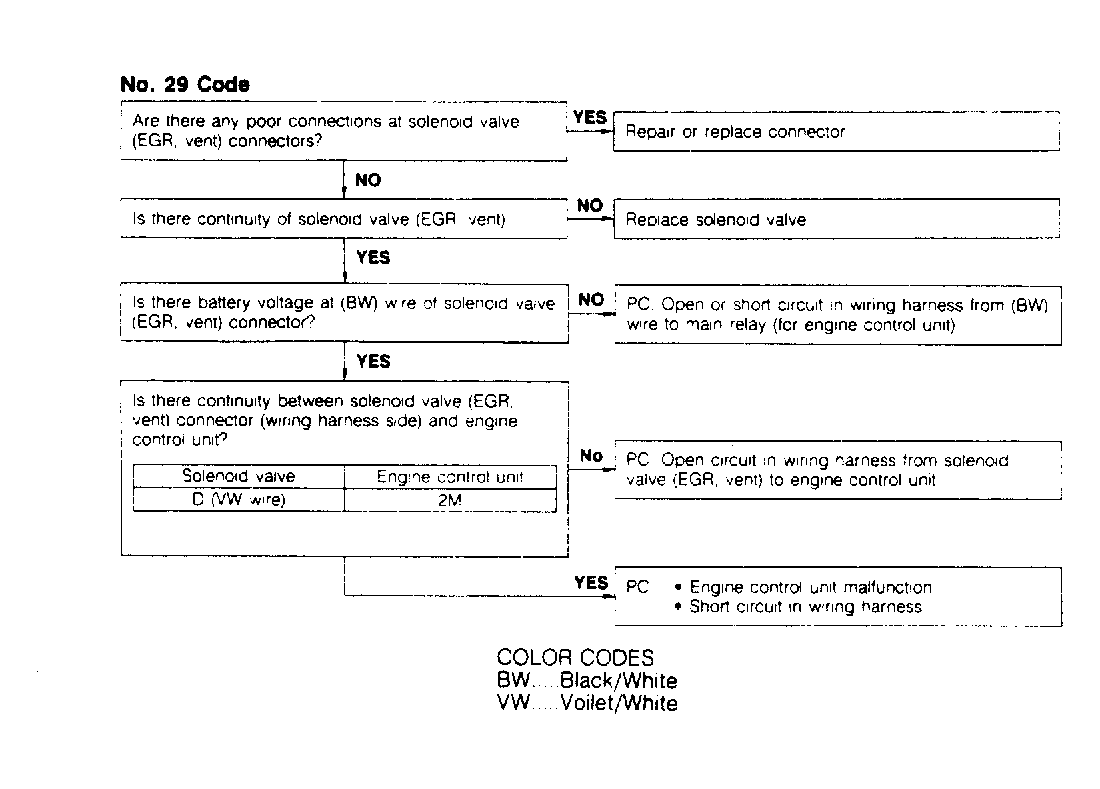

Fig 18: Code No.29 - EGR Valve - Vent Side Control

G94823

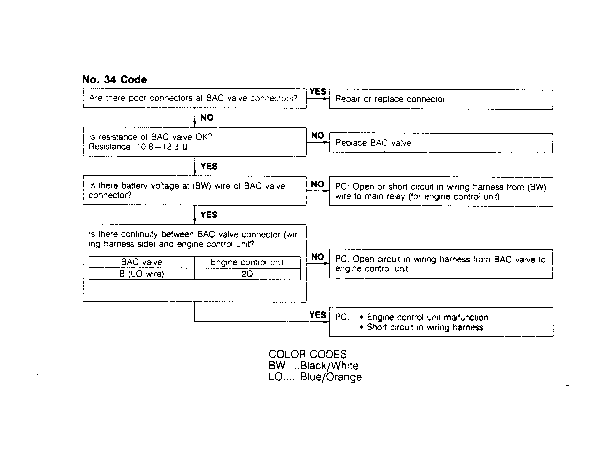

Fig 19: Code No.34 - Idle Speed Control Valve

G94824

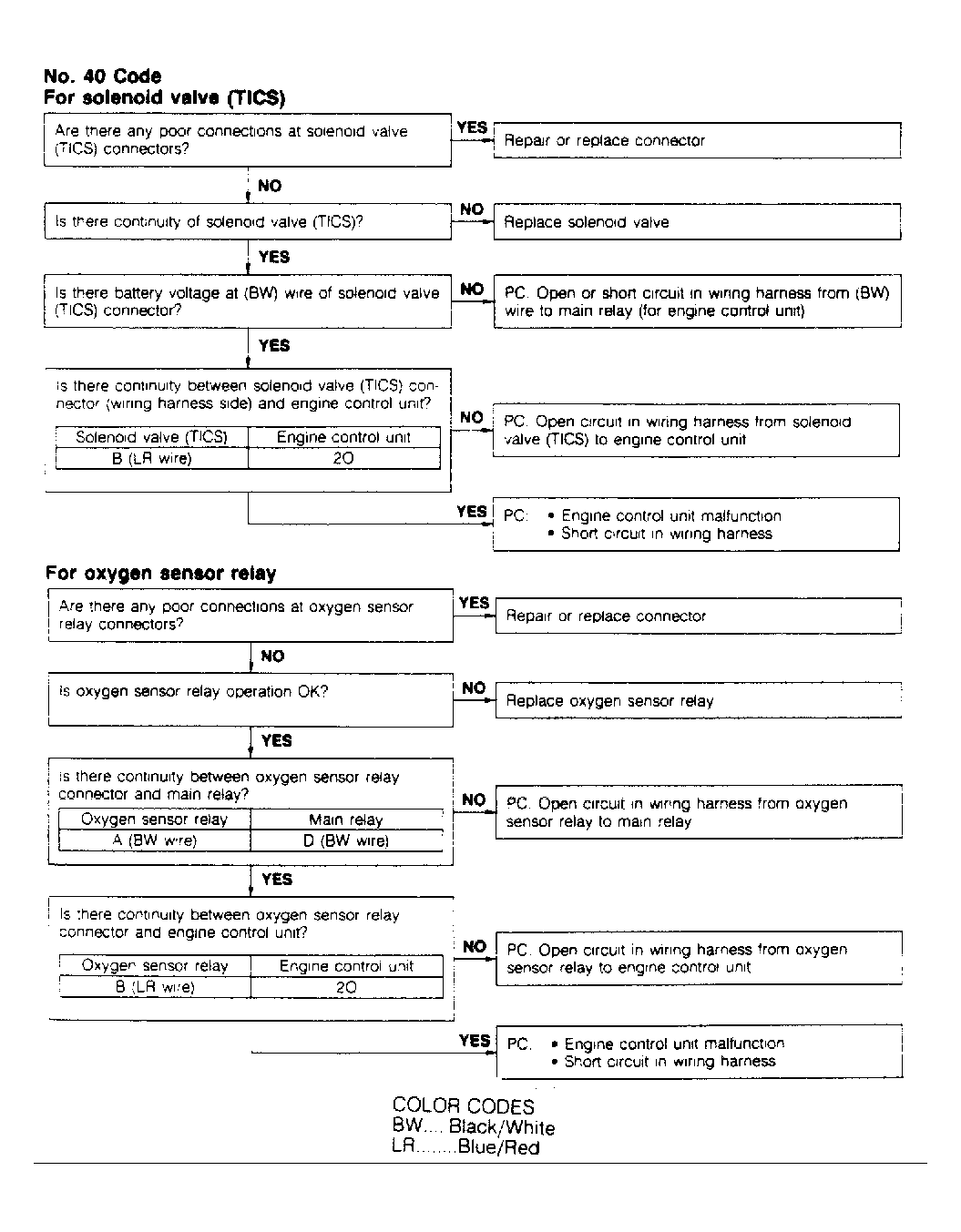

Fig 20: Code No.40 - Triple Induction Valve & Oxygen Sensor Relay

G94825

Fig 21: Code No.41 - Variable Resonance Induction Valve

G94826
