Non-Turbo Trouble Codes

Fig 1: Code No. 1 - Ignition Coil (Trailing Side)

G117676

Fig 2: Code No. 2 - Crank Angle Sensor (Ne Signal)

G117677

Fig 3: Code No. 3 - Crank Angle Sensor (G Signal)

G117678

Fig 4: Code No. 8 - Airflow Meter

G117679

Fig 5: Code No. 10 - Intake Air Thermosensor (AFM)

G117680

Fig 6: Code No. 11 - Intake Thermosensor (Engine)

G117681

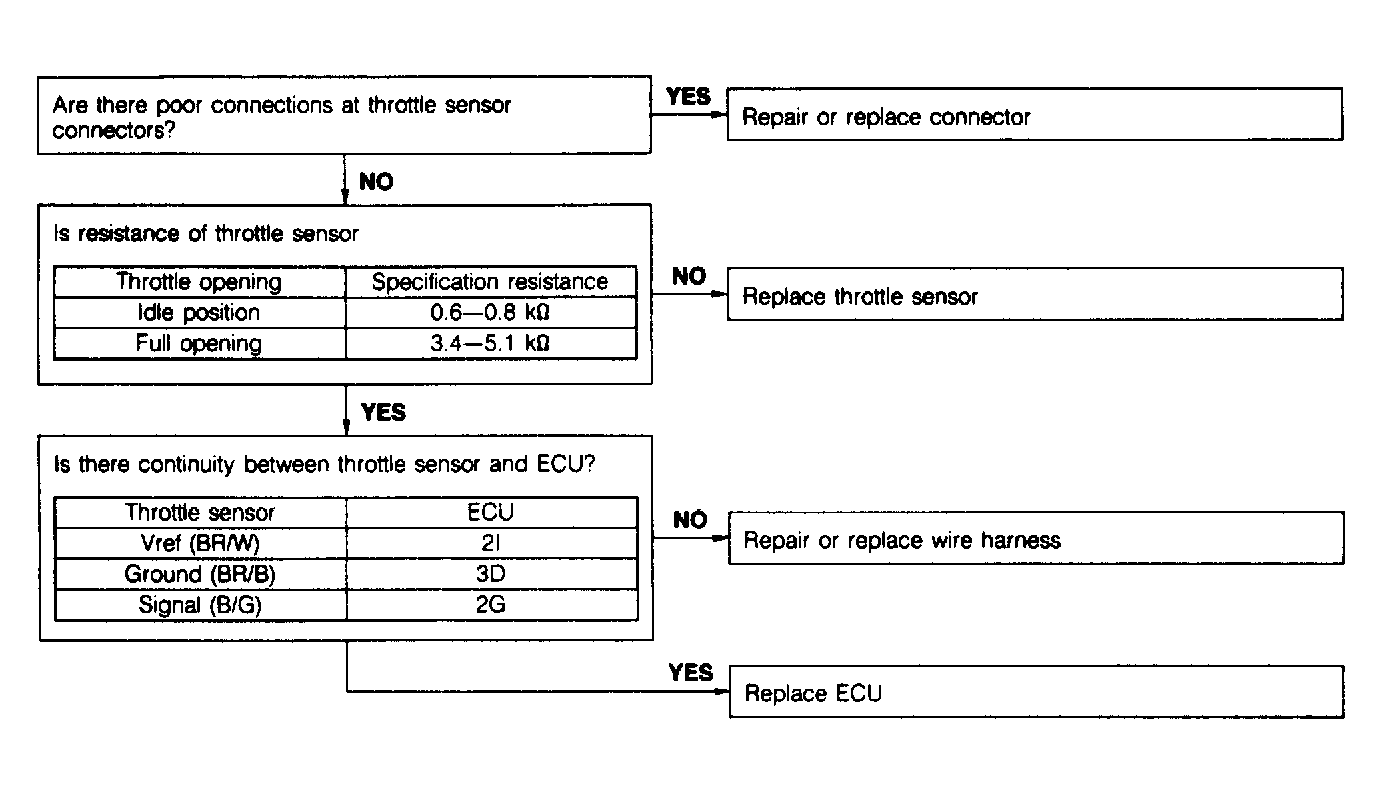

Fig 7: Code No. 12 - Throttle Sensor (Full Range)

G117682

Fig 8: Code No. 13 - Pressure Sensor

G117683

Fig 9: Code No. 14 - Atmospheric Pressure (ATP) Sensor

G117684

Fig 10: Code No. 15 - Oxygen Sensor

G117685

NOTE: When the code No. 15 and 17 are present at the same time, first perform the checking procedure for Code No. 17.

Fig 11: Code No. 17 - Feedback System

G117686

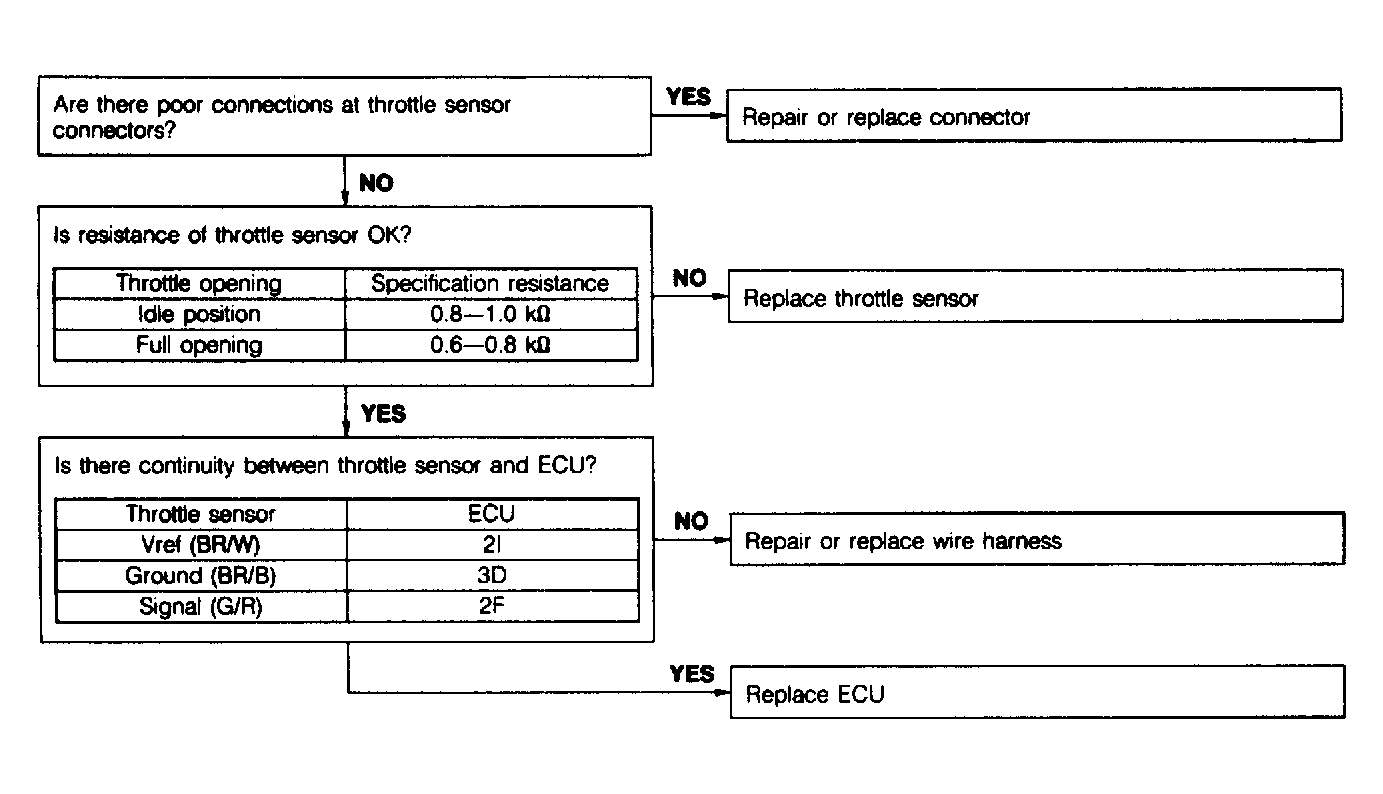

Fig 12: Code No. 18 - Throttle Sensor (Narrow Range)

G117687

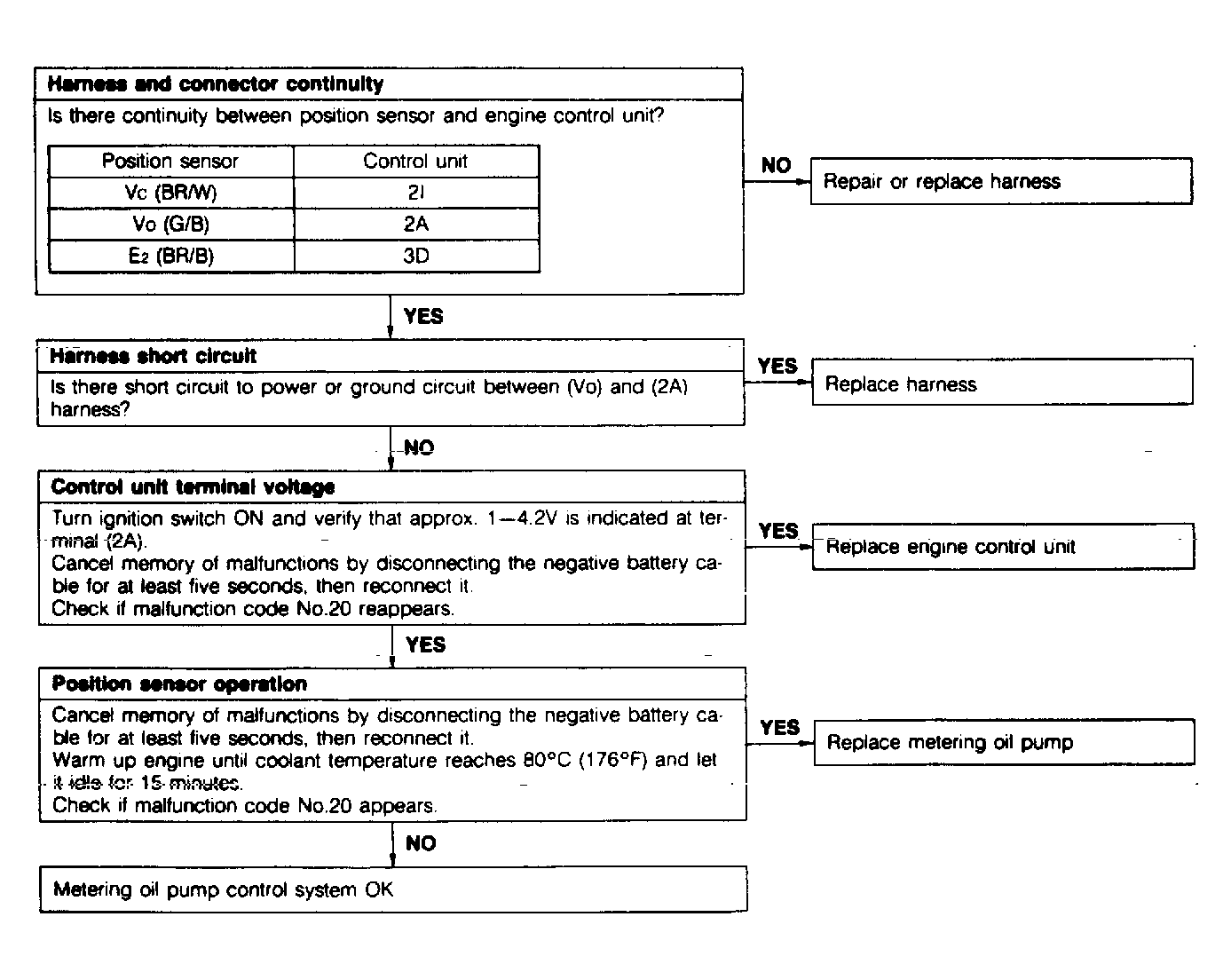

Fig 13: Code No. 20 - Metering Oil Pump Position Sensor

G117688

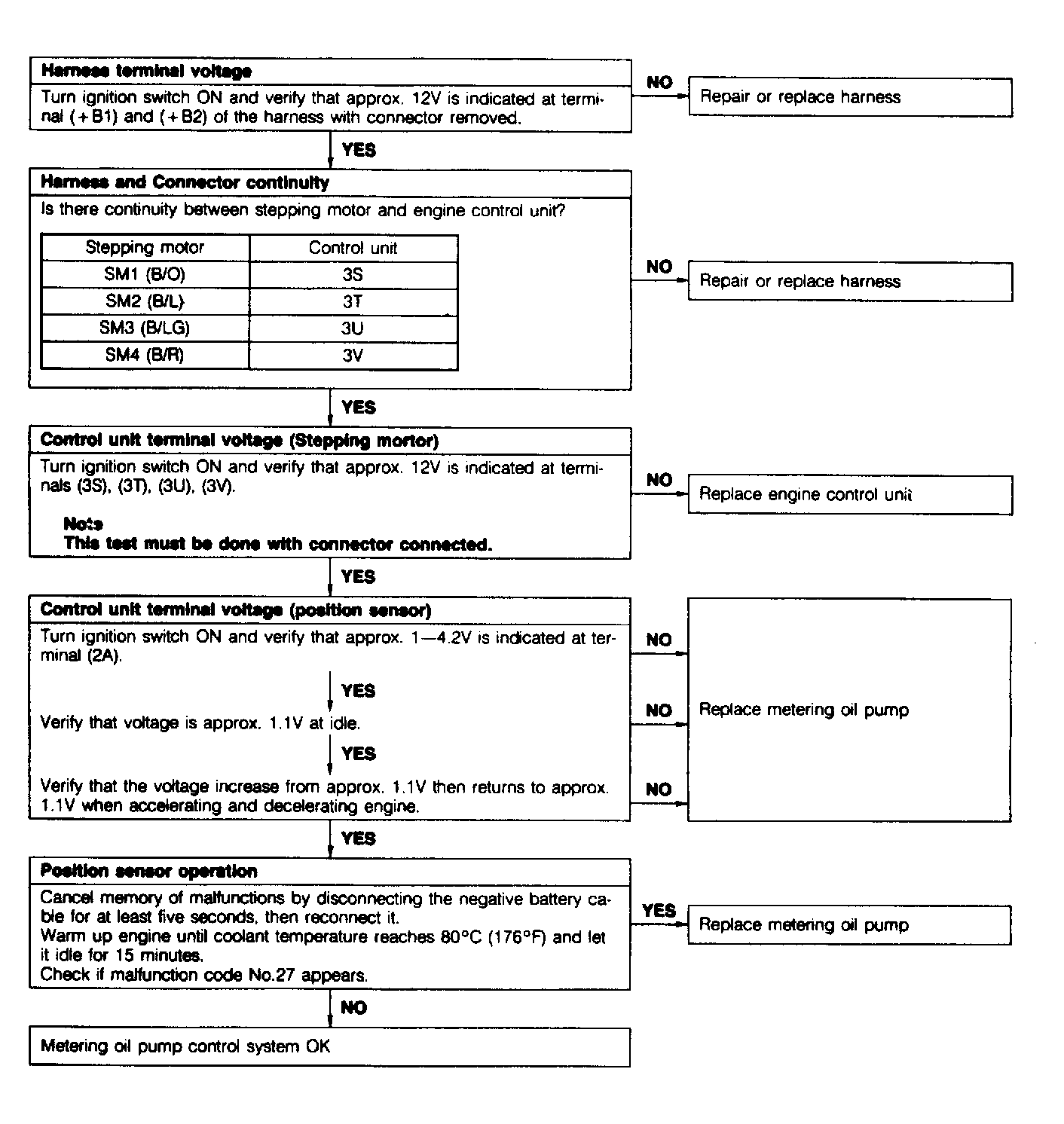

Fig 14: Code No. 27 - Metering Oil Pump

G117689

Fig 15: Code No. 25 - Solenoid Valve (PRC)

G117690

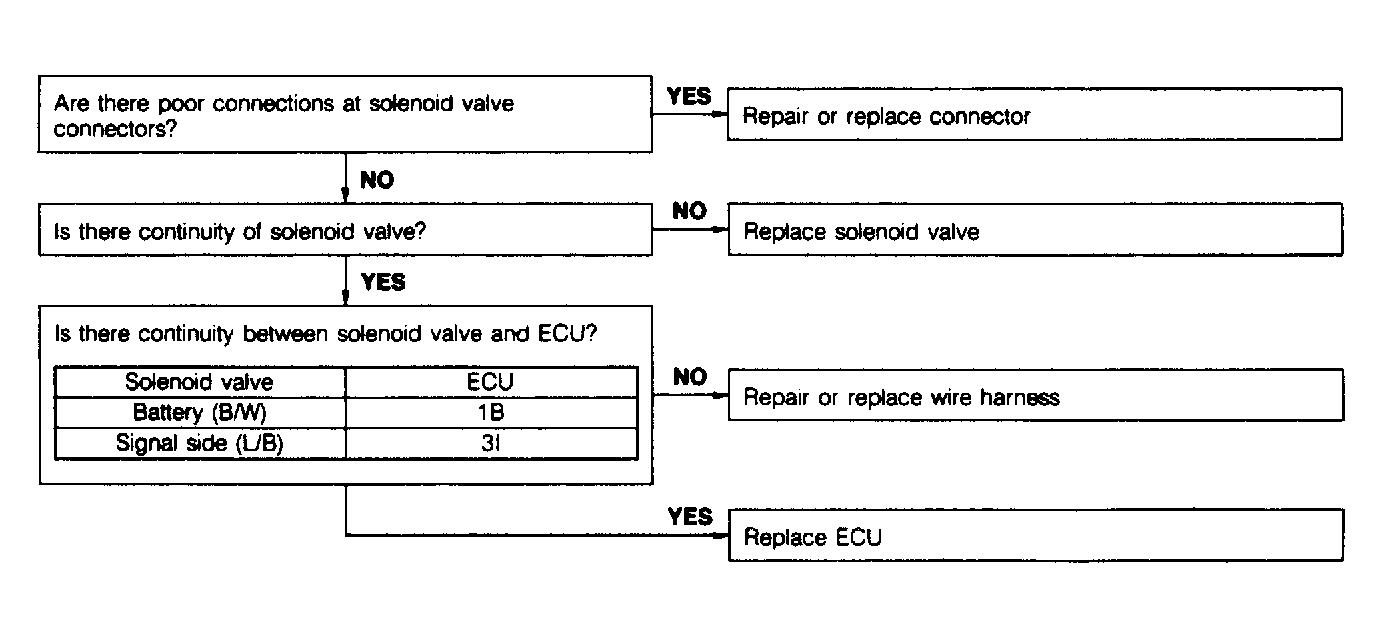

Fig 16: Code No. 30 - Split Air Solenoid Valve

G117691

Fig 17: Code No. 31 - Solenoid Valve (Relief)

G117692

Fig 18: Code No. 32 - Solenoid Valve (Switch)

G117693

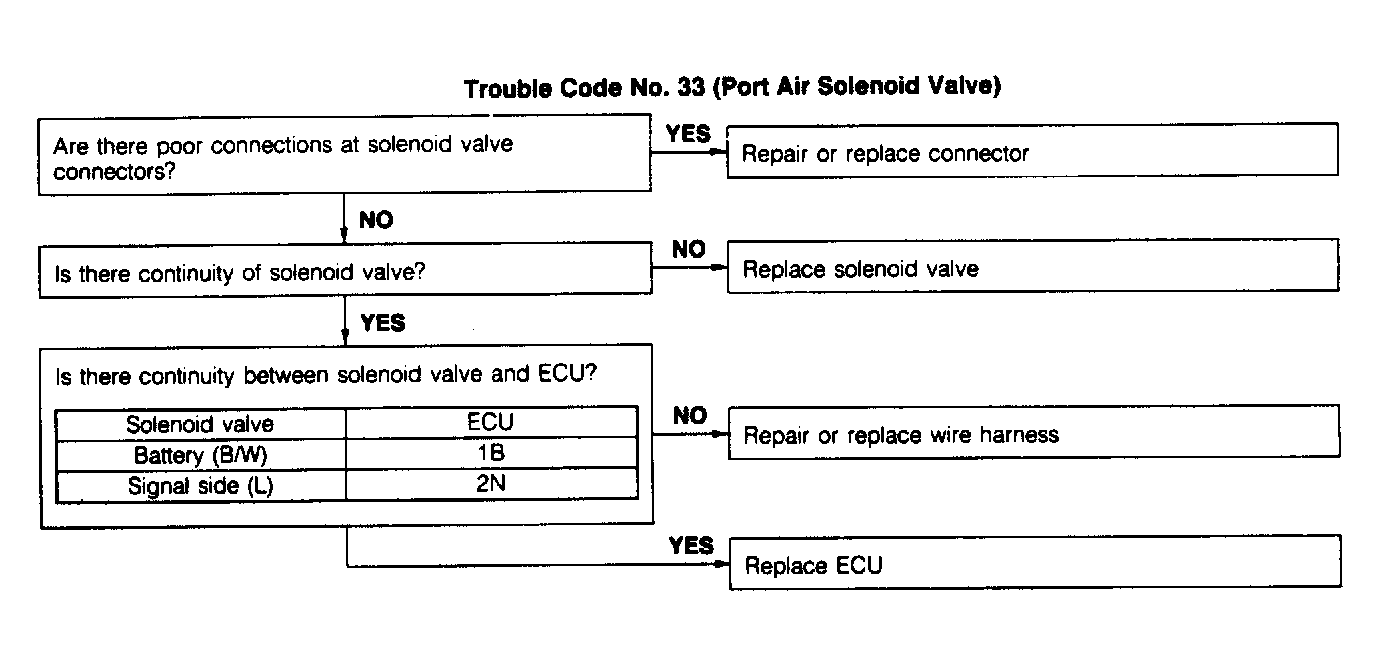

Fig 19: Code No. 33 - Port Air Solenoid Valve

G117694

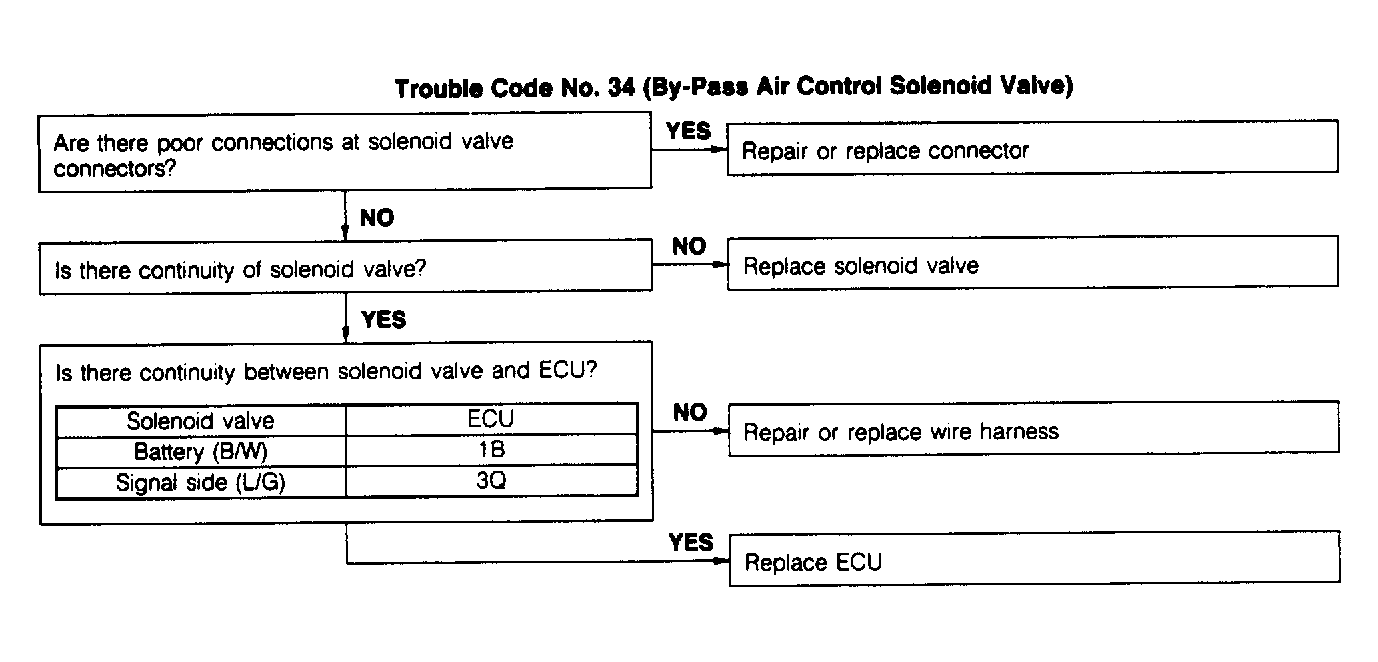

Fig 20: Code No. 34 - Solenoid Valve (BAC)

G117695

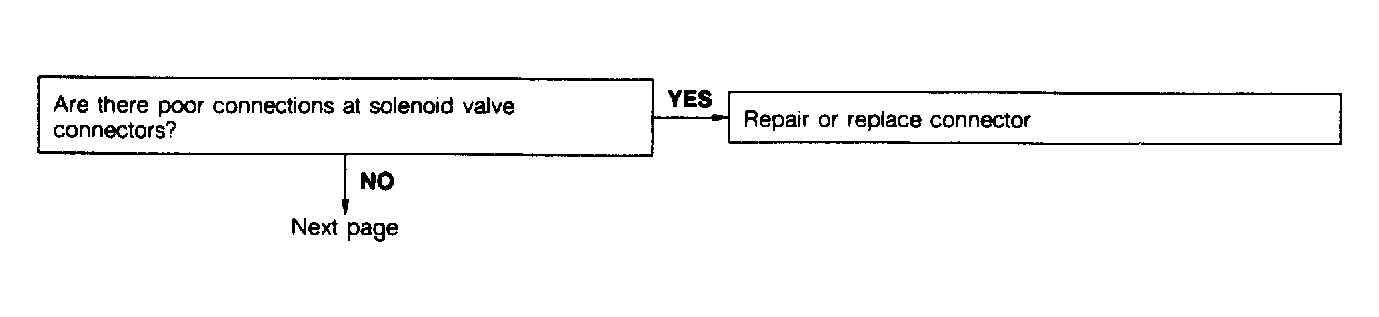

Fig 21: Code No. 38 - Solenoid Valve (AWS) (1 of 2)

G117696

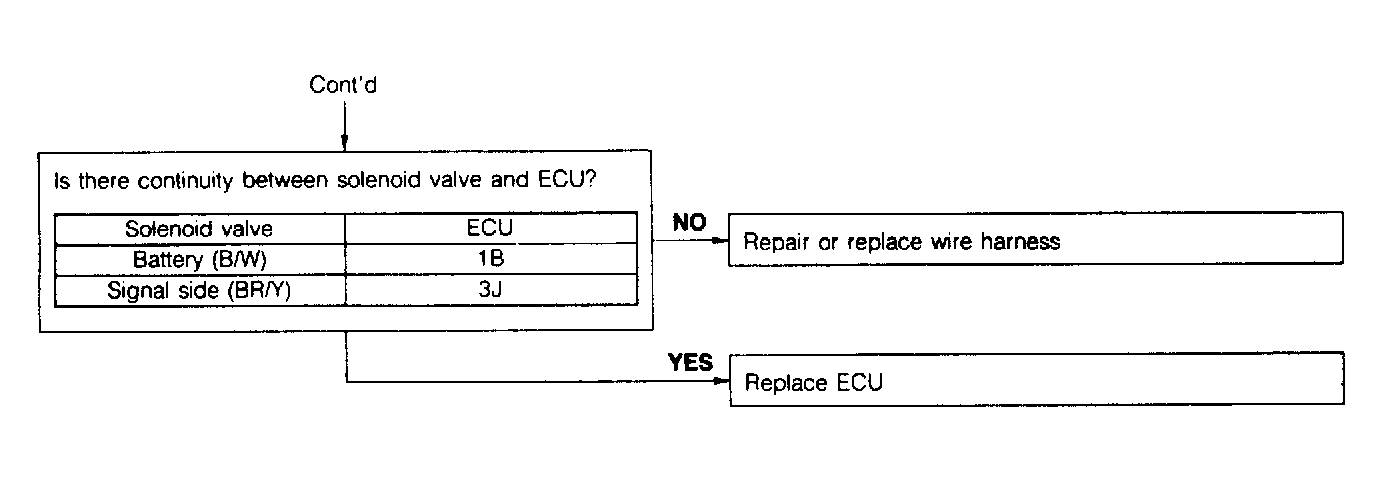

Fig 22: Code No. 38 - Solenoid Valve (AWS) (2 of 2)

G117697

Fig 23: Code No. 40 - Auxiliary Port Valve

G117698

Fig 24: Code No. 41 - Variable Dynamic Effect Intake

G117699

Fig 25: Code No. 51 - Fuel Pump Resistor Relay

G117700

Fig 26: Code No. 71 - Injector (Front Secondary)

G117701

Fig 27: Code No. 73 - Injector (Rear Secondary)

G117702
