Main Switch Test

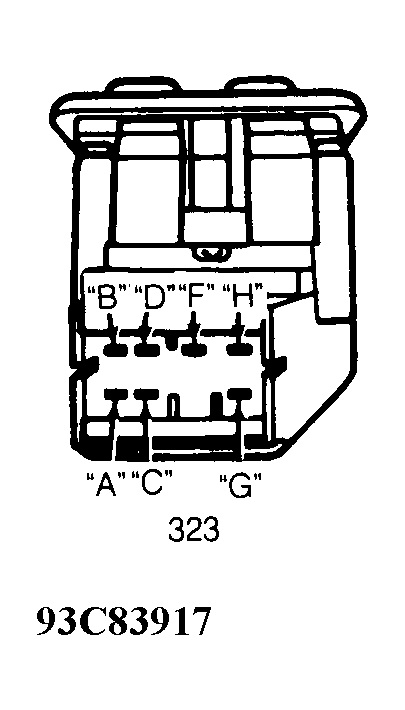

Check continuity across specified terminals of main switch connector with switch button held in specified position. See MAIN SWITCH CONTINUITY TEST table. See Fig 1 . Replace main switch if continuity is not as specified.
MAIN SWITCH CONTINUITY TEST
| Switch Position | Terminals | |
|---|---|---|
| Driver | ||
| UP | C & H; D & F | |
| Off (Neutral) | C, D & F | |
| DOWN | F & H; C & D | |
| Passenger | ||
| UP | A & F; B & D | |
| Off (Neutral) | B & D; E & F | |
| DOWN | A & B; E & F | |
