Cooling Fan Motor Table Test

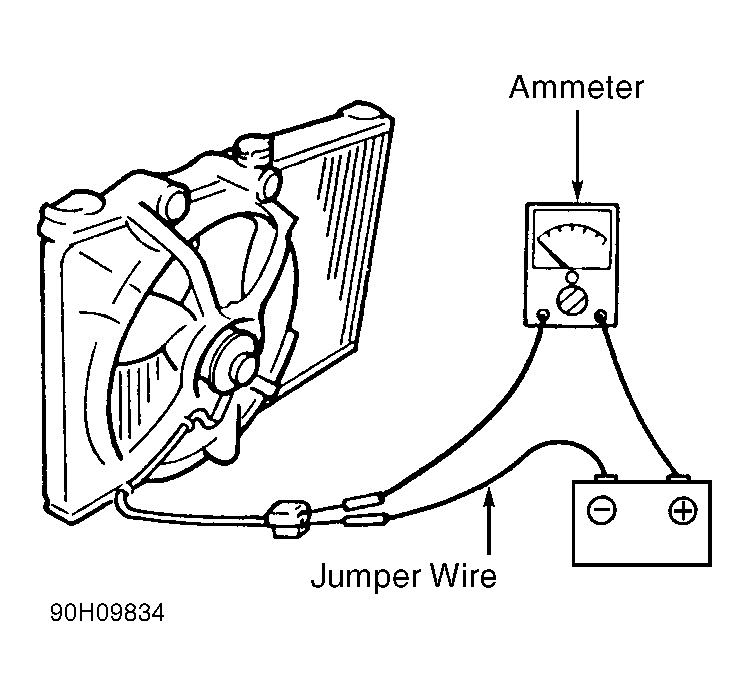

- Ensure battery is fully charged. Disconnect fan motor connector. Connect ammeter between battery and cooling fan motor connector. See Fig 1 .
- Ensure fan motor operates smoothly at specified current. Check current draw against COOLING FAN MOTOR CURRENT SPECIFICATIONS table. If fan draws more than specified amperage, check wiring. If wiring is okay, replace fan.
COOLING FAN MOTOR CURRENT SPECIFICATIONS
| Engine | Amp. | |
|---|---|---|
| MX-6 & 626 | ||
| Non-Turbo A/T | 8.0-11.0 | |
| Non-Turbo M/T | 5.6-7.6 | |
| Turbo A/T | 10.6-16.6 | |
| Turbo M/T | 5.6-7.6 | |
