Cooling Fan Relay Test
Cooling Fan Relay Test

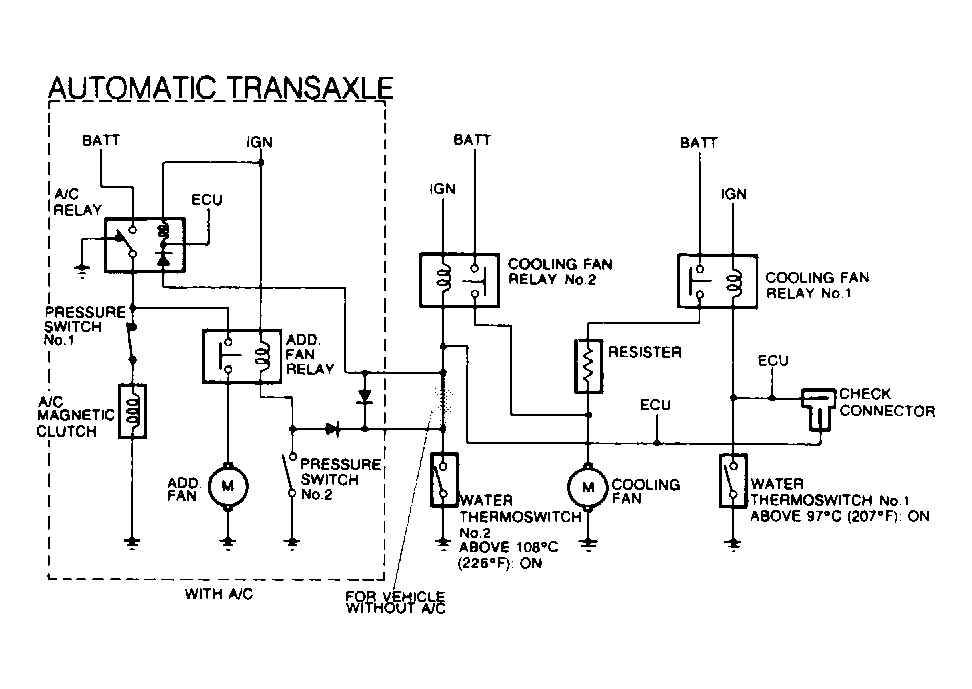

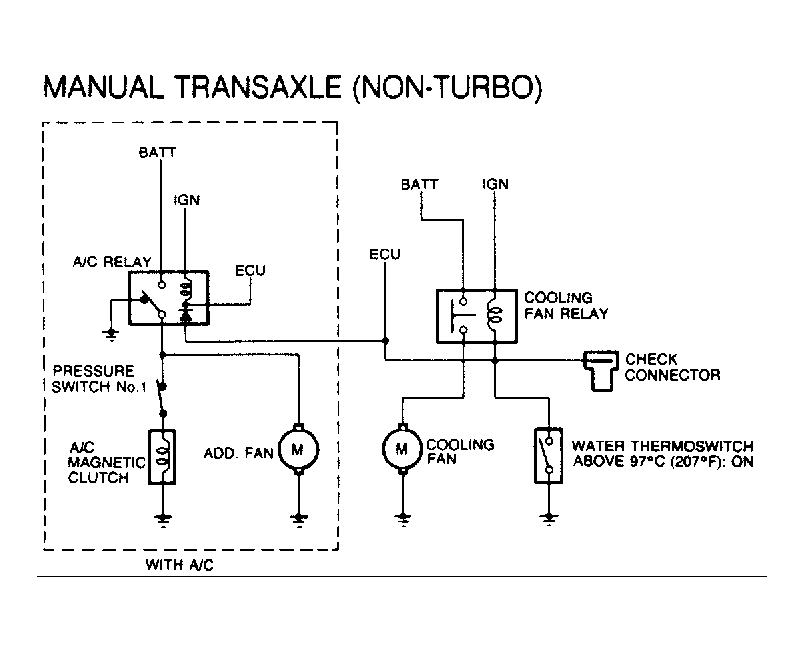

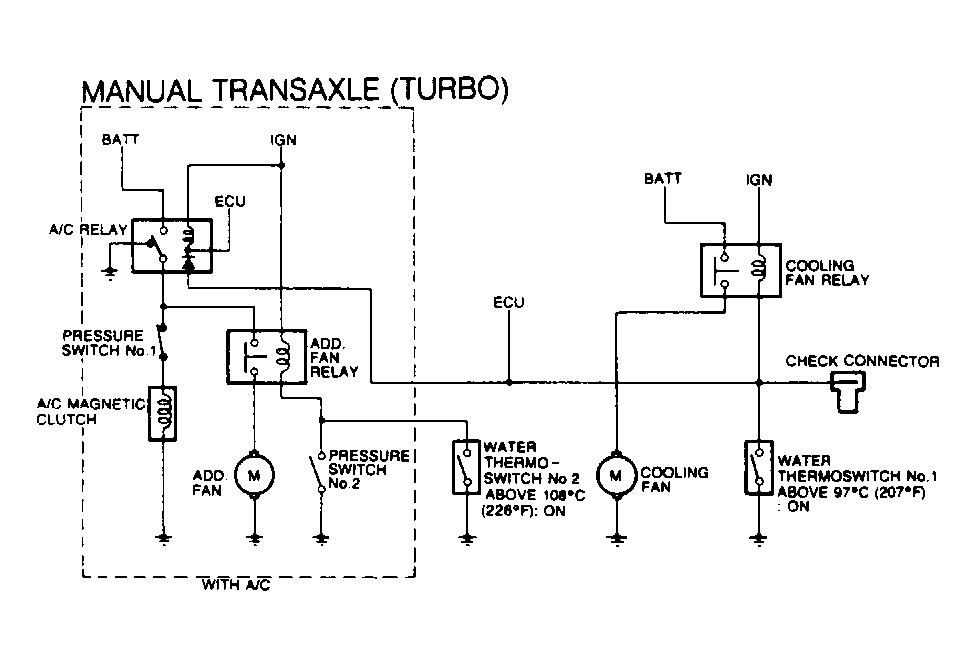

Testing not available from manufacturer. See
Figure
,
Figure
or
Figure
.
