THERMO Switches Test

  1. Turn ignition to OFF position. Remove thermo switches from thermostat housing. See Fig 1 . Suspend switch in container filled with water and heat. See Fig 2 . Connect ohmmeter between terminal connector and switch base.

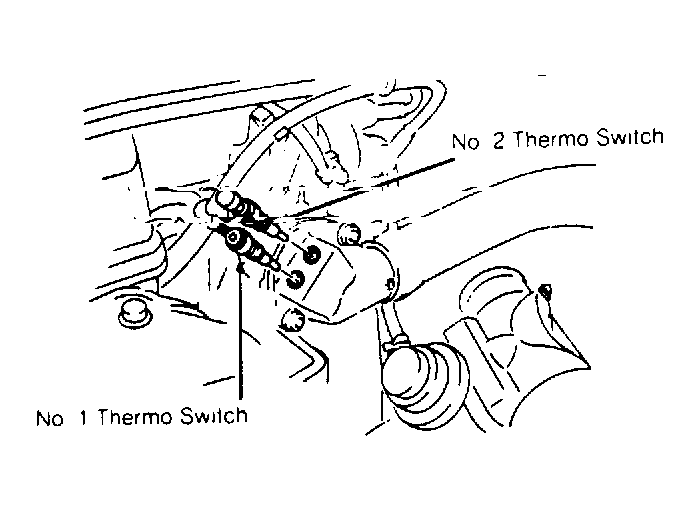

    Fig 1: Locating Thermo Switch
    G90C09836Courtesy of MAZDA MOTORS CORP.
    Fig 2: Testing Thermo Switch
    G90E09837Courtesy of MAZDA MOTORS CORP.
  2. Check for continuity of No. 1 thermo switch. Switch is normally open. Continuity should not exist until temperature reaches more than 207°F (97°C).
  3. Check for continuity of No. 2 thermo switch. Switch is normally open. Continuity should not exist until temperature reaches more than 207°F (97°C).
