Engine Controls - Tests W/Codes
>>
DOHC Code Identification Charts
>>
Code 41: DOHC Variable Resonance Induction System
Code 41: DOHC Variable Resonance Induction System

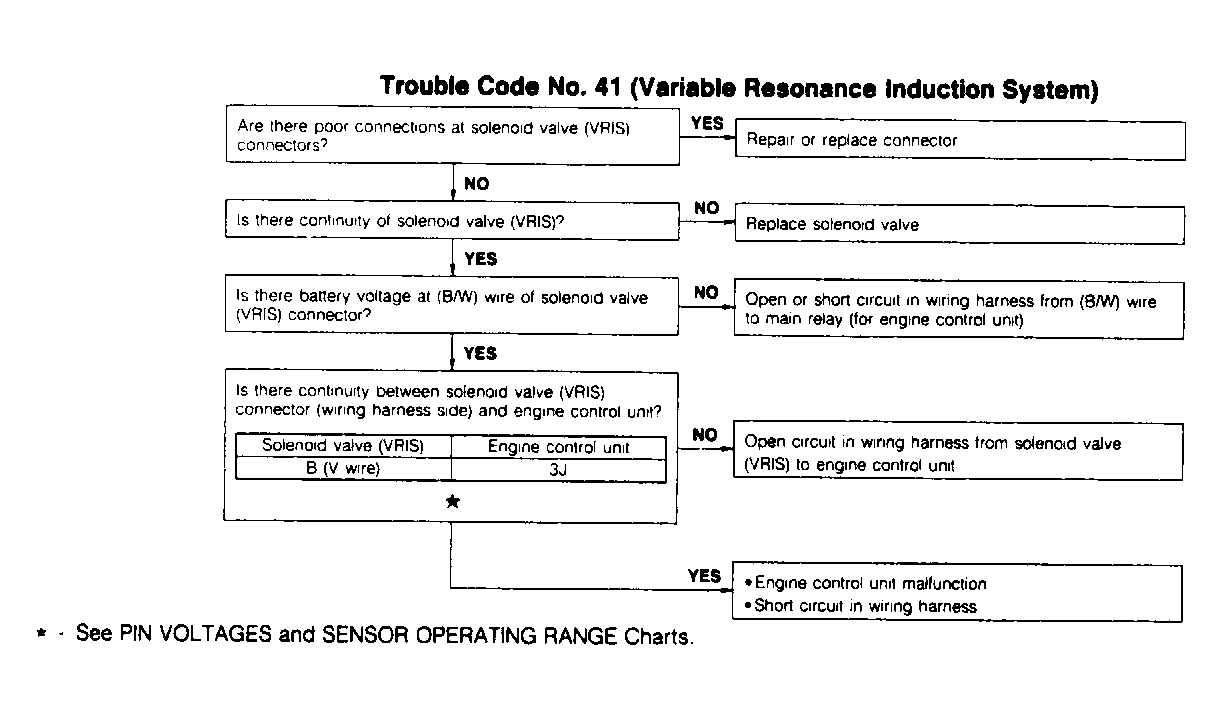

Fig 1: Code 41: Variable Resonance Induction System Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
