Home >> Mazda >> 1990 >> 929 Base >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> DOHC Code Identification Charts >> Code 8: DOHC Airflow Meter

Code 8: DOHC Airflow Meter

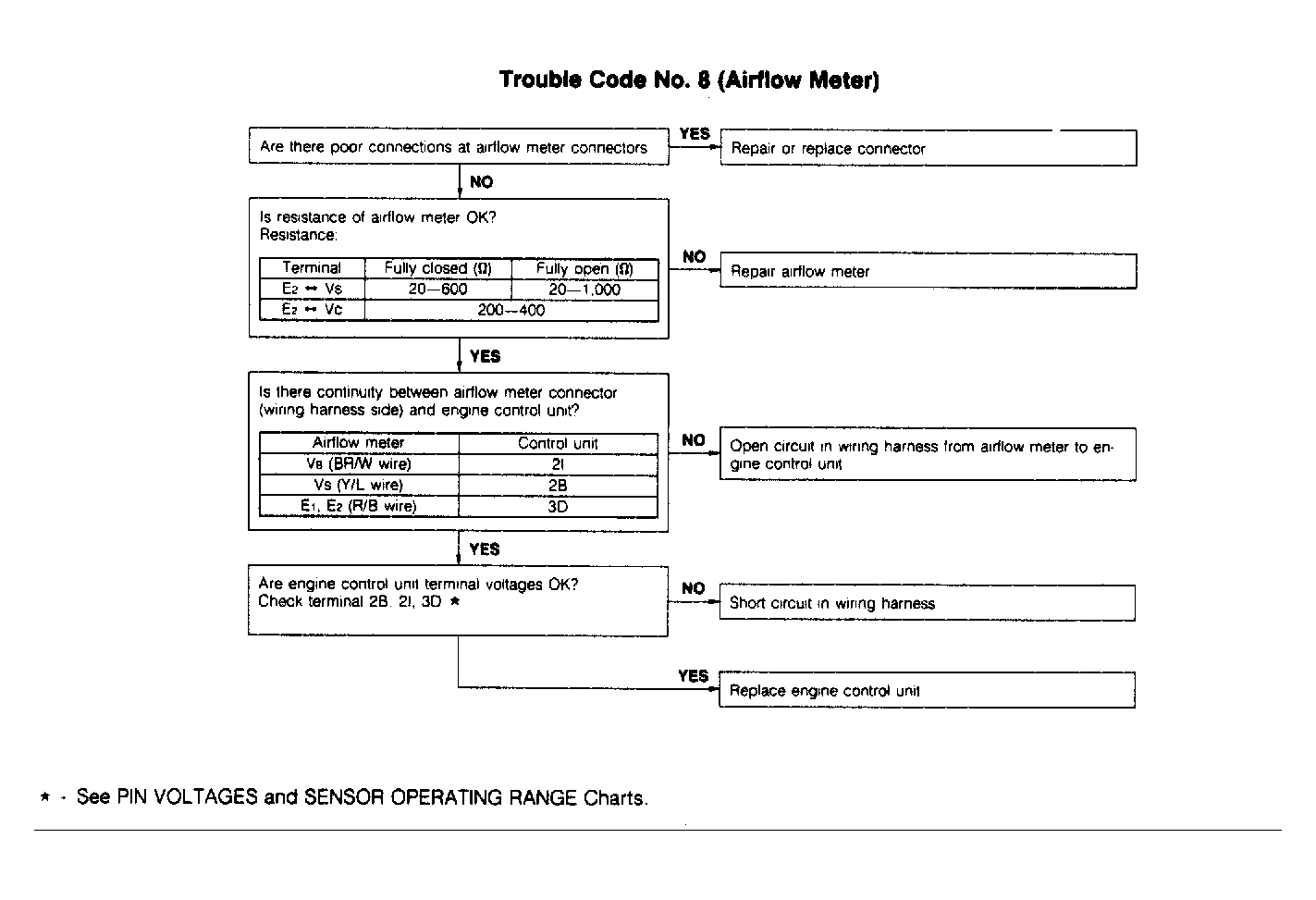

Fig 1: Code 8: Airflow Meter Flow Chart

G90H21557

Courtesy of MAZDA MOTORS CORP.
