Code 11: SOHC Intake Air THERMOSENSOR-Dynamic Chamber
Code 11: SOHC Intake Air THERMOSENSOR-Dynamic Chamber

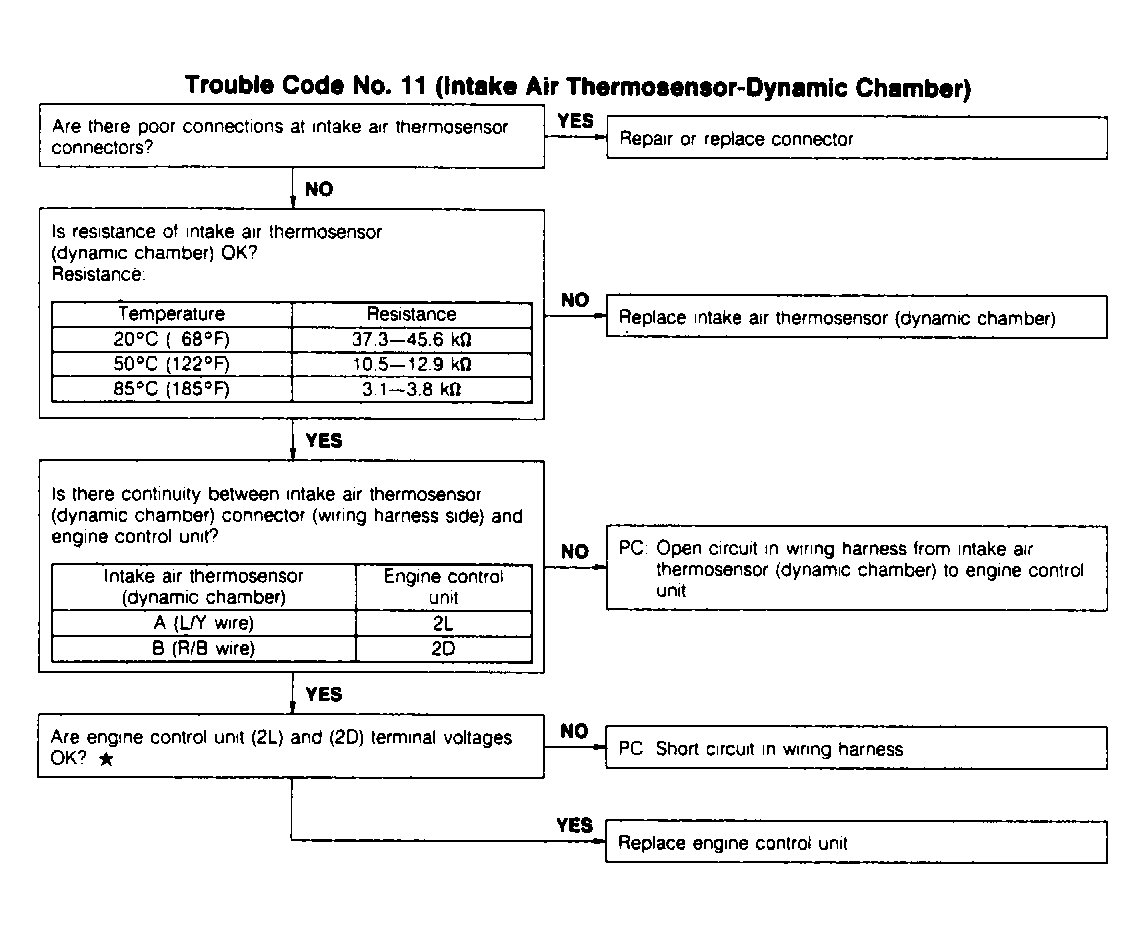

Fig 1: Code 11: Intake Air Thermosensor-Dynamic Chamber Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
