Ignition Timing

With engine at normal operating temperature, place in Neutral (M/T) or Park (A/T). Disconnect and plug vacuum advance hoses (if equipped).
On all except carbureted B2200, connect jumper wire between timing test connector and ground. See Fig 1 . Ensure idle speed is correct. Connect timing light and set timing as required. See PISTON ENGINE IGNITION TIMING SPECIFICATIONS table. See Fig 2 .

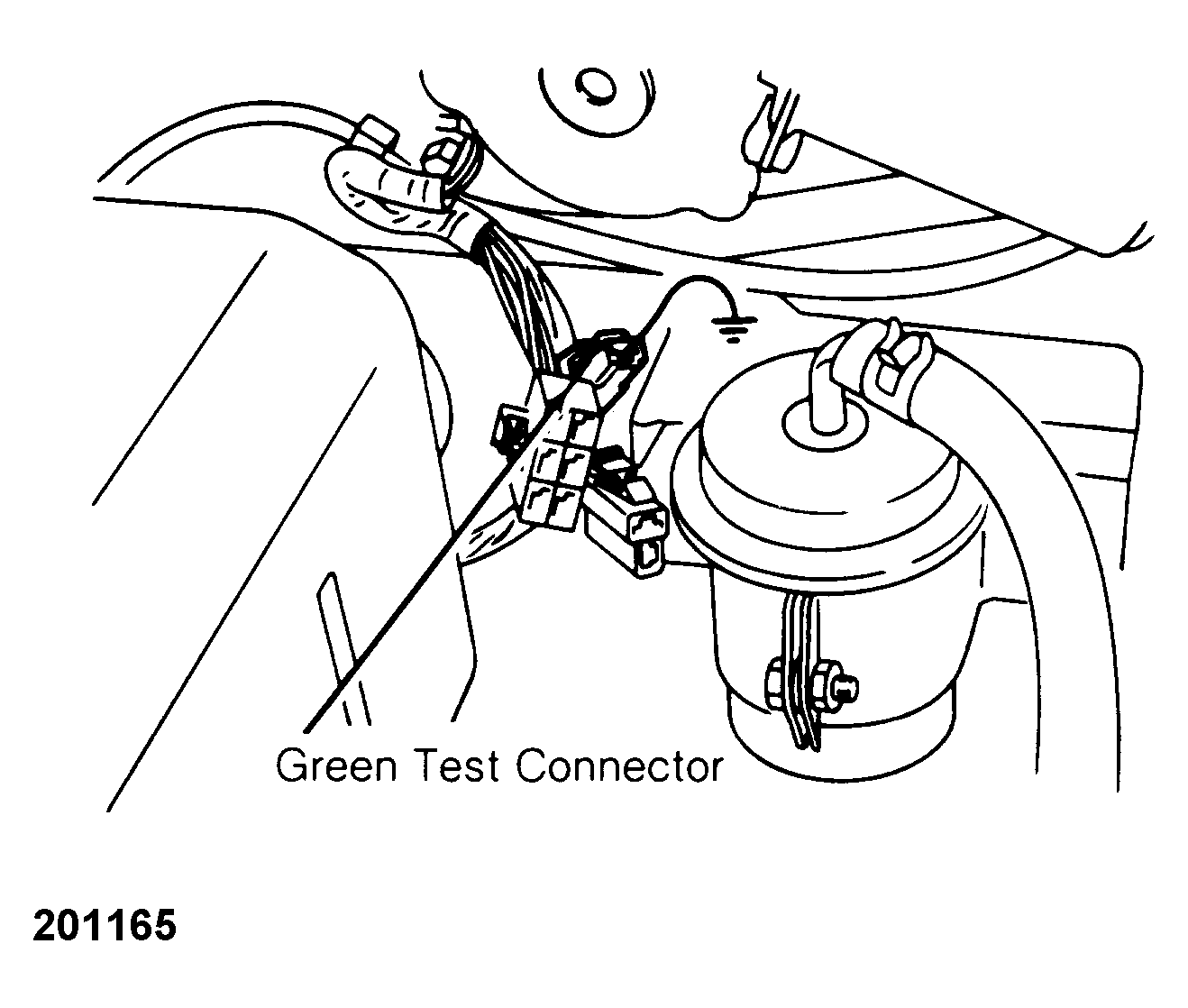

Fig 1: Locating Ignition Timing Test Connector (B2200 & B2600i)

Courtesy of MAZDA MOTORS CORP.

PISTON ENGINE IGNITION TIMING

Application

Man. Trans.

⁽¹⁾ Auto. Trans.

B2200

Carbureted

6 @ 825

Fuel-Injected

6 @ 750

6 @ 770

B2600i

5 @ 750

5 @ 770

⁽¹⁾	Automatic transmission in "P".

Fig 2: Locating Typical Piston Engine Timing Marks

Courtesy of MAZDA MOTORS CORP.

NOTE: Mixture adjustment is NOT a normal tune-up procedure. DO NOT adjust mixture unless mixture control unit is replaced or vehicle fails emissions test.
