Home >> Mazda >> 1990 >> B2600i Base, 2D Pickup >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> B2200 Trouble Code Id Charts >> Notes

B2200 Trouble Code Id Charts: Notes

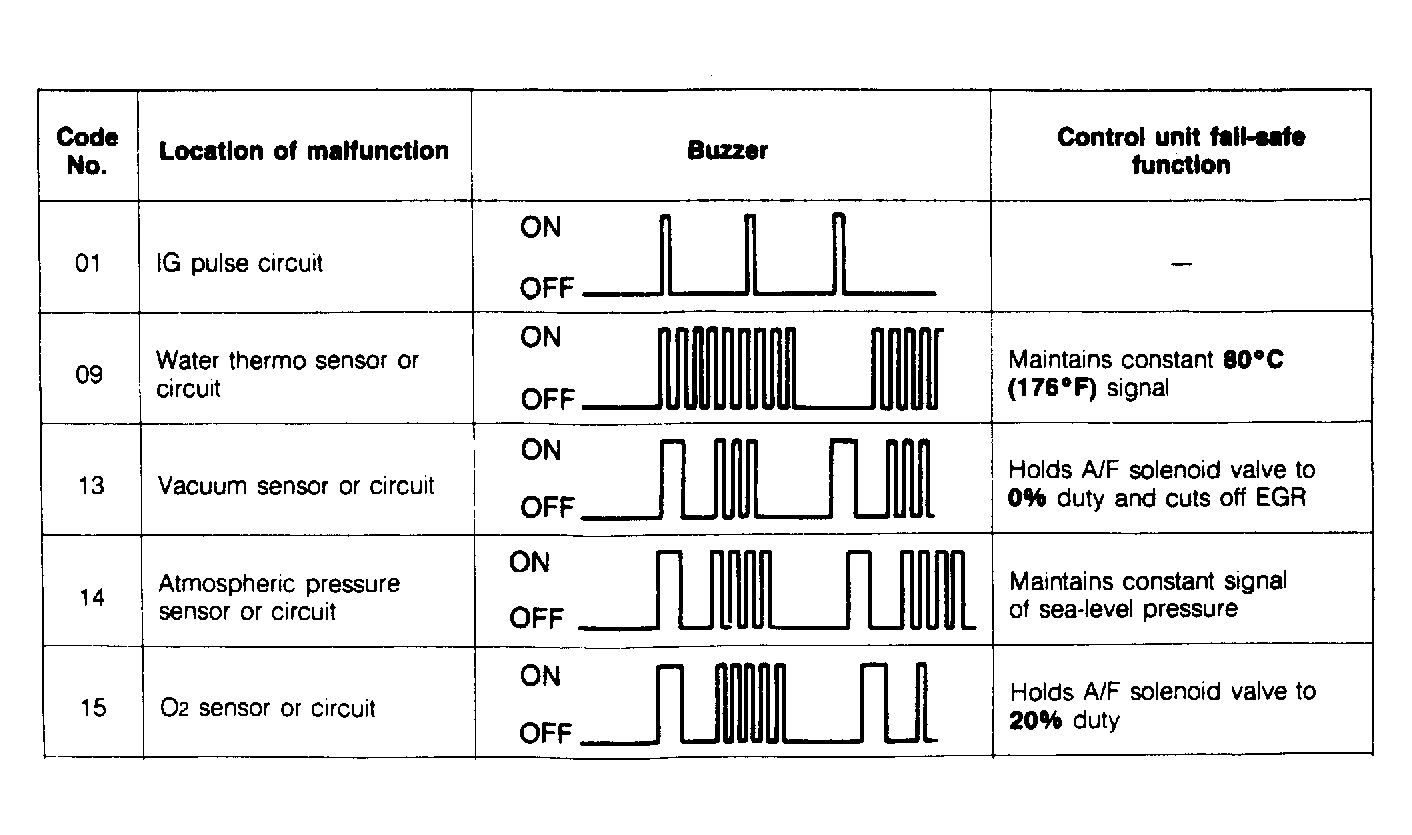

Fig 1: Codes 01 Thru 15 Identification
G117633Courtesy of MAZDA MOTORS CORP.
Fig 2: Codes 16 Thru 45 Identification
G117634Courtesy of MAZDA MOTORS CORP.
