Home >> Mazda >> 1990 >> MX-5 Miata Automatic >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Component Tests >> Power Windows Master Switch

Power Windows Master Switch

  1. Check for continuity between terminals of the switch with an ohmmeter as specified. See POWER WINDOWS MASTER SWITCH  under REMOVAL & INSTALLATION. See Fig 1 .
  2. If continuity is not as specified, replace the switch.

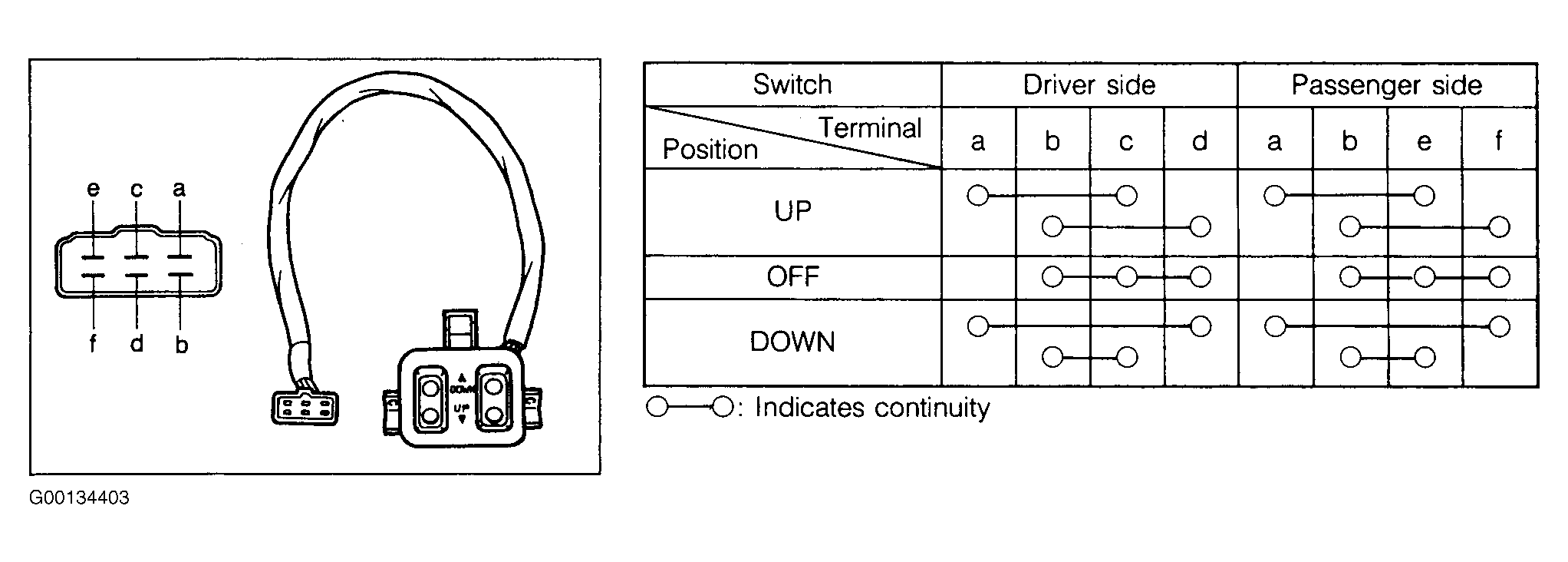

Fig 1: Testing Power Windows Master Switch
G00134403Courtesy of MAZDA MOTORS CORP.
