Power Window Motor

CAUTION: Do not put your hand inside the door while testing.

Disconnect the connector of the power window motor. Then check that the window raises and lowers when battery voltage is applied directly to the motor connector. See Fig 1. Replace motor if operation is not normal.

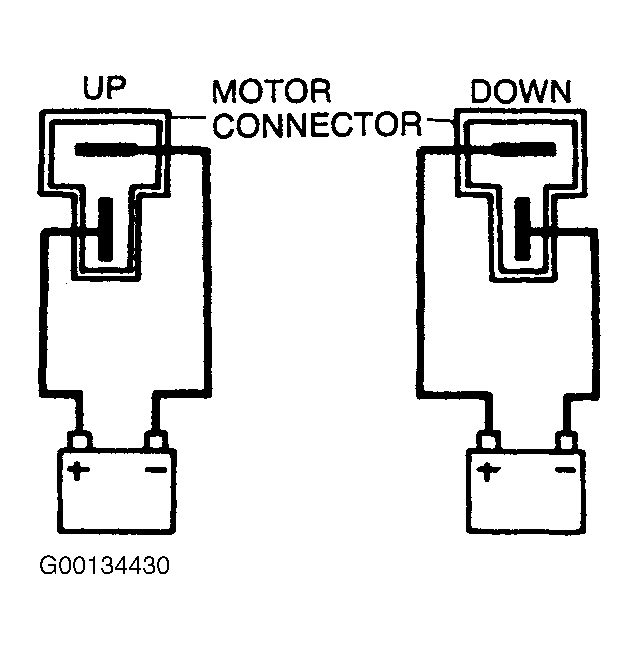

Fig 1: Testing Power Window Motor
G00134430Courtesy of MAZDA MOTORS CORP.
