Home >> Mazda >> 1990 >> RX-7 Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Connector Identification

Connector Identification

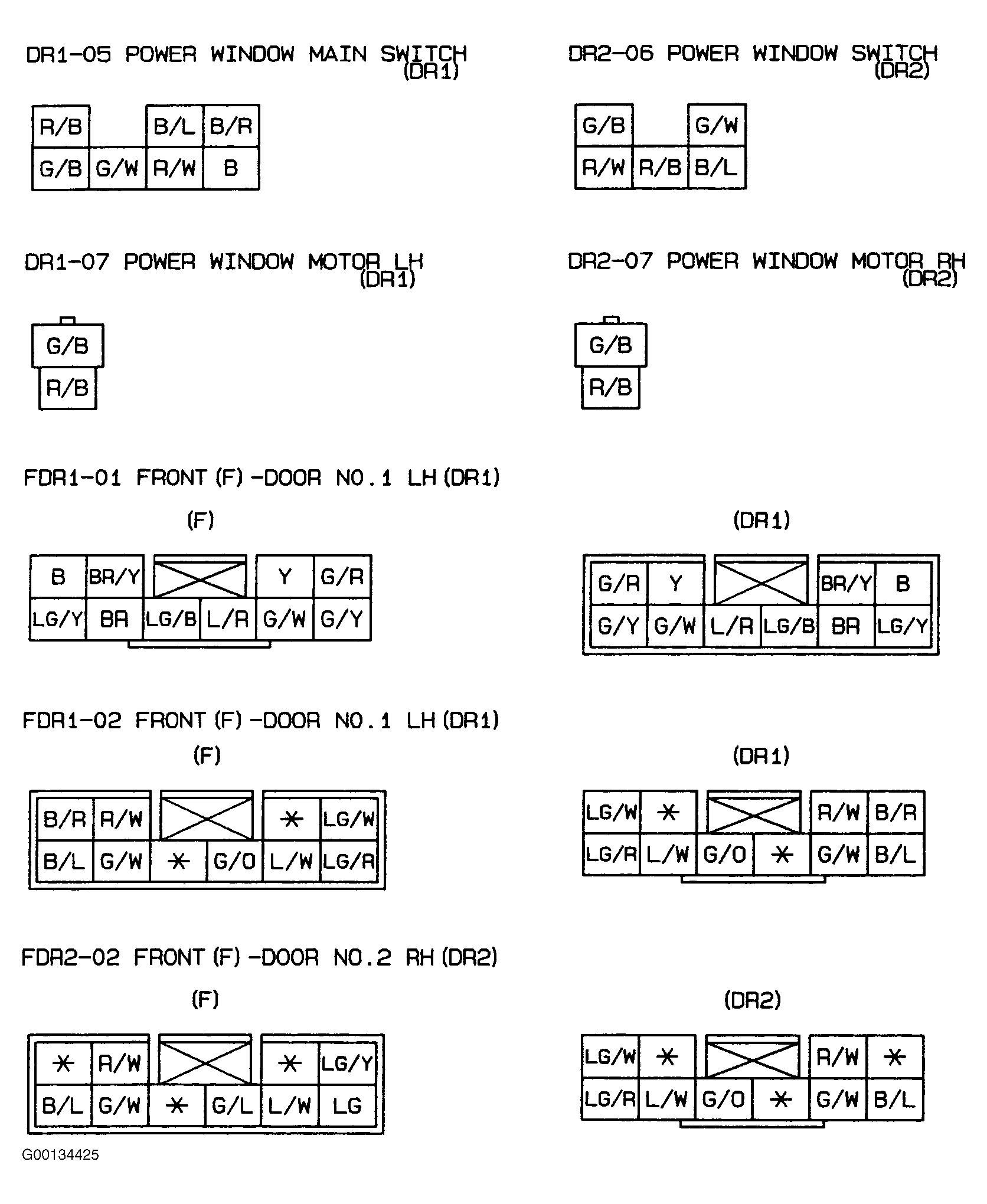

Fig 1: Identifying Power Window System Connectors & Terminals

G00134425

Courtesy of MAZDA
