Circuit Protection Devices
Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
Component
Location
Fuse Block

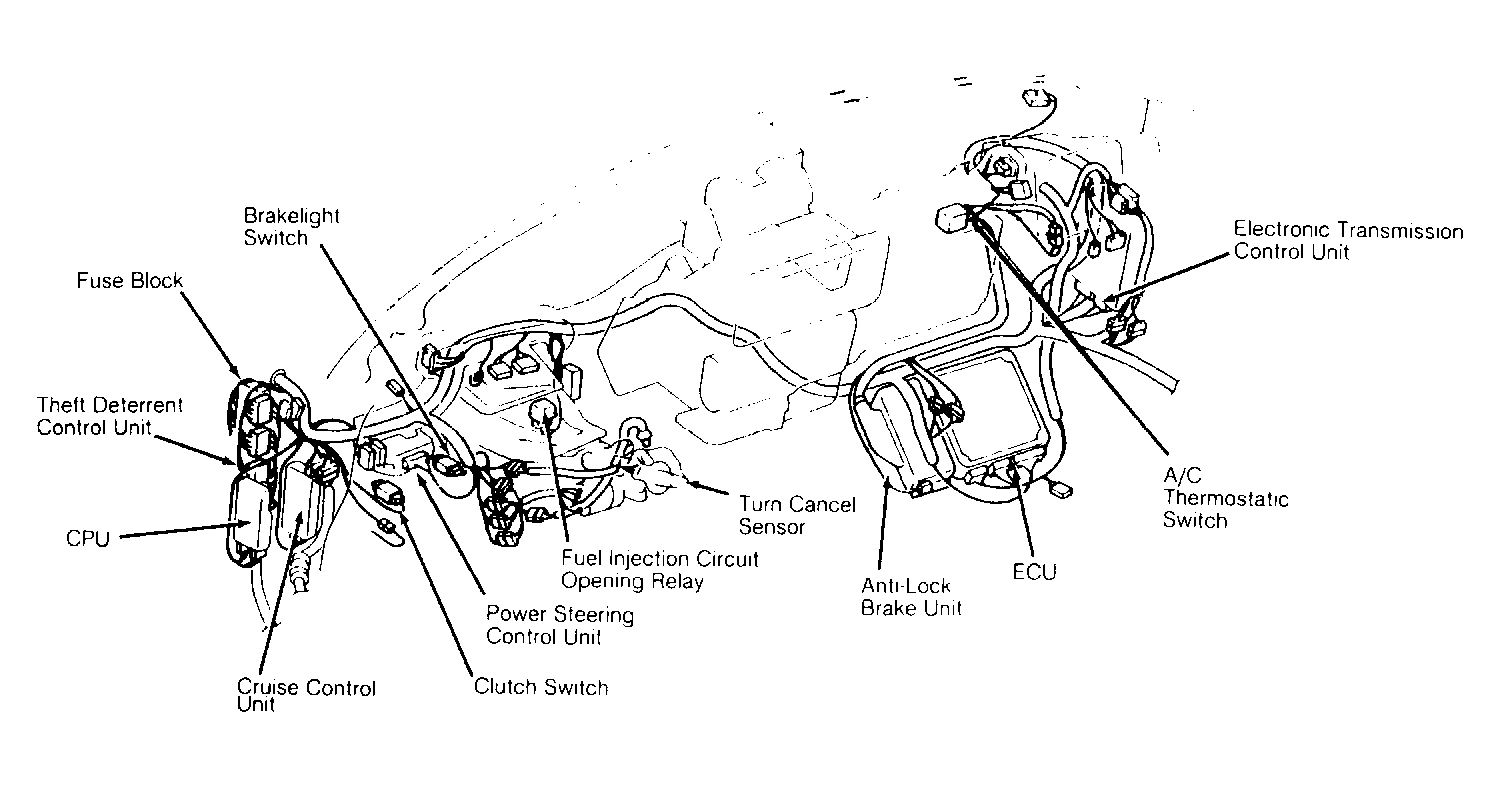

Behind left front kick panel. See
Figure
.
Main Fuse Block

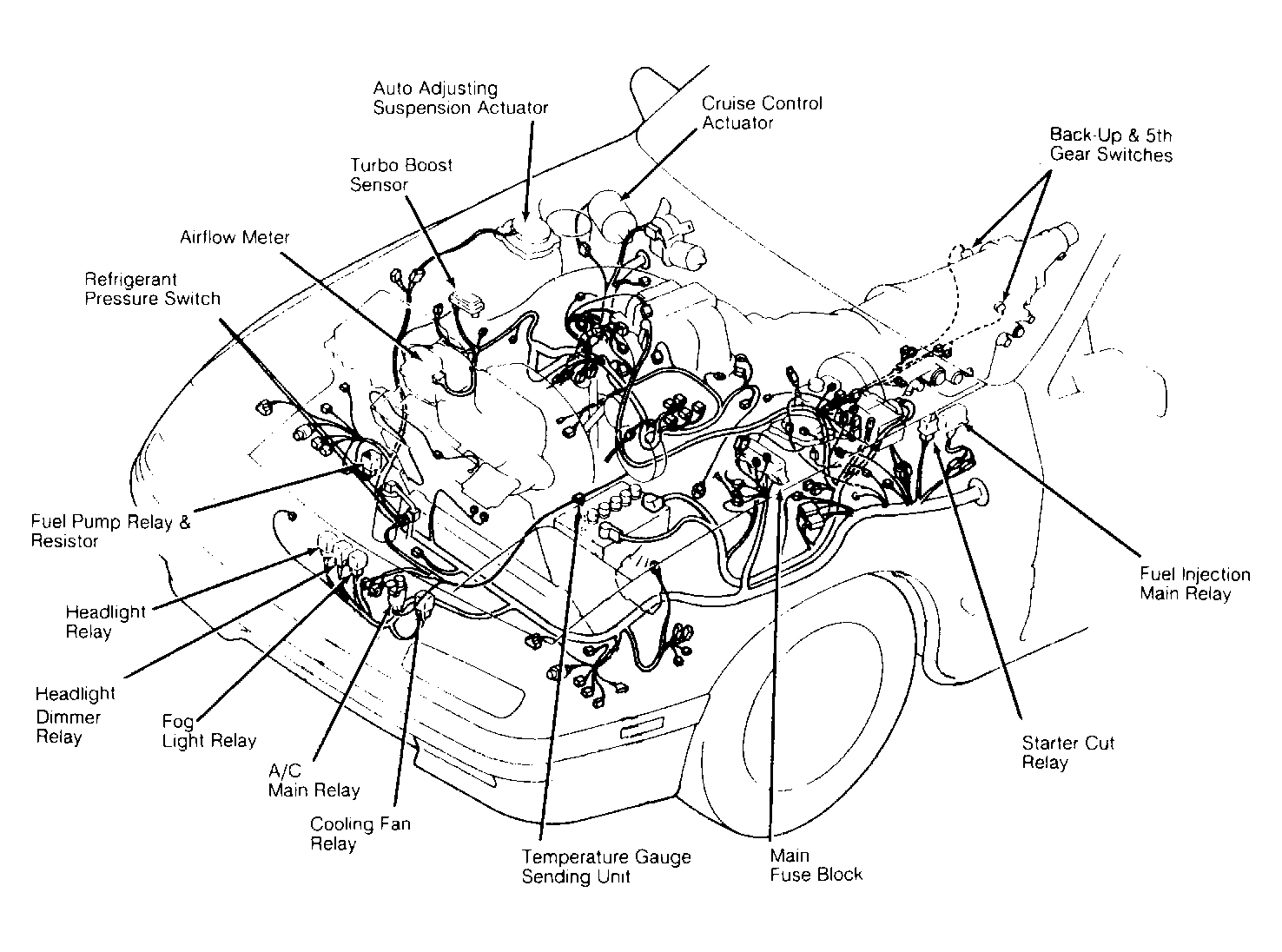

In front of left shock tower. See
Figure
.
