Code 2: Ne Signal-Crank Angle Sensor

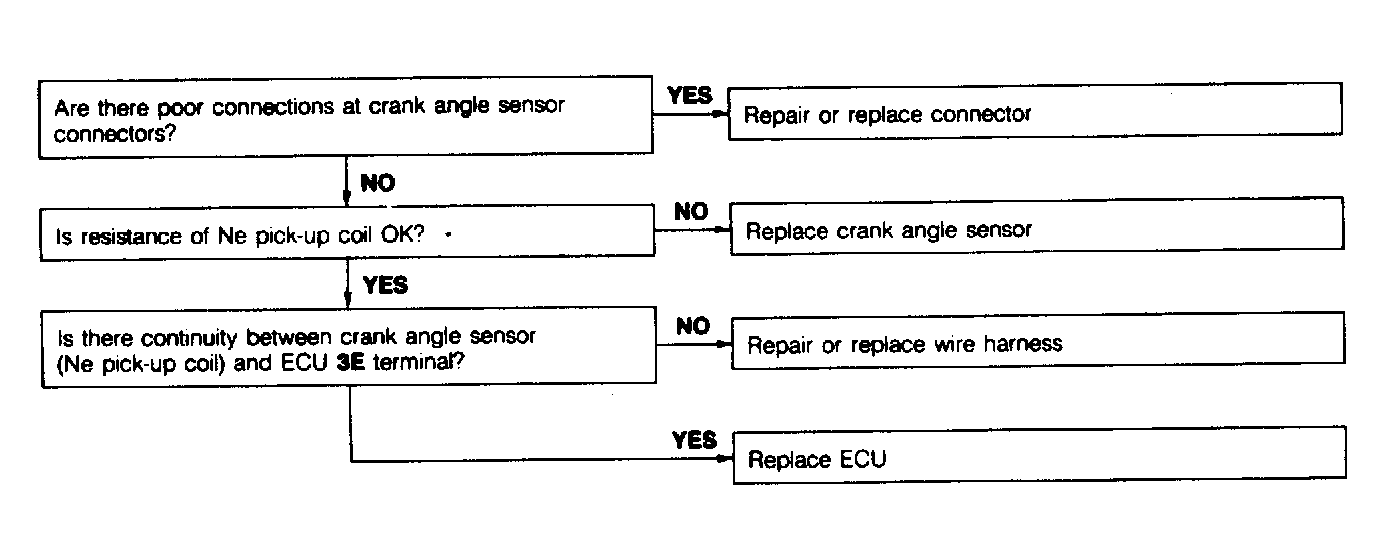

Fig 1: Code 2: NE Signal-Crank Angle Sensor Flow Chart

G117677

Courtesy of MAZDA MOTORS CORP.
