Code 20: Metering Oil Pump Position Sensor

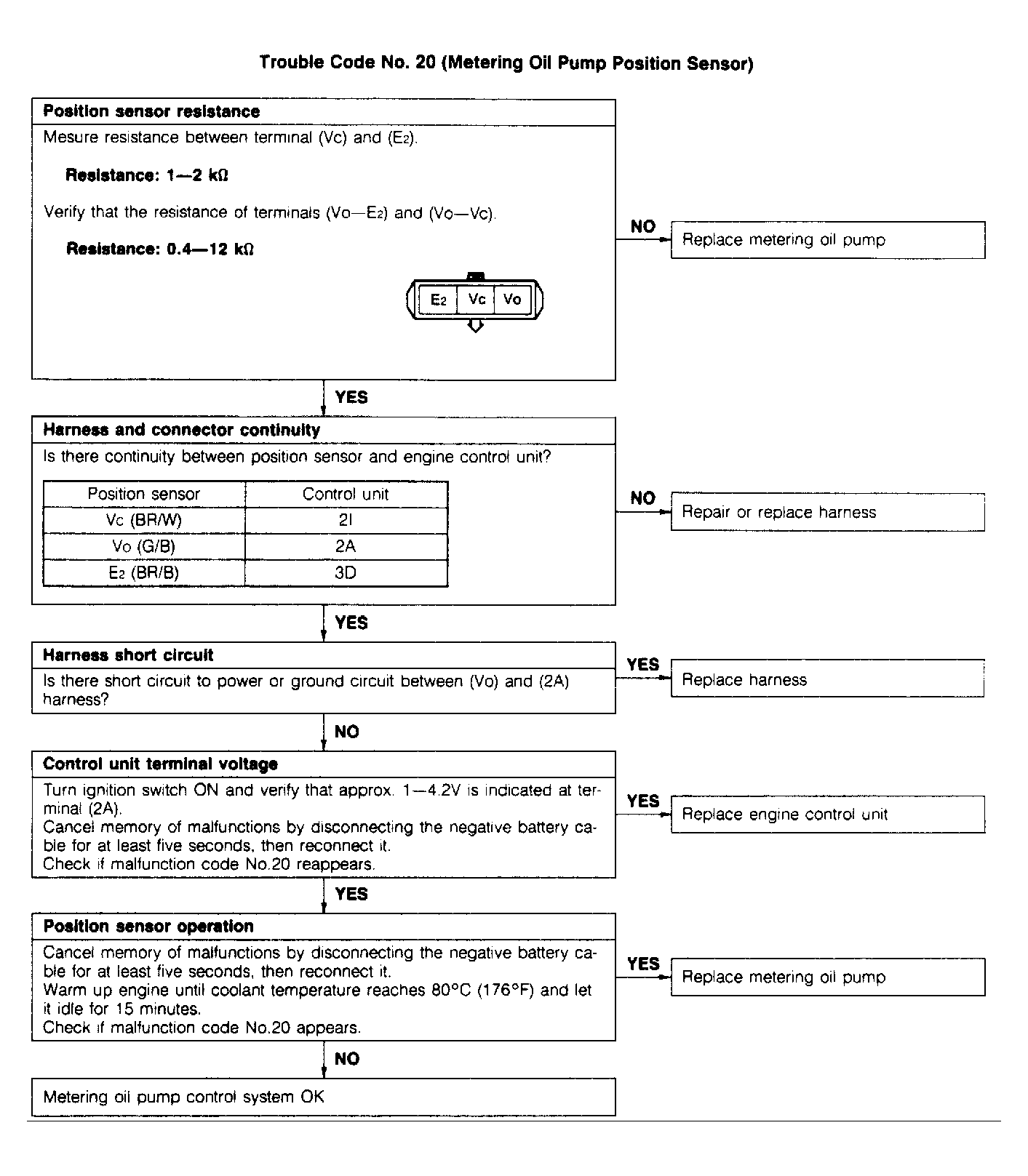

Fig 1: Code 20: Metering Oil Pump Position Sensor Flow Chart

G90D22049

Courtesy of MAZDA MOTORS CORP.
