Code 25: Pressure Regulator Control Solenoid

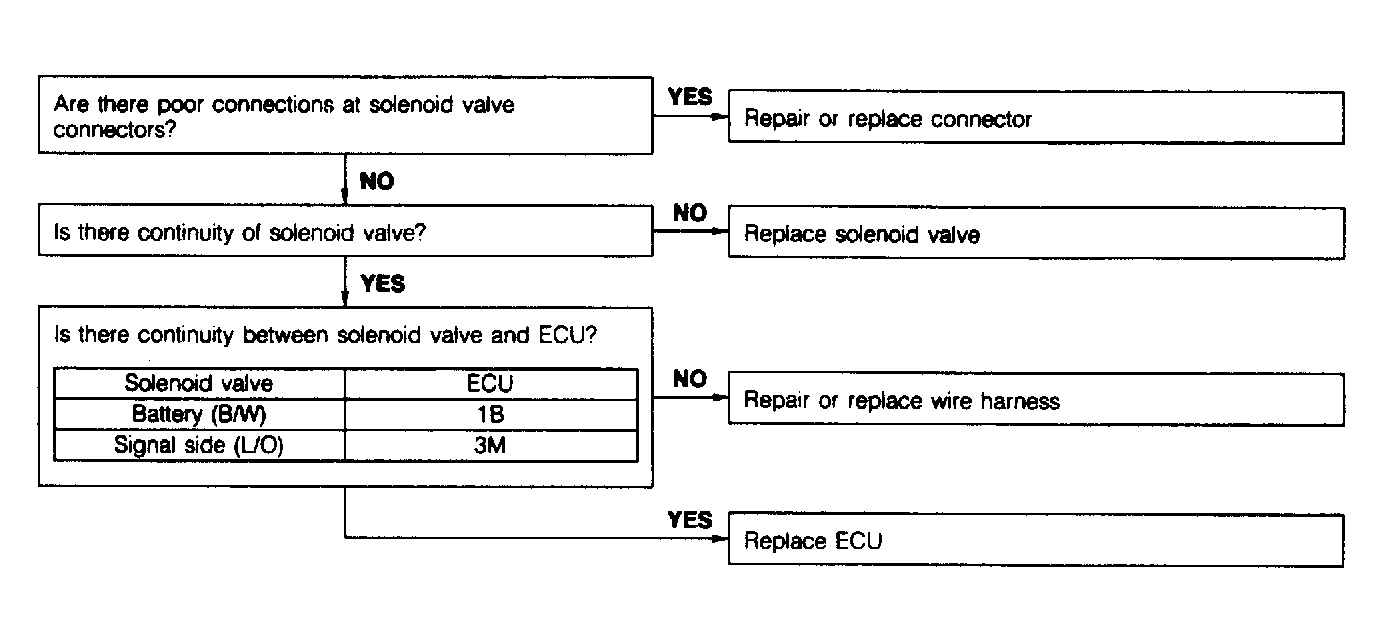

Fig 1: Code 25: Pressure Regulator Control Solenoid Flow Chart

G117690

Courtesy of MAZDA MOTORS CORP.
