Code 41: Variable Dynamic Effect Intake

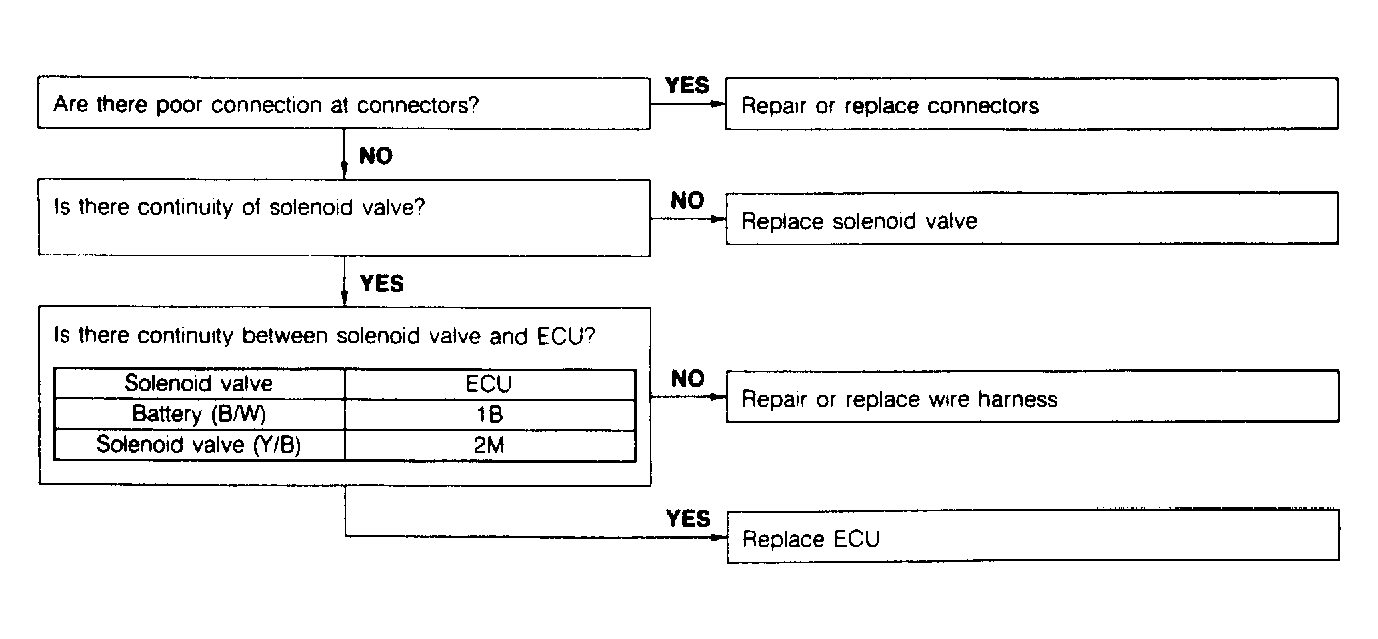

Fig 1: Code 41: Variable Dynamic Effect Intake Flow Chart

G117699

Courtesy of MAZDA MOTORS CORP.
