Engine Controls - Tests W/Codes - 4-CYL
>>
Trouble Codes
>>
Code 3: G Signal-Distributor
Code 3: G Signal-Distributor

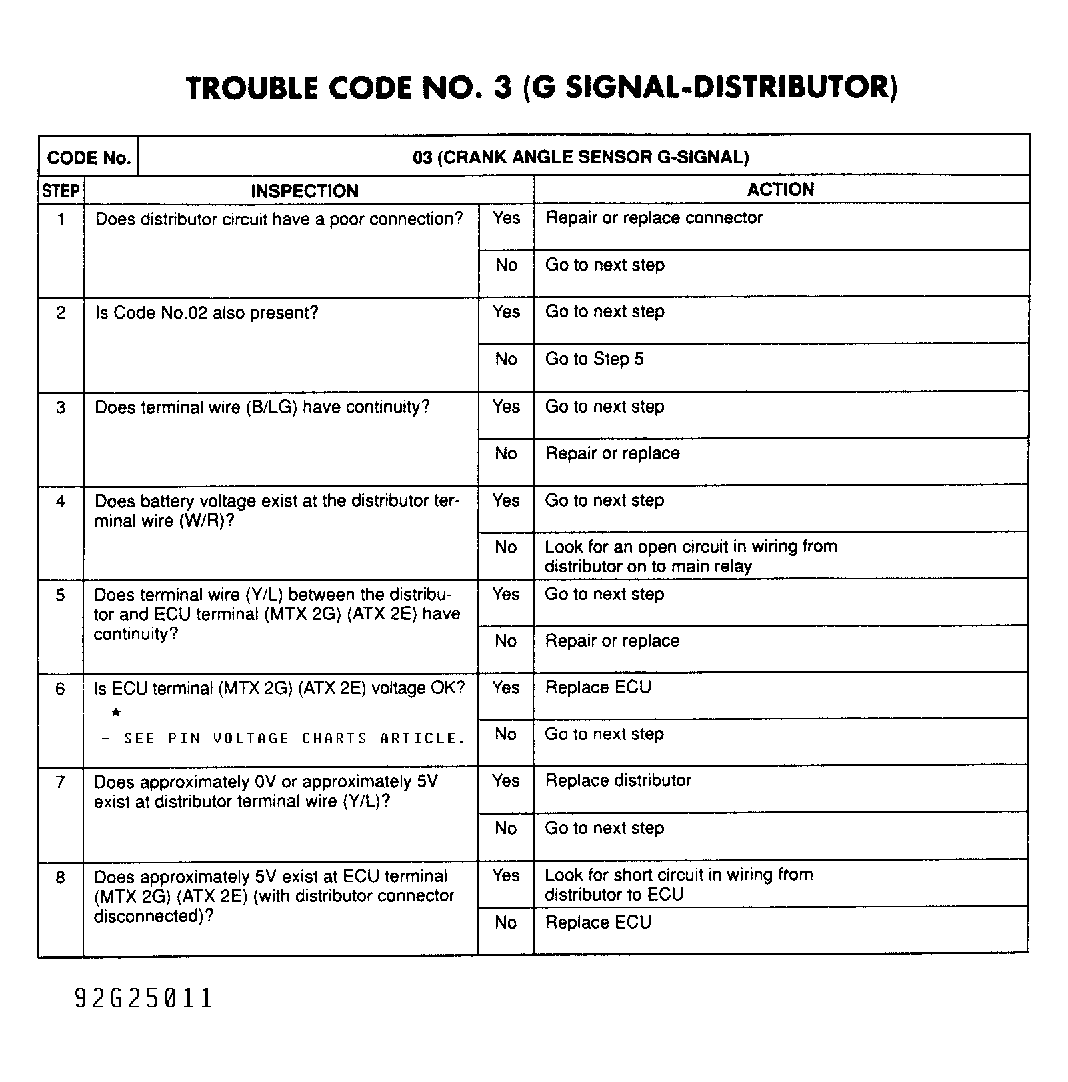

Fig 1: Trouble Code No. 3, G Signal-distributor
Courtesy of MAZDA MOTORS CORP.

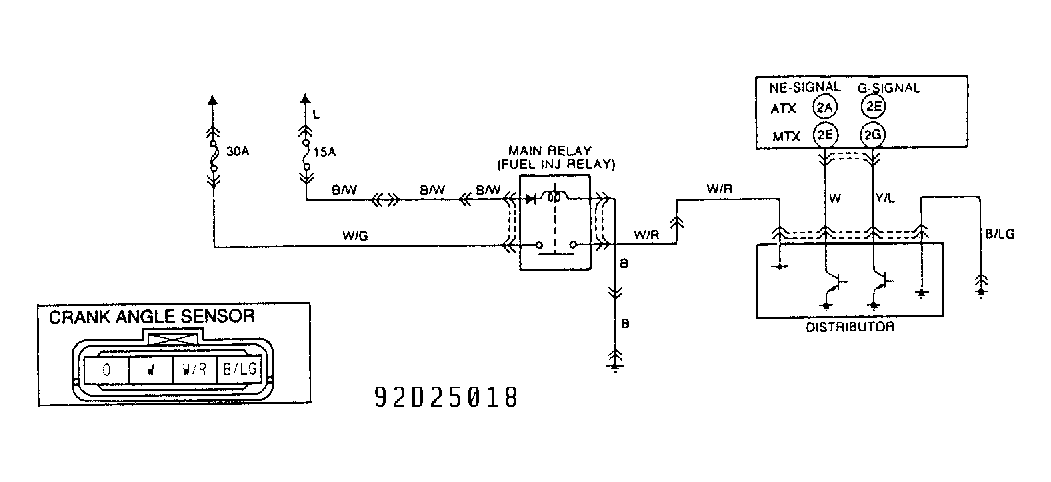

Fig 2: Circuit Diagram, G Signal-distributor
Courtesy of MAZDA MOTORS CORP.
