Component Locations

COMPONENT LOCATIONS

Component	Location
Body Ground 6	Below Passenger Seat
Fuse Panel (Joint Box)	Below Left Side Of Instrument Panel. See Fig 1 .
Power Window Master Control Switch	Driver's Door Armrest
Power Window Motor	Inside Respective Door
Passenger Power Window Switch	Passenger Door Armrest

Fig 1: Identifying Fuse Locations

G00134387

Courtesy of MAZDA MOTORS CORP.

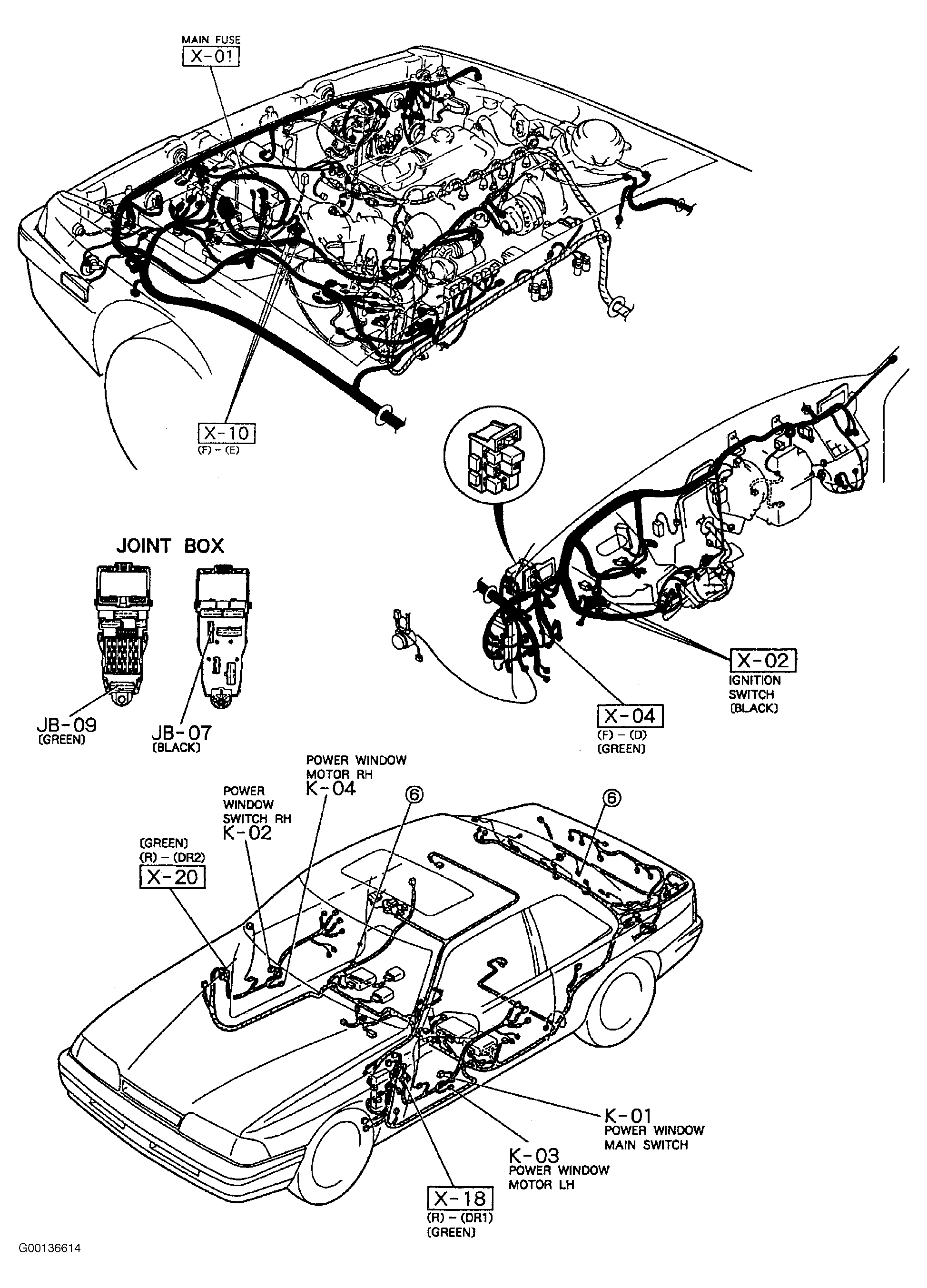

Fig 2: Identifying Connector Locations (MX-6)

G00136614

Courtesy of MAZDA MOTORS CORP.

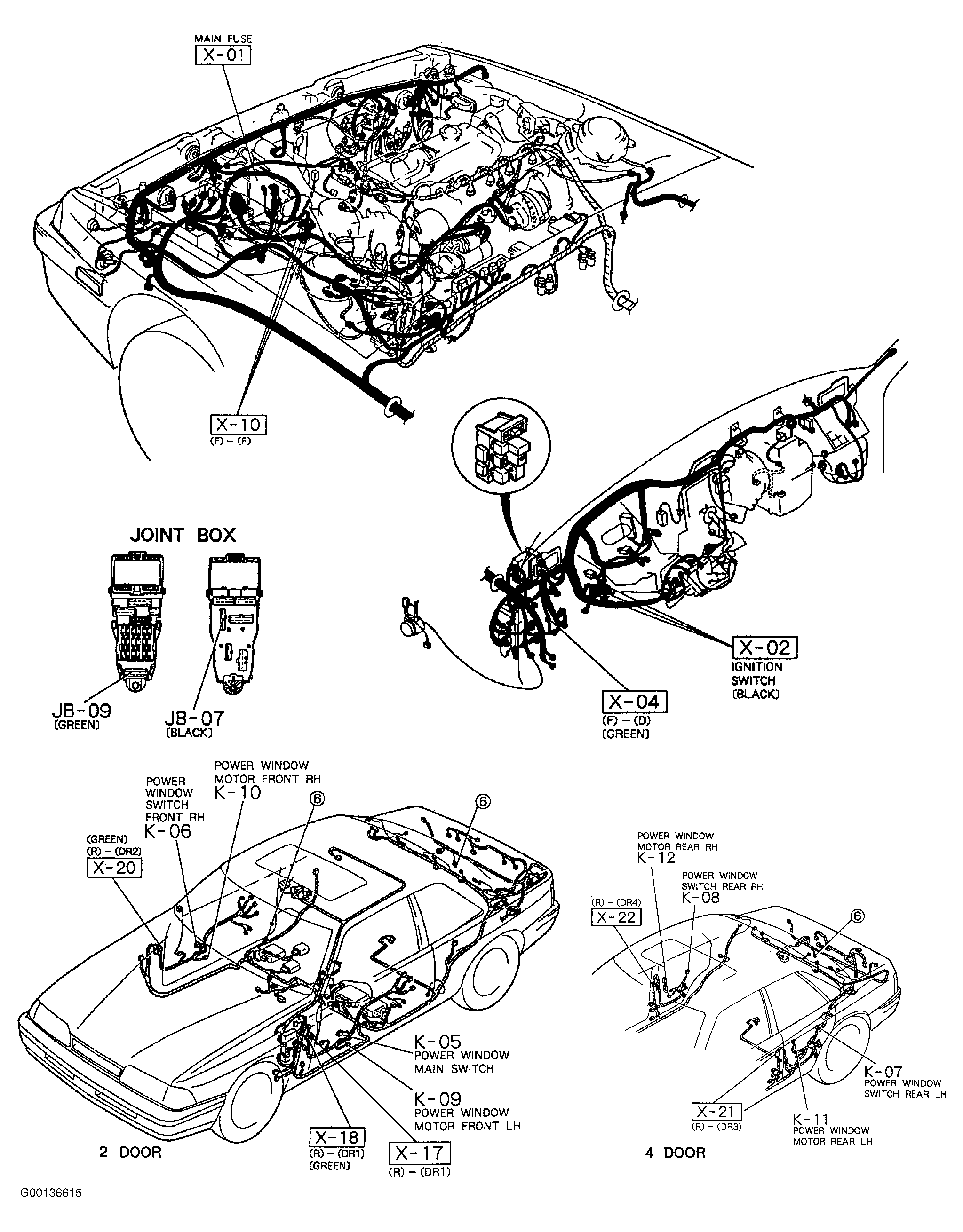

Fig 3: Identifying Connector Locations (626)

G00136615

Courtesy of MAZDA MOTORS CORP.
