Power Window Motor

  1. Disconnect the motor lead.
  2. Disconnect the regulator mechanism from the motor.
  3. Supply power to motor lead connector. See Fig 1 .
  4. Operate the motor. Reversal of the motor wire connections will reverse the direction of motor rotation. Replace the motor does not operate.

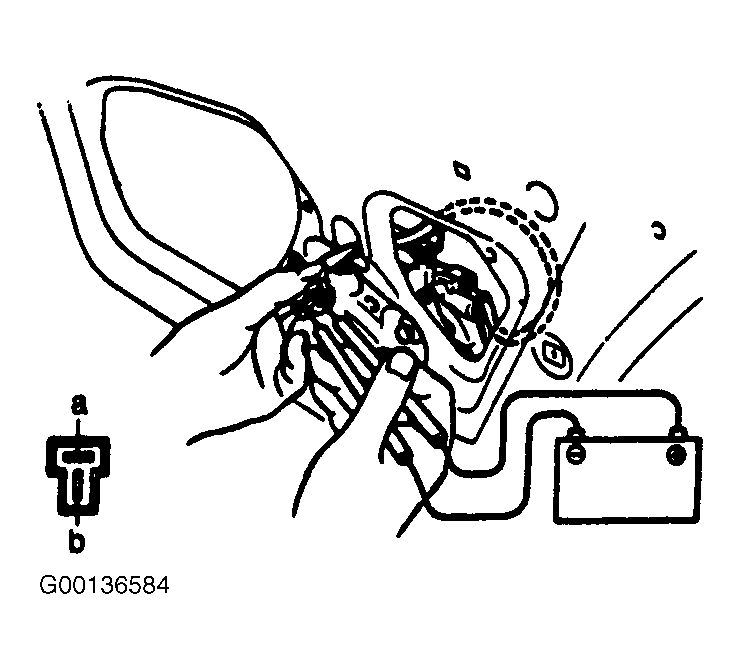

Fig 1: Testing Power Window Motor
G00136584Courtesy of MAZDA MOTORS CORP.
