Connector Identification
Connector Identification

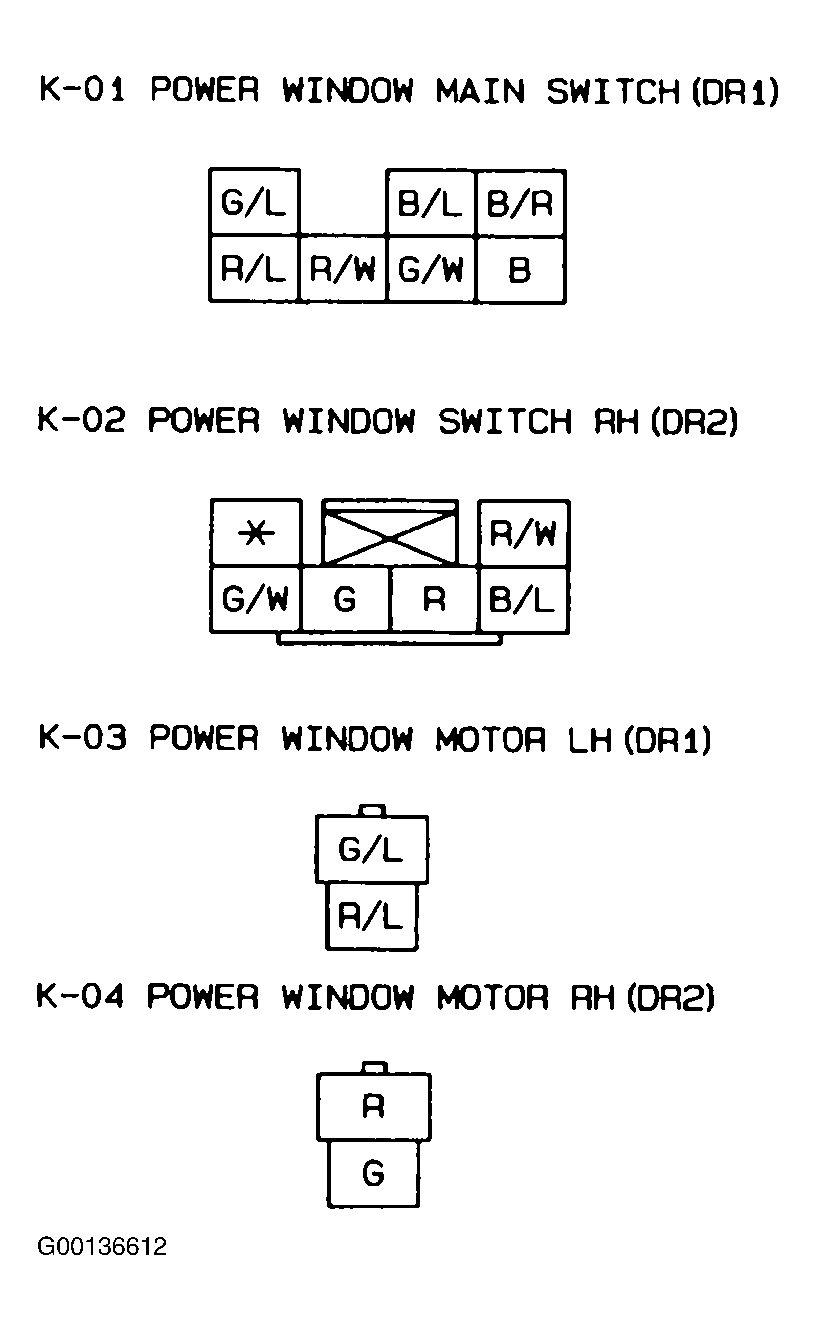

Fig 1: Identifying Power Window System Connectors (MX-6)
Courtesy of MAZDA MOTORS CORP.

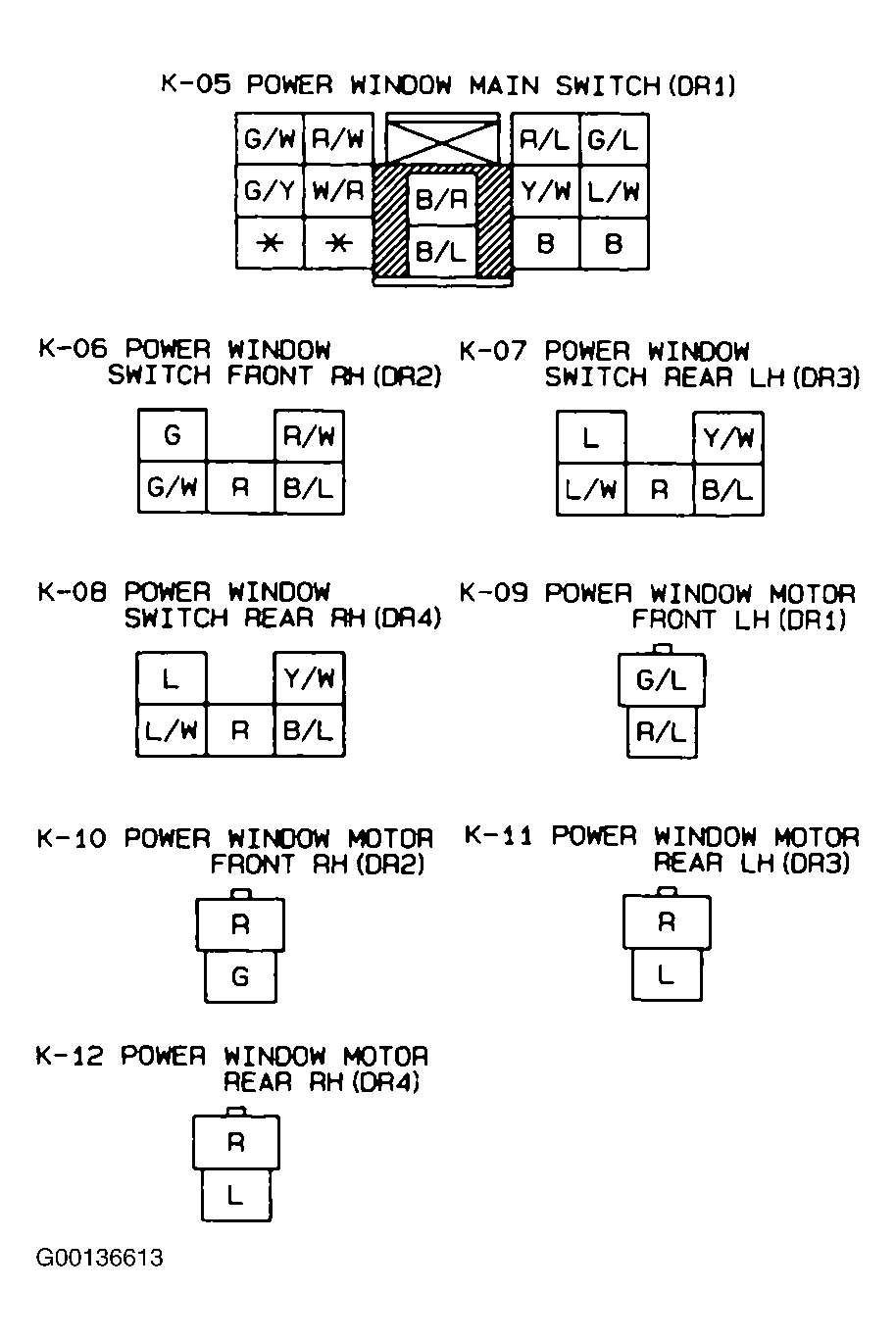

Fig 2: Identifying Power Window System Connectors (626)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
