ABS Control Unit

When checking for voltage at ABS control unit terminals, probe from rear of connector (harness side) to prevent damage to terminals. See Fig 1 .

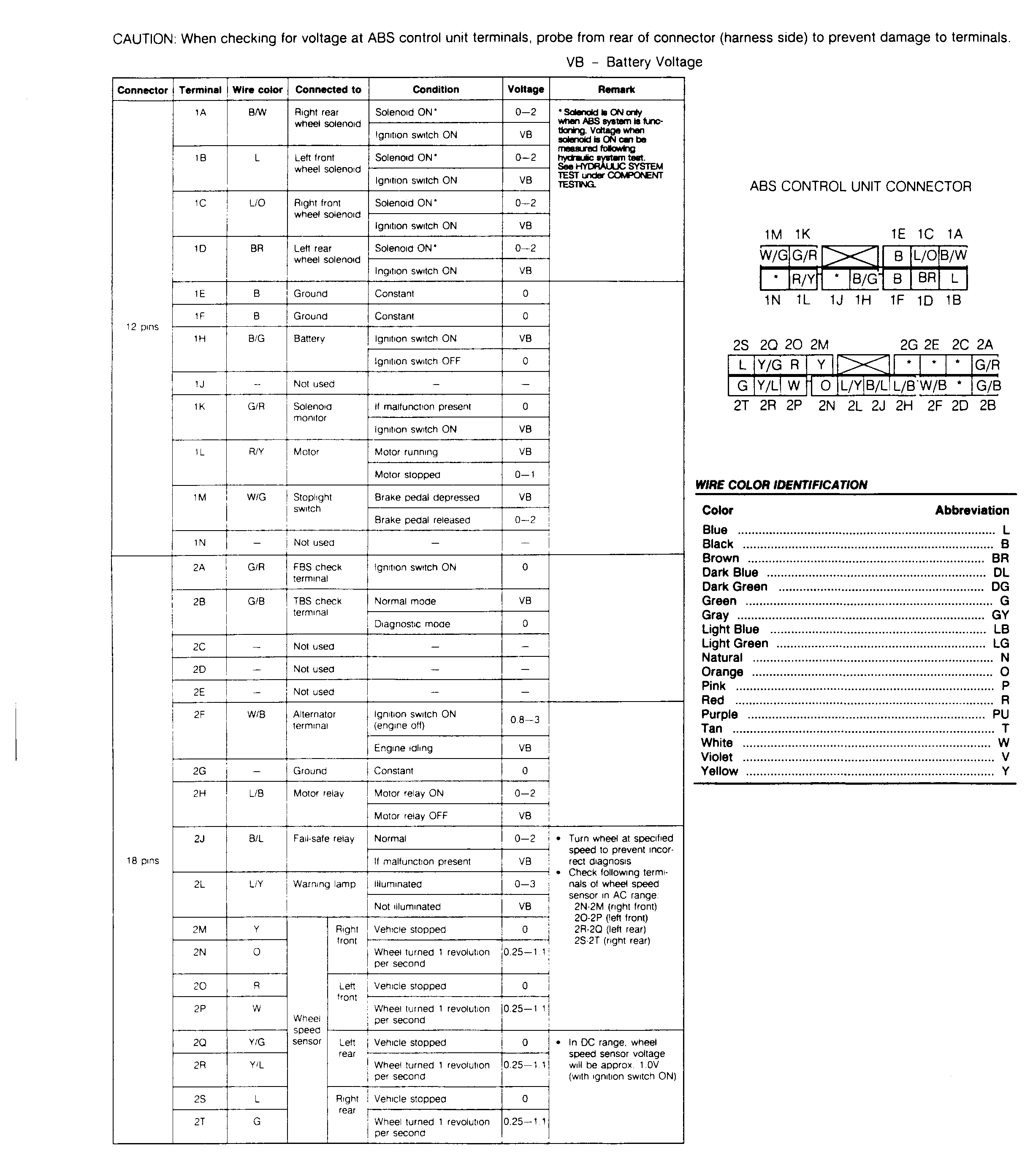

Fig 1: ABS Control Unit Harness Connector Testing Specifications

Courtesy of MAZDA MOTORS CORP.
