Trouble Code Charts
NOTE:
See PIN VOLTAGE CHART S article to identify ECU connector terminals.

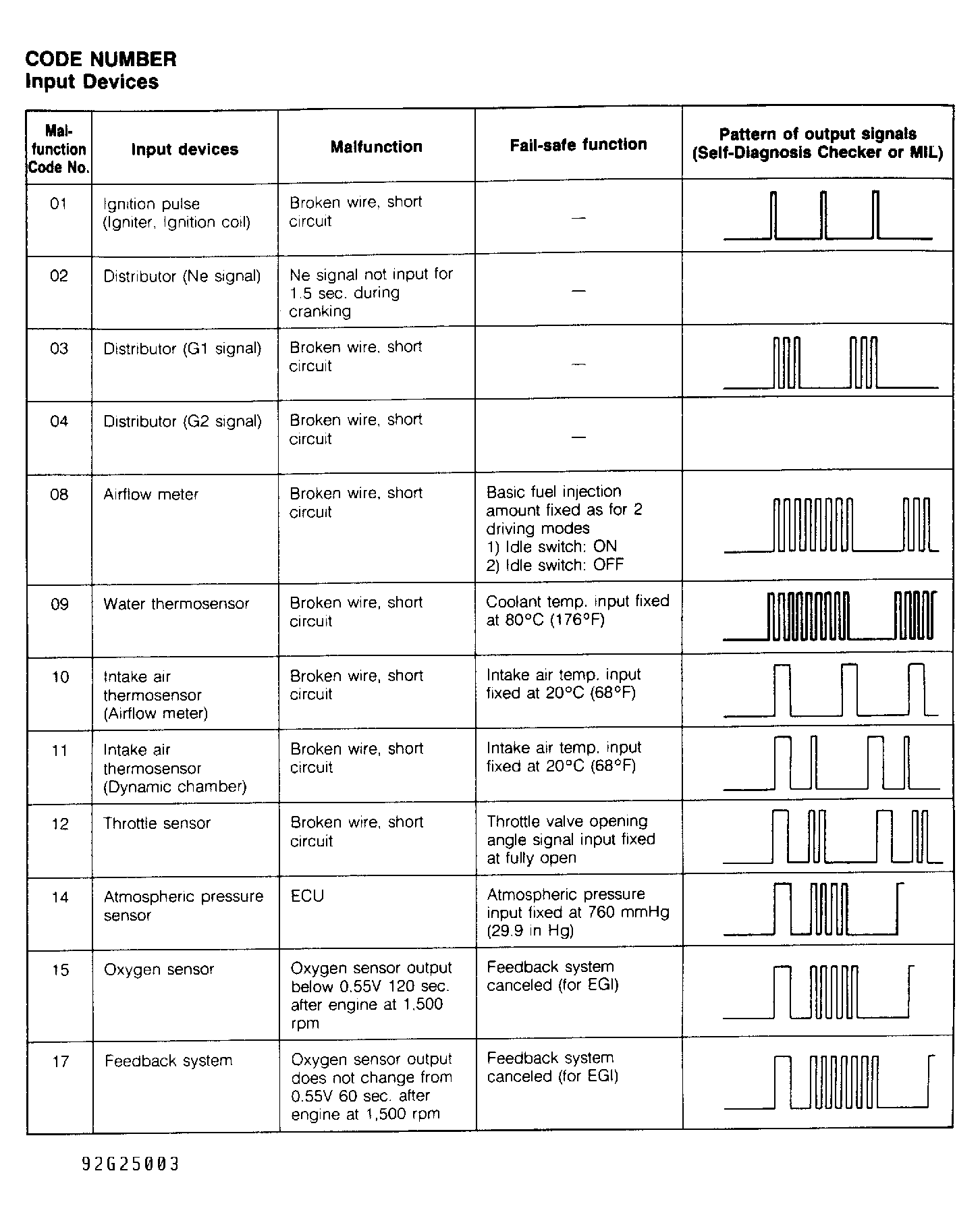

Fig 1: Trouble Code Identification Charts (1 of 2)
Courtesy of MAZDA MOTORS CORP.

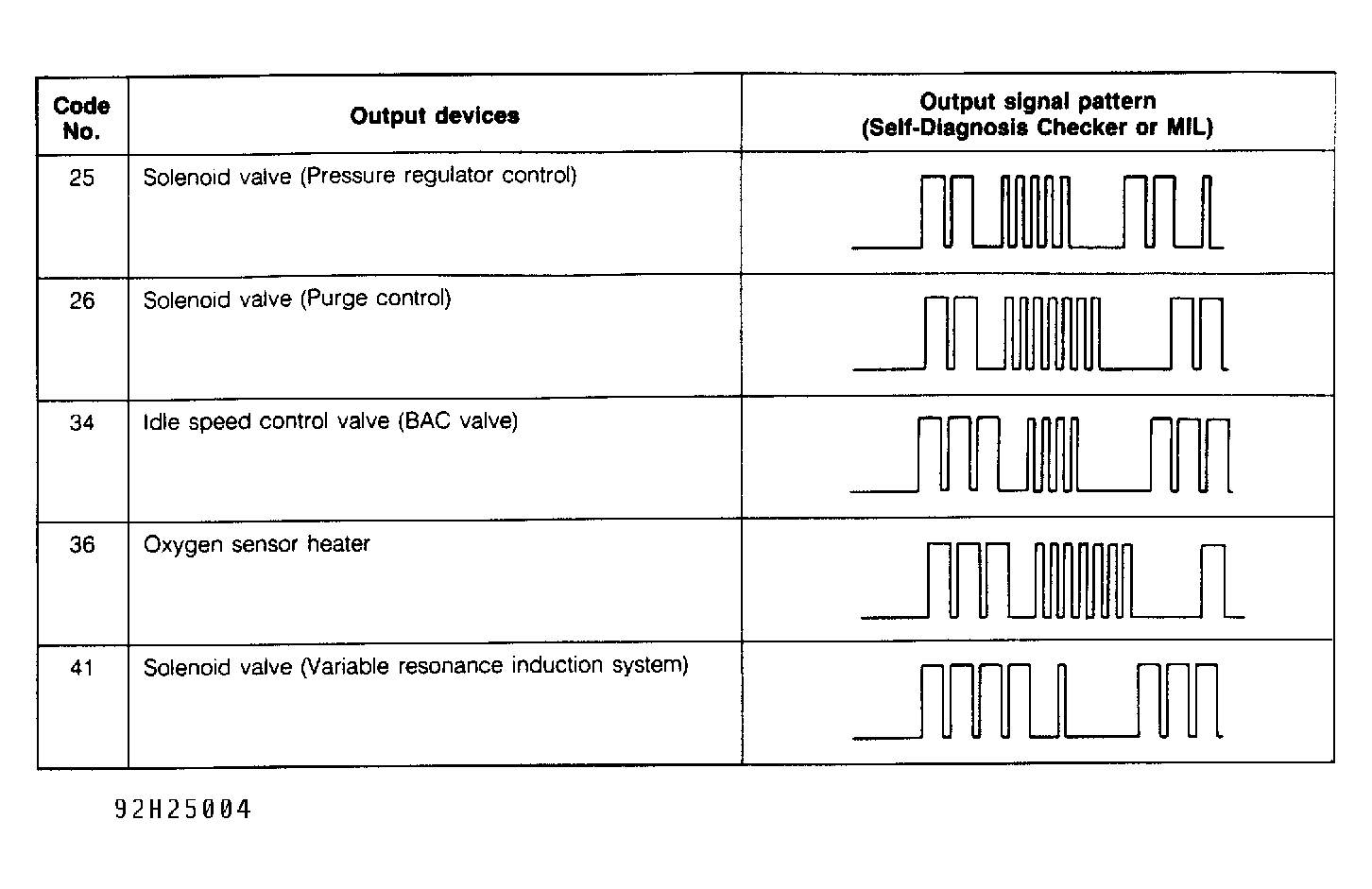

Fig 2: Trouble Code Identification Charts (2 of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
