Audio System Reset Procedure
Audio System Reset Procedure

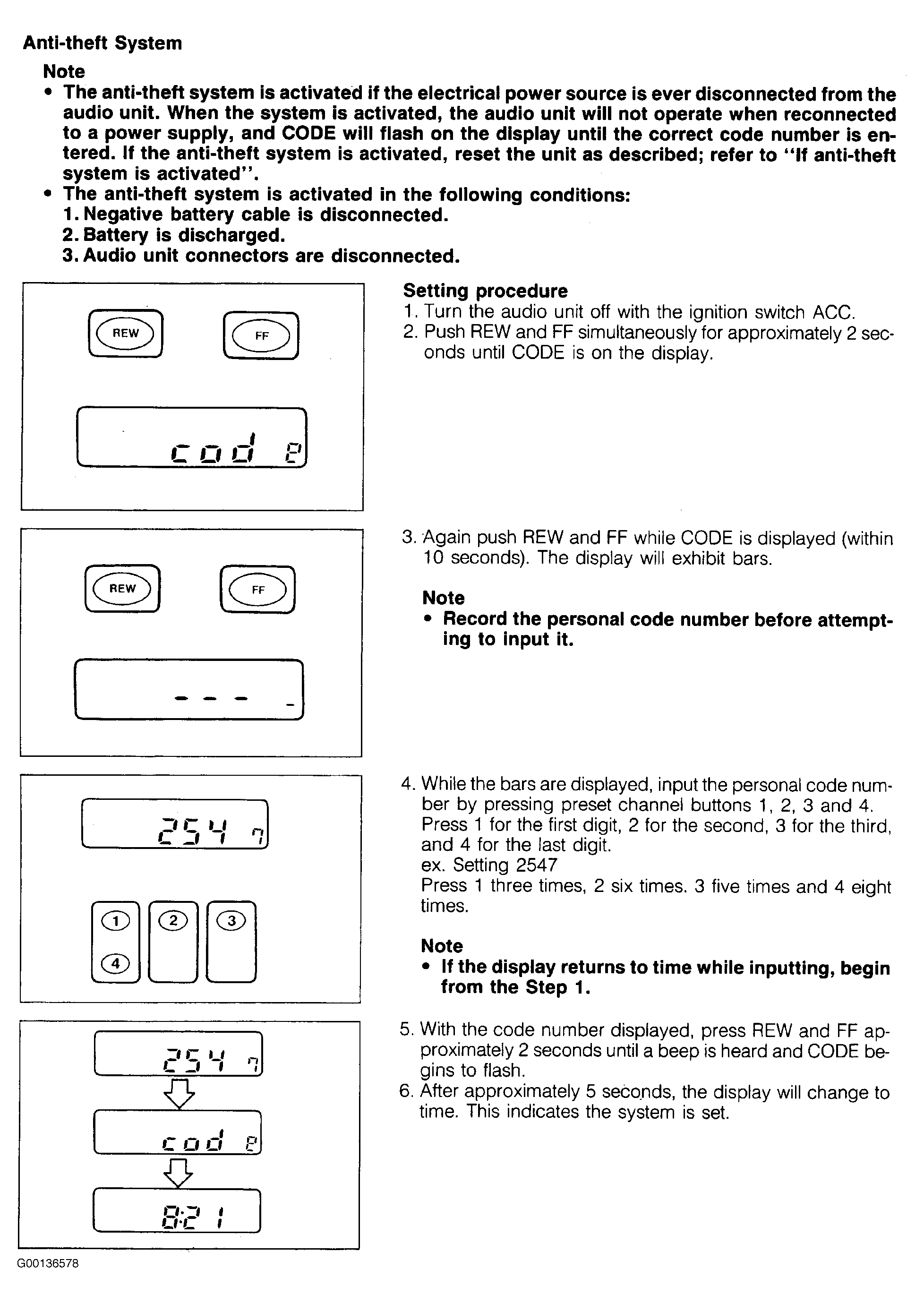

Fig 1: Programming Audio System (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

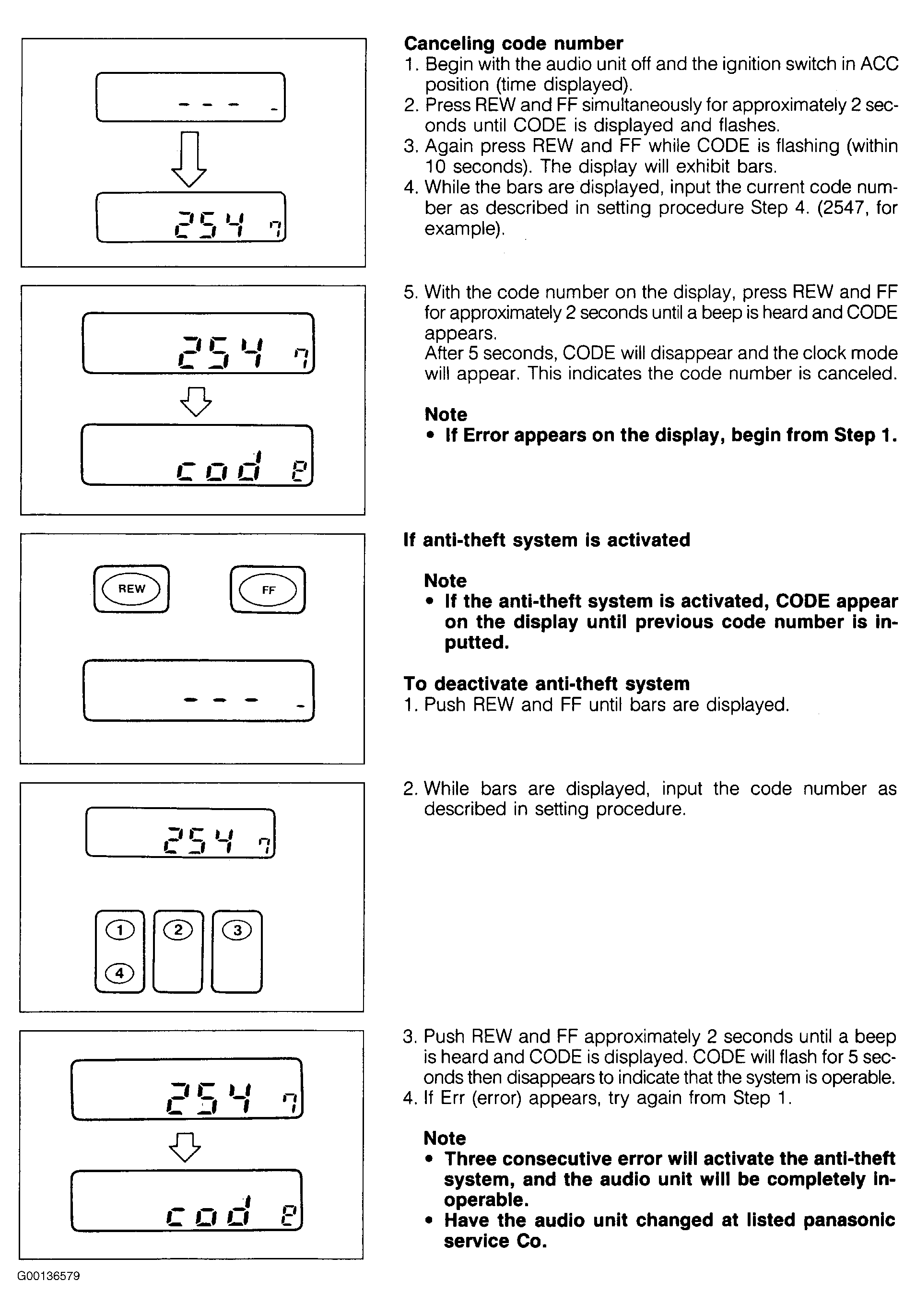

Fig 2: Programming Audio System (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
