Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | Under passenger-side foot well, near ECU. |

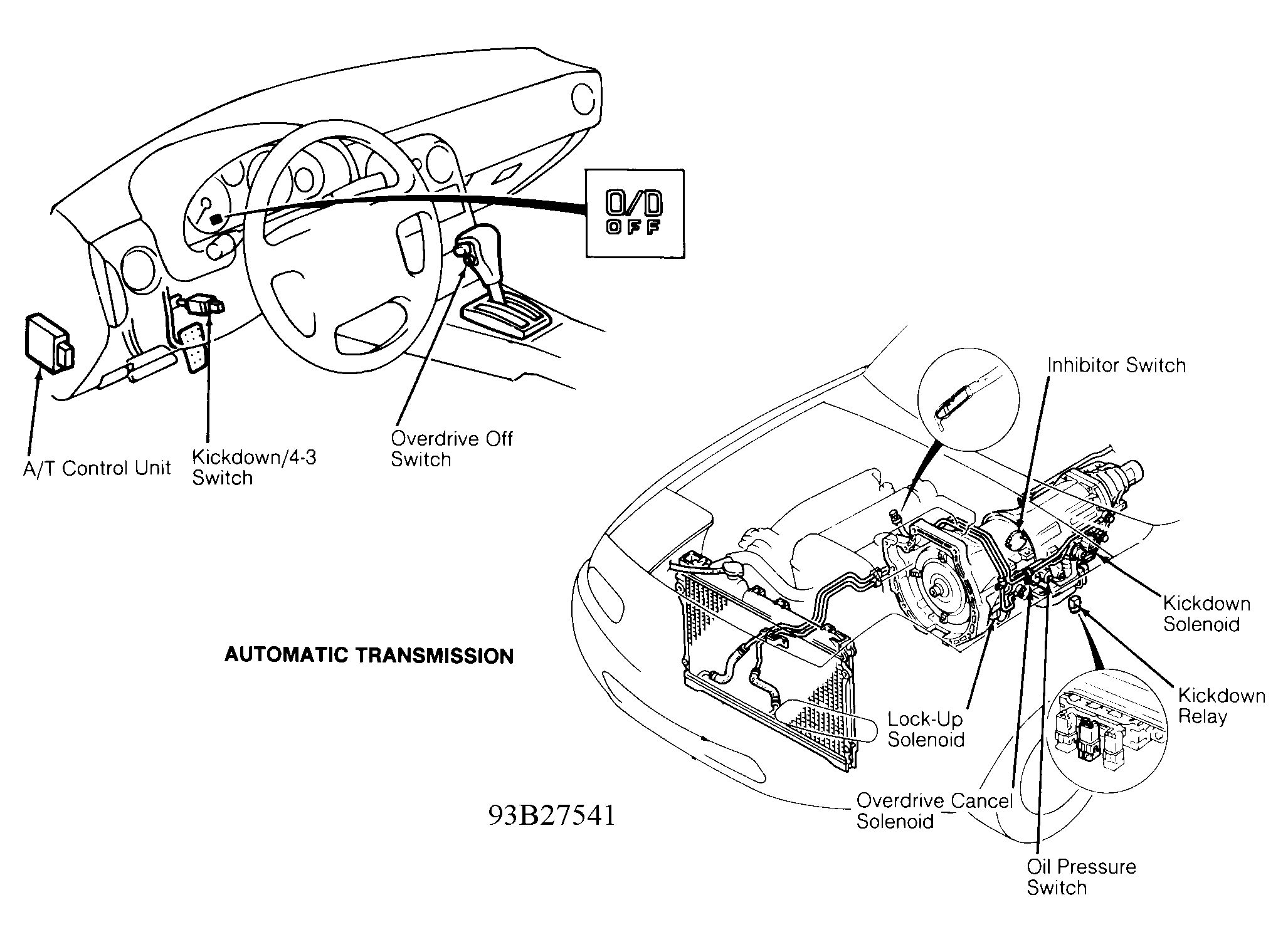

| A/T Control Unit | Behind left kick panel. See Figure . |
| Cruise Control Unit | Behind left side of dash, above fuse block. |

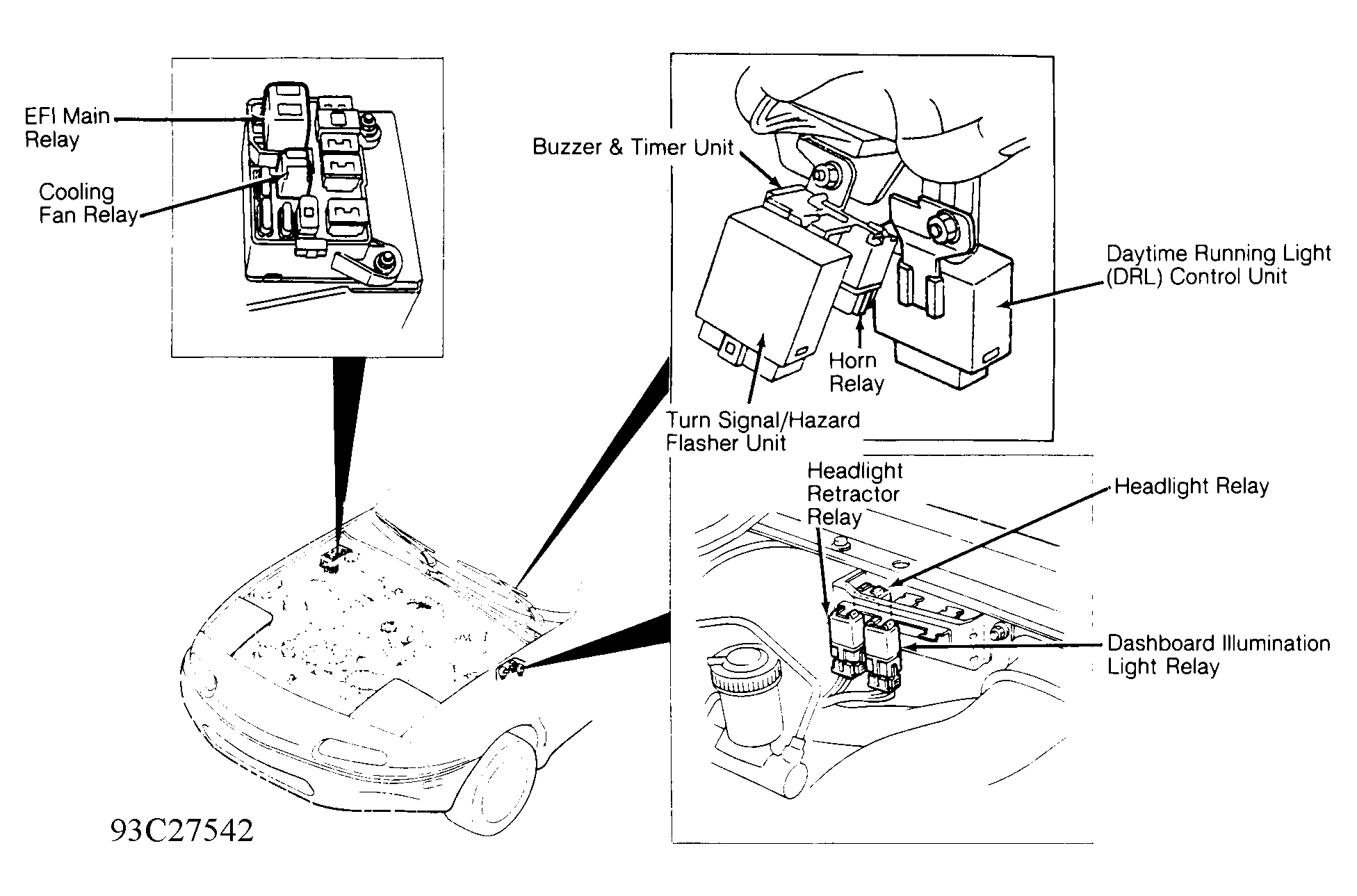

| Daytime Running Light (DRL) Control Unit | On bracket, behind left side of dash. See Figure . |

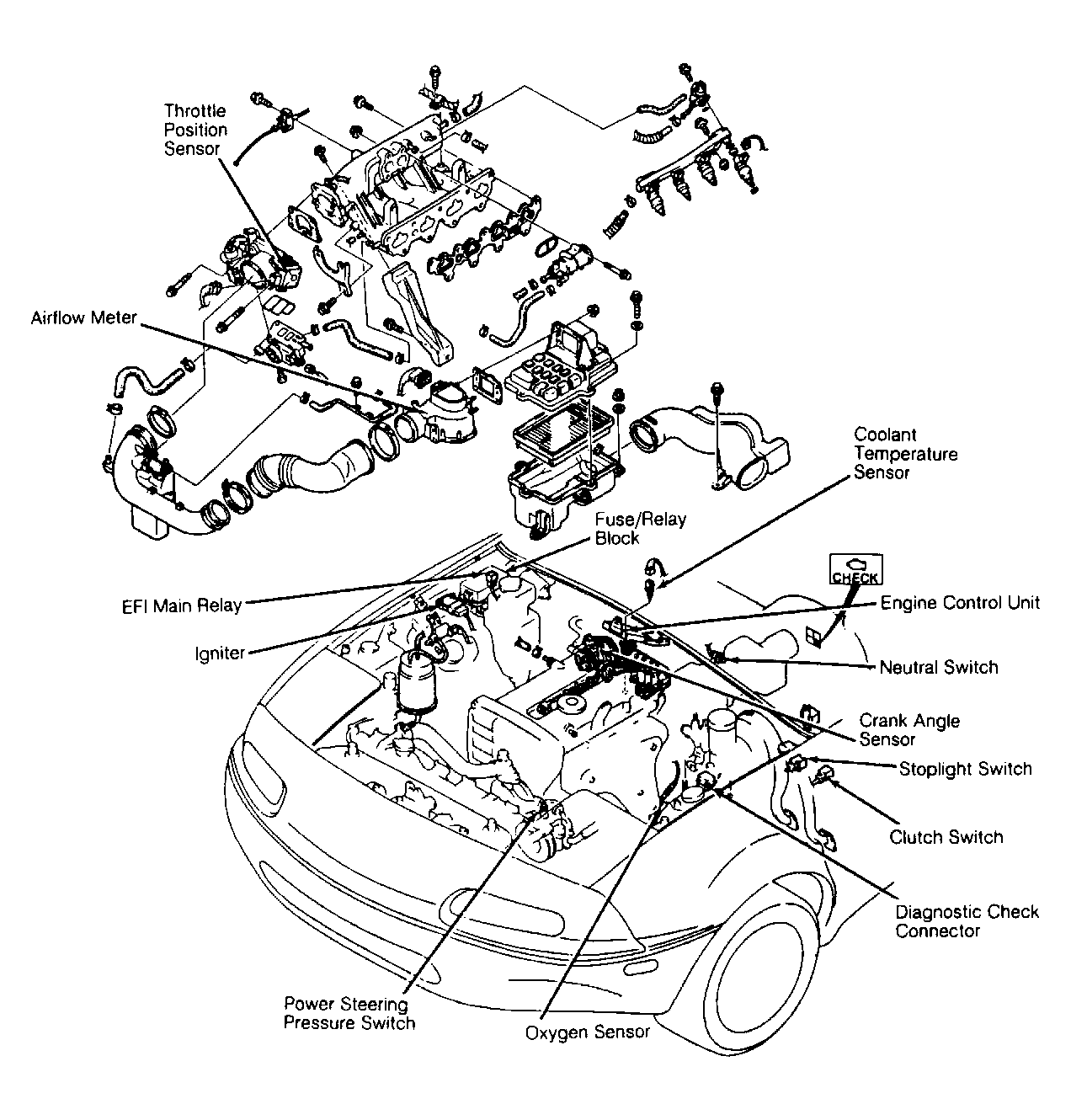

| Engine Control Unit (ECU) | Under passenger-side foot well. See Figure . |

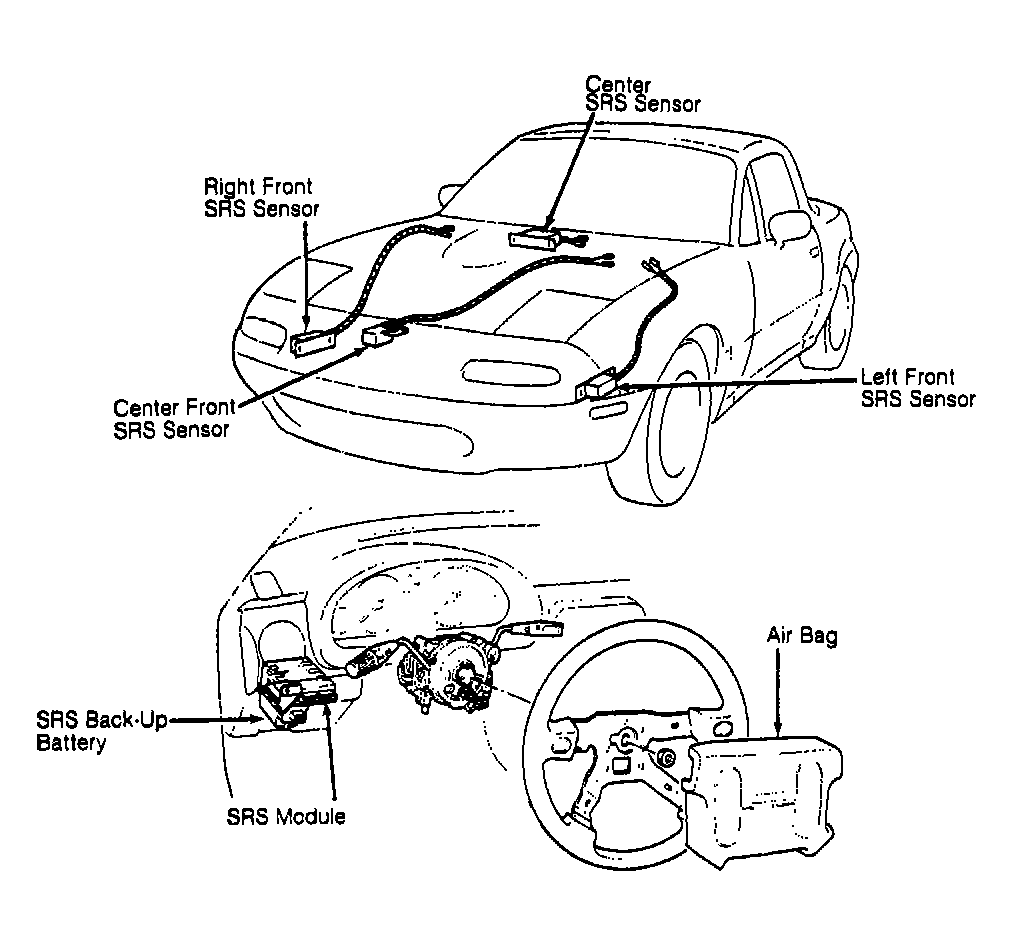

| Supplemental Safety Restraint (SRS) Module | Behind left side of dash. See Figure . |
