Power Mirror Switch Test

Disconnect switch connector (remove switch if necessary). See POWER MIRROR SWITCH under REMOVAL & INSTALLATION. With switch in specified position, check continuity between specified terminals of switch connector. See Fig 1 . Replace switch if continuity is not as specified.

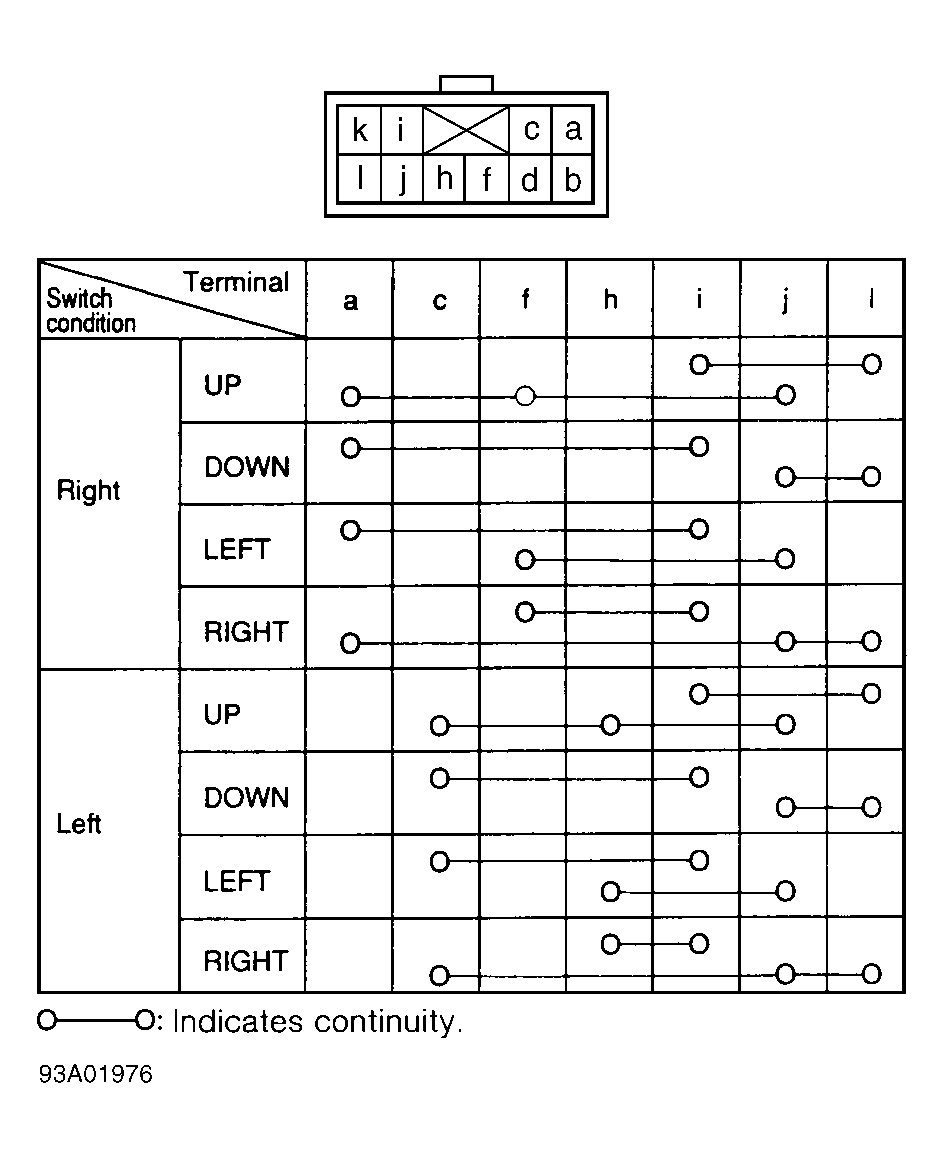

Fig 1: Testing Power Mirror Switch
G93A01976Courtesy of MAZDA MOTORS CORP.
