Continuity Test

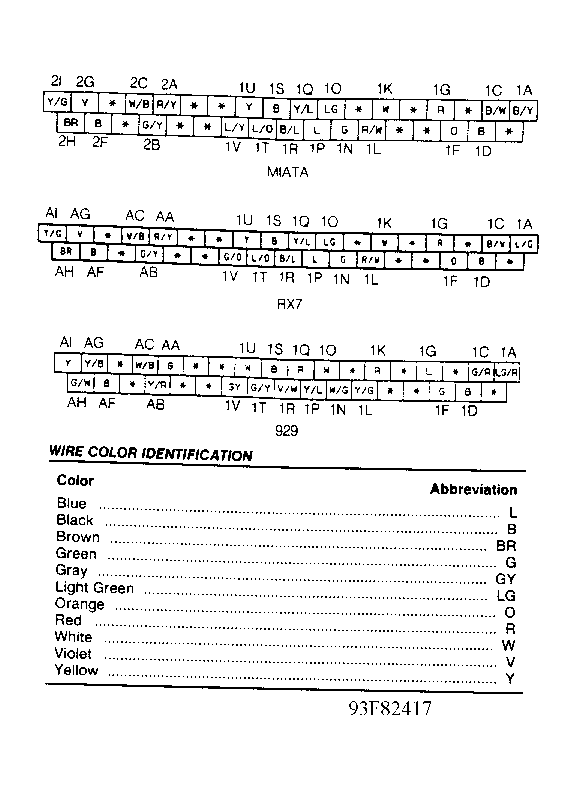

Using a DVOM, check for continuity between ground and following ABS control unit connector terminals: 1D, 1S and AF. See Fig 1 . If continuity is not present, repair wiring harness.
WIRE COLOR IDENTIFICATION
| Color | Abbreviation |
|---|---|
| Blue | L |
| Black | B |
| Brown | BR |
| Green | G |
| Gray | GY |
| Light Green | LG |
| Orange | O |
| Red | R |
| White | W |
| Violet | V |
| Yellow | Y |
