Home >> Mazda >> 1993 >> 929 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Trouble Code Identification >> Code 26: (Purge Control Solenoid Valve)

Code 26: (Purge Control Solenoid Valve)

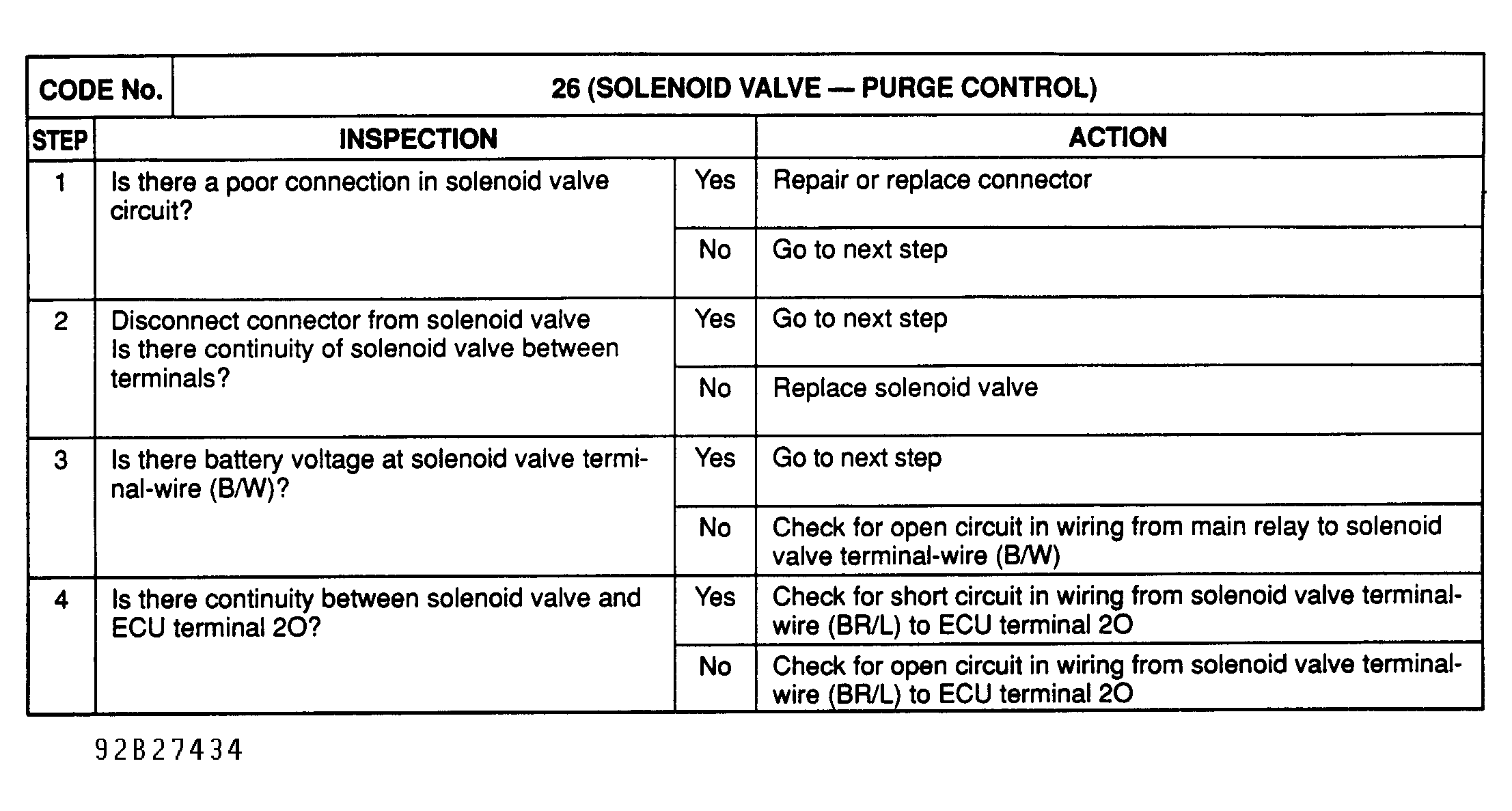

Fig 1: Trouble Code No. 26 - Diagnostic Flowchart

G92B27434

Courtesy of MAZDA MOTORS CORP.
