Home
>>
Mazda
>>
1993
>>
929
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
Trouble Code Identification
>>
Code 30: (Cold Start Injector Relay)
Code 30: (Cold Start Injector Relay)

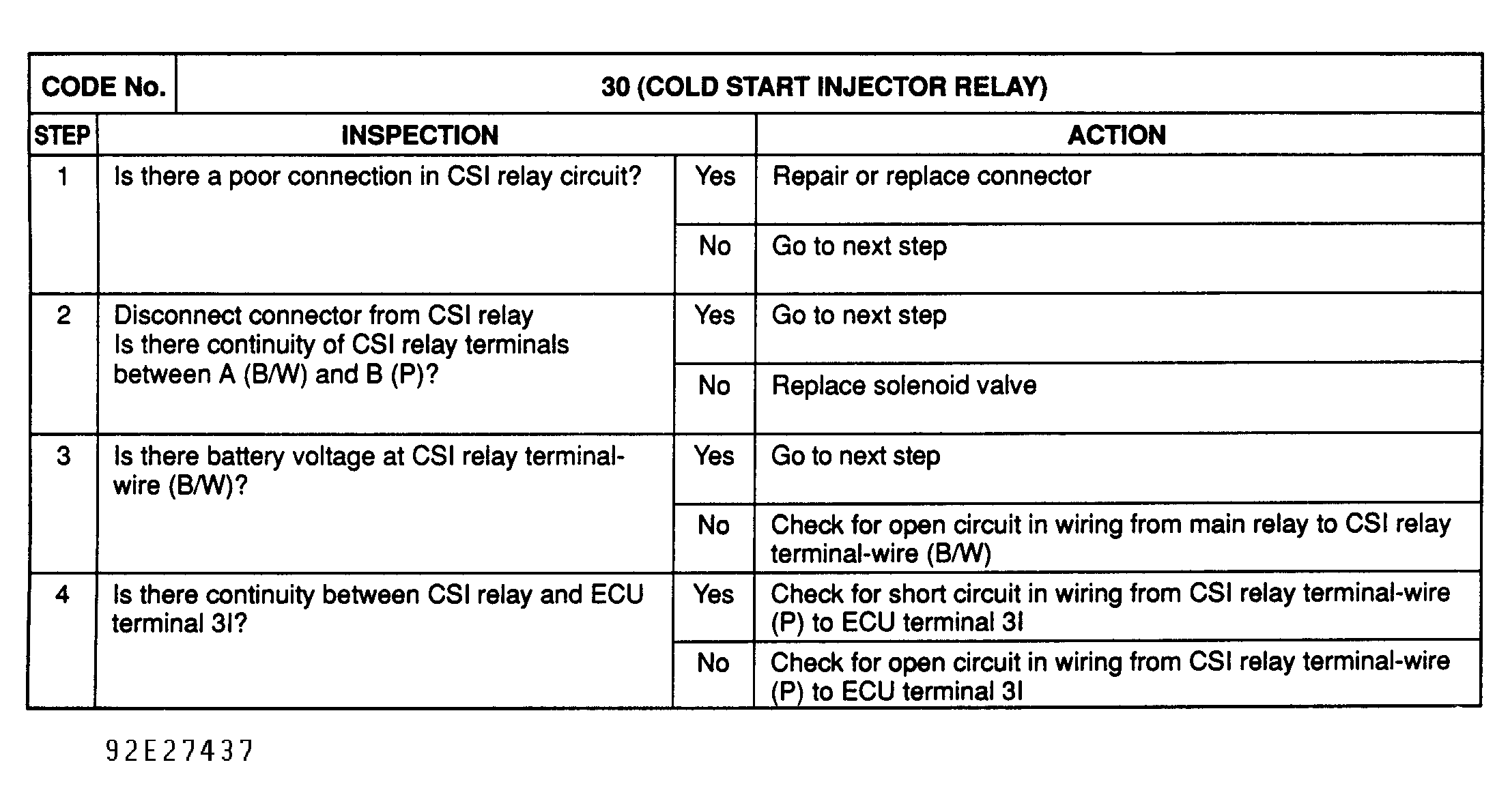

Fig 1: Trouble Code No. 30 - Diagnostic Flowchart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
