Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| Fuse Block | Behind left side of dash. | |
| Main Fuse Block | ||

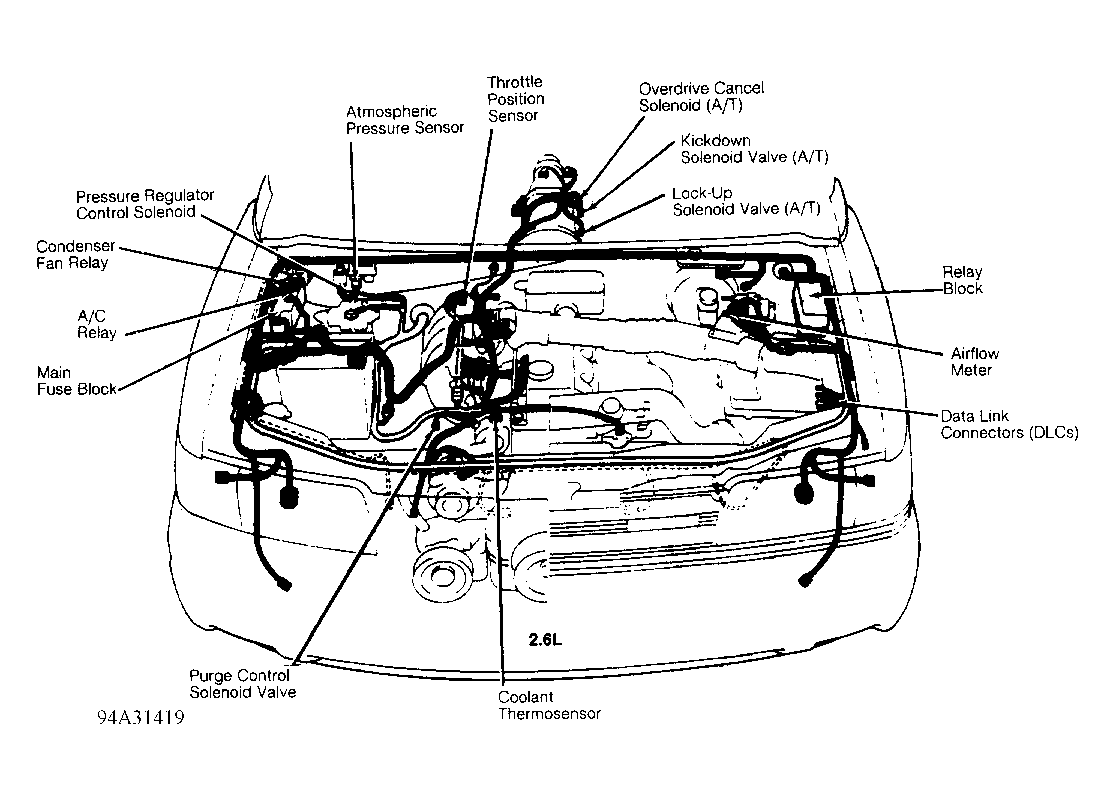

| Engine Compartment (2.6L) | On right rear of front inner fender panel. See Figure . | |

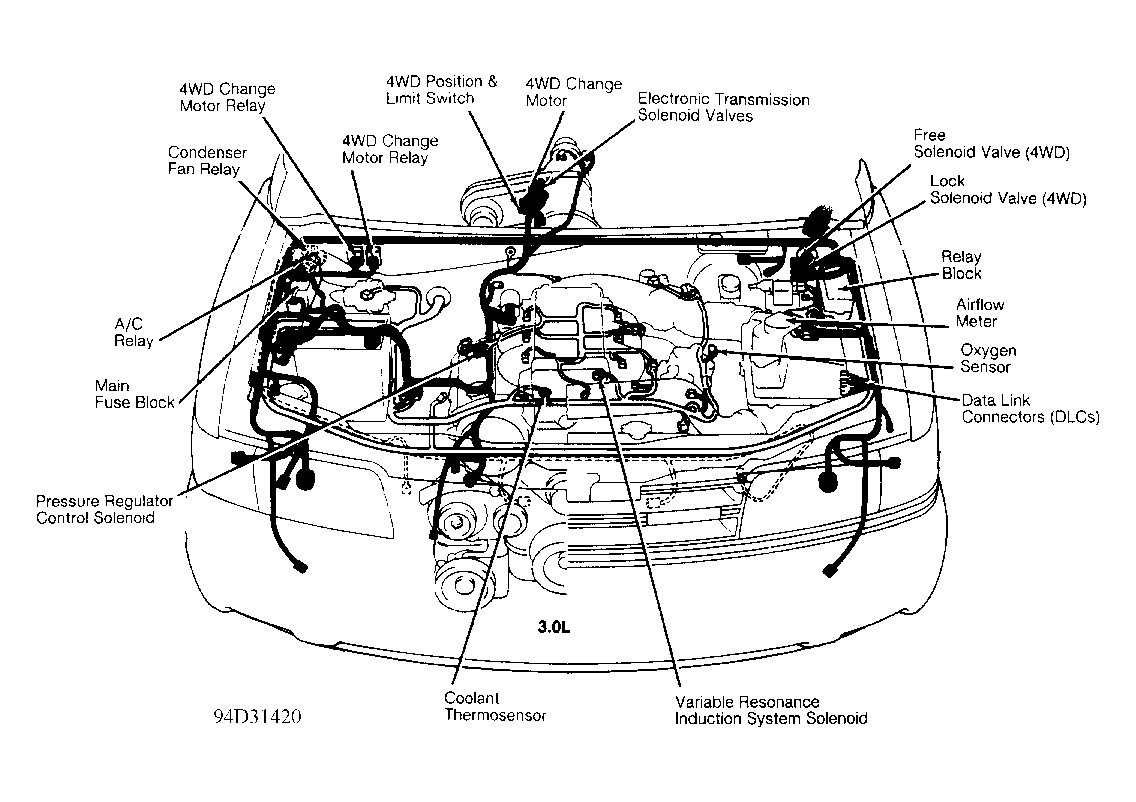

| Engine Compartment (3.0L) | On right rear of front inner fender panel. See Figure . | |
| Relay Block | ||
| Engine Compartment (2.6L) | On left front inner fender panel. See Figure . | |
| Engine Compartment (3.0L) | On left front inner fender panel. See Figure . | |
