Code 11: (Intake Air Temperature Sensor)

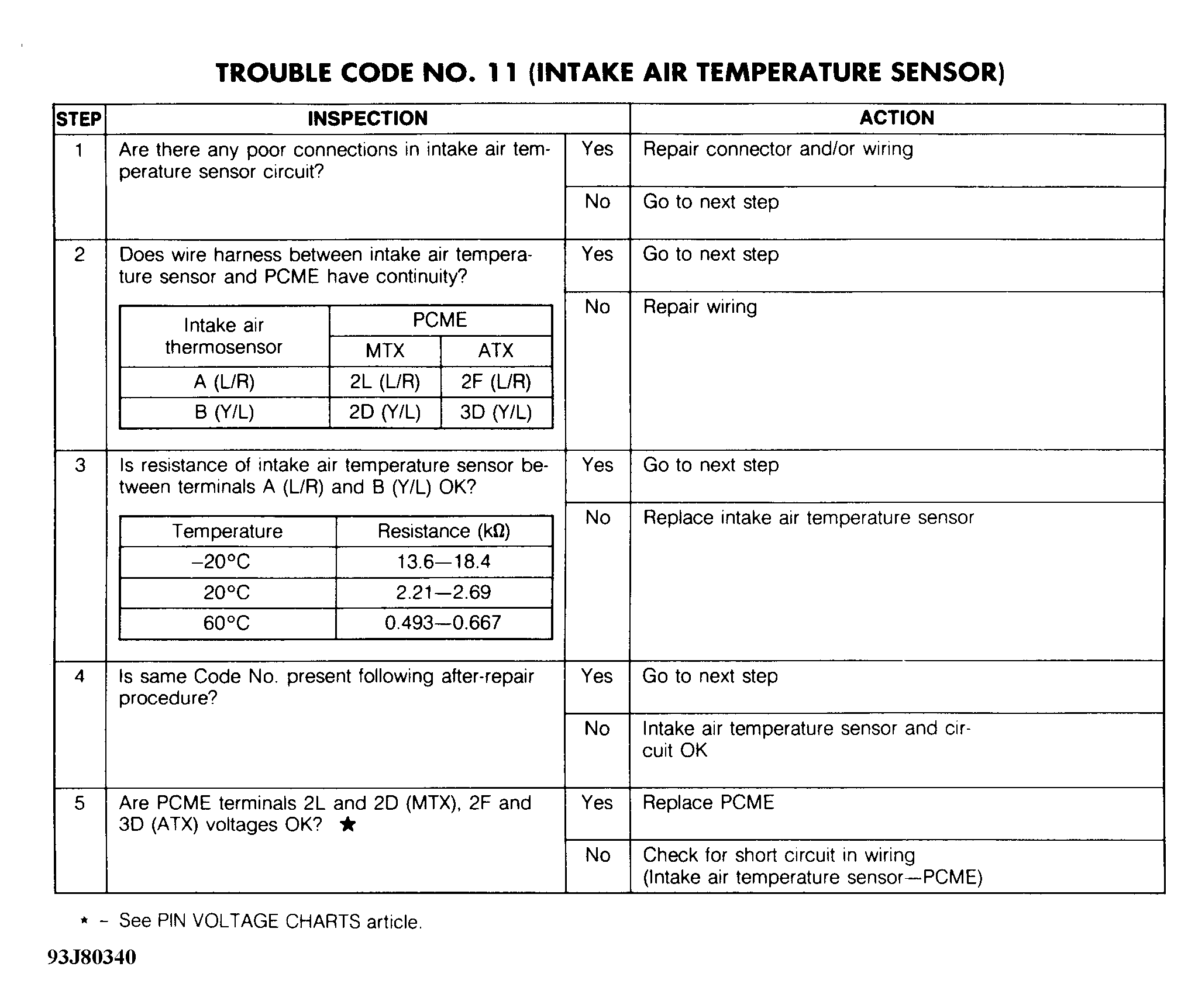

Fig 1: Trouble Code No. 11 - Diagnostic Flowchart

G93J80340

Courtesy of MAZDA MOTORS CORP.

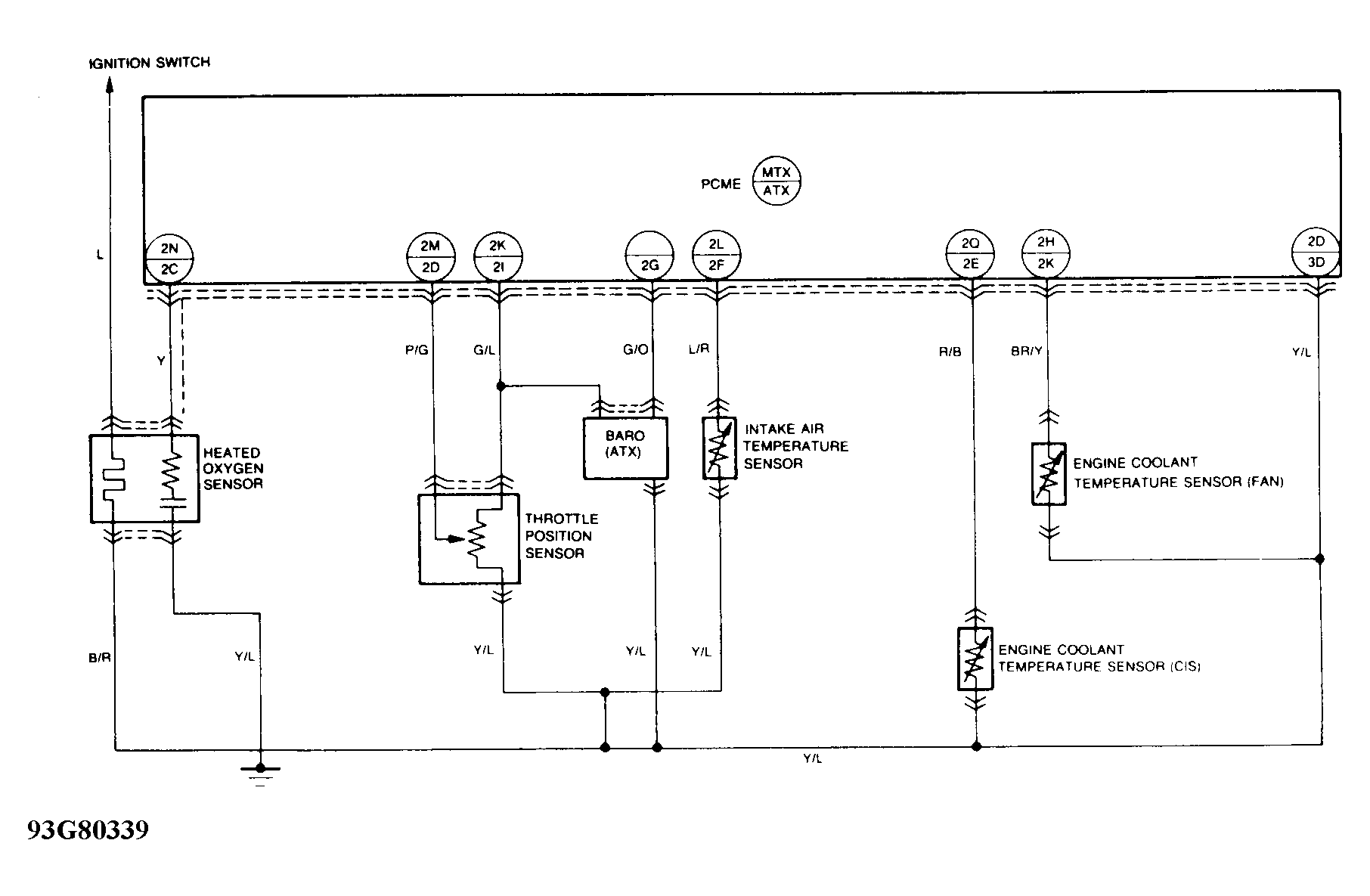

Fig 2: Trouble Code No. 11 - Schematic

G93G80339

Courtesy of MAZDA MOTORS CORP.
