Code 13: (Pressure Sensor)

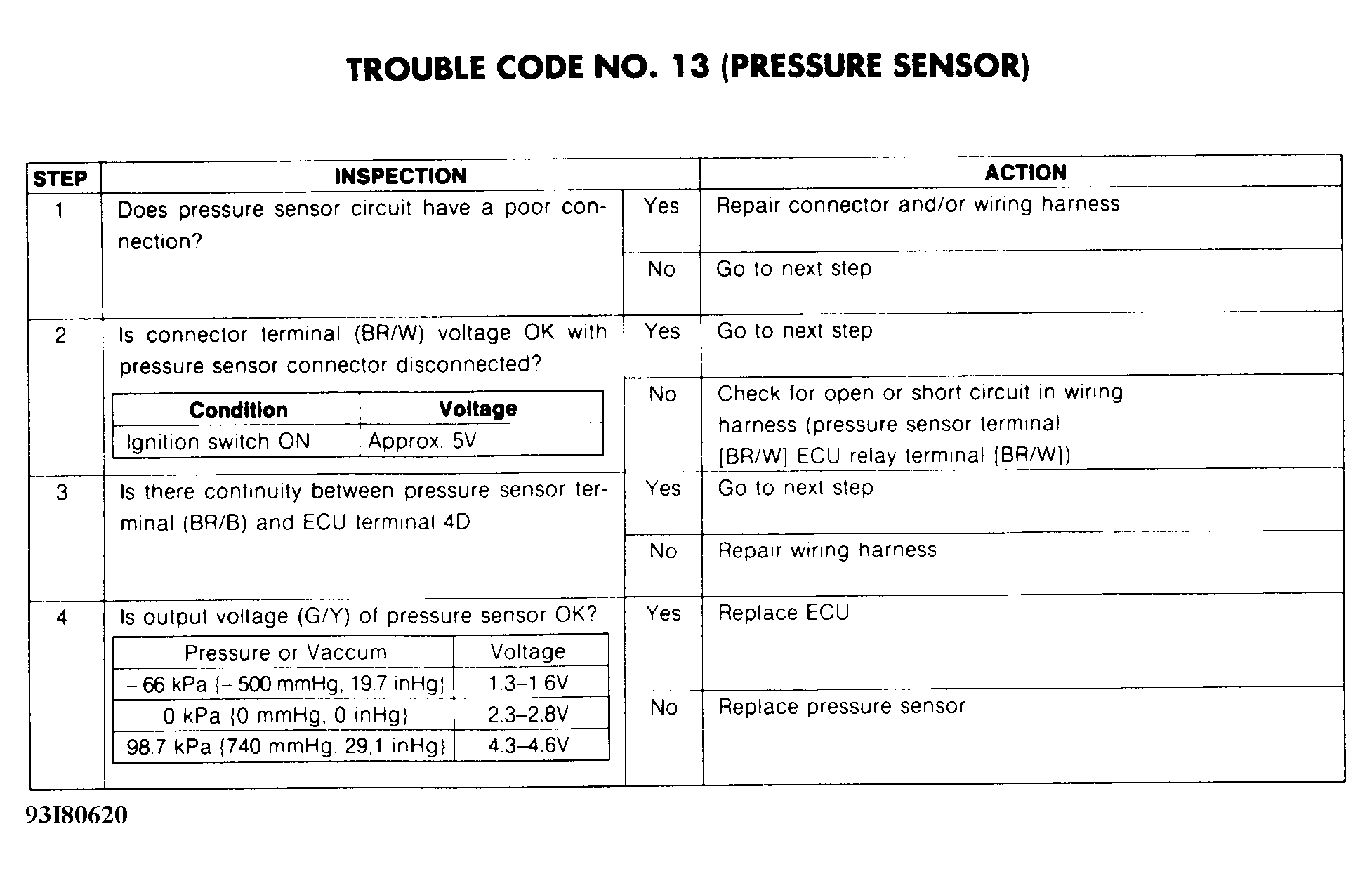

Fig 1: Trouble Code No. 13 - Diagnostic Flowchart

G93I80620

Courtesy of MAZDA MOTORS CORP.

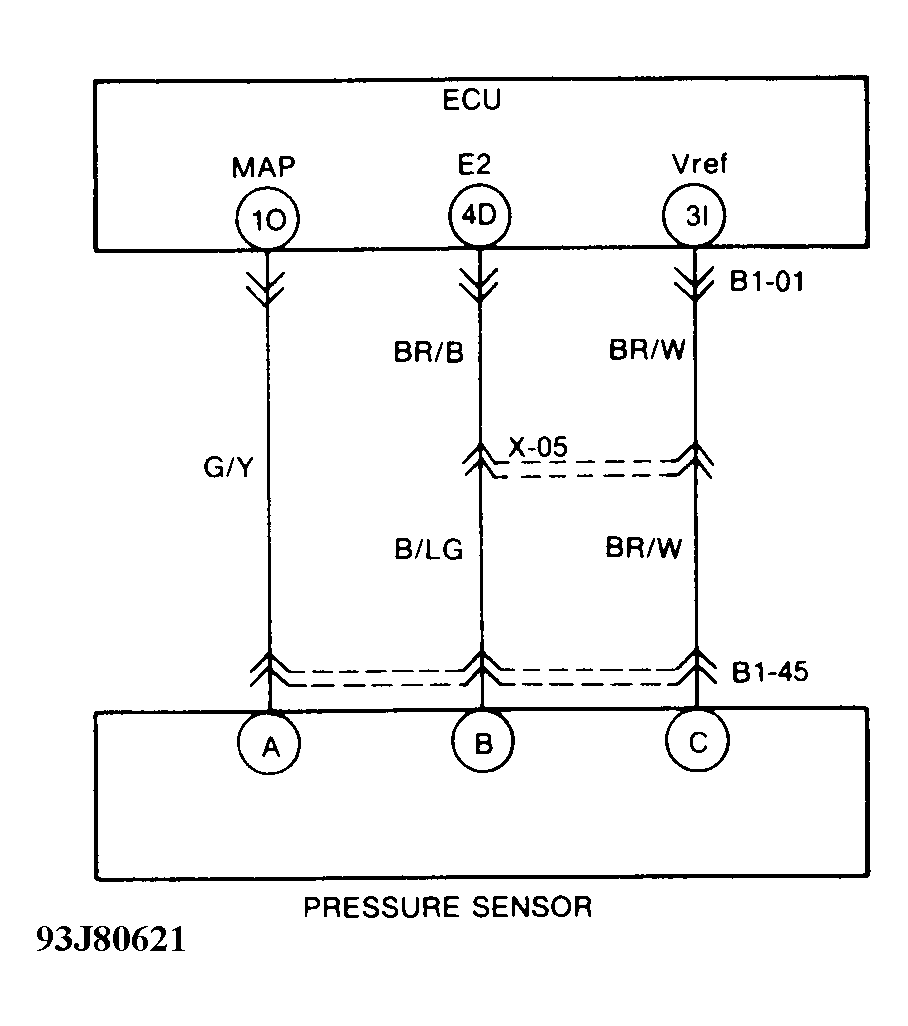

Fig 2: Trouble Code No. 13 - Schematic

G93J80621

Courtesy of MAZDA MOTORS CORP.
