Code 17: (Feedback System)

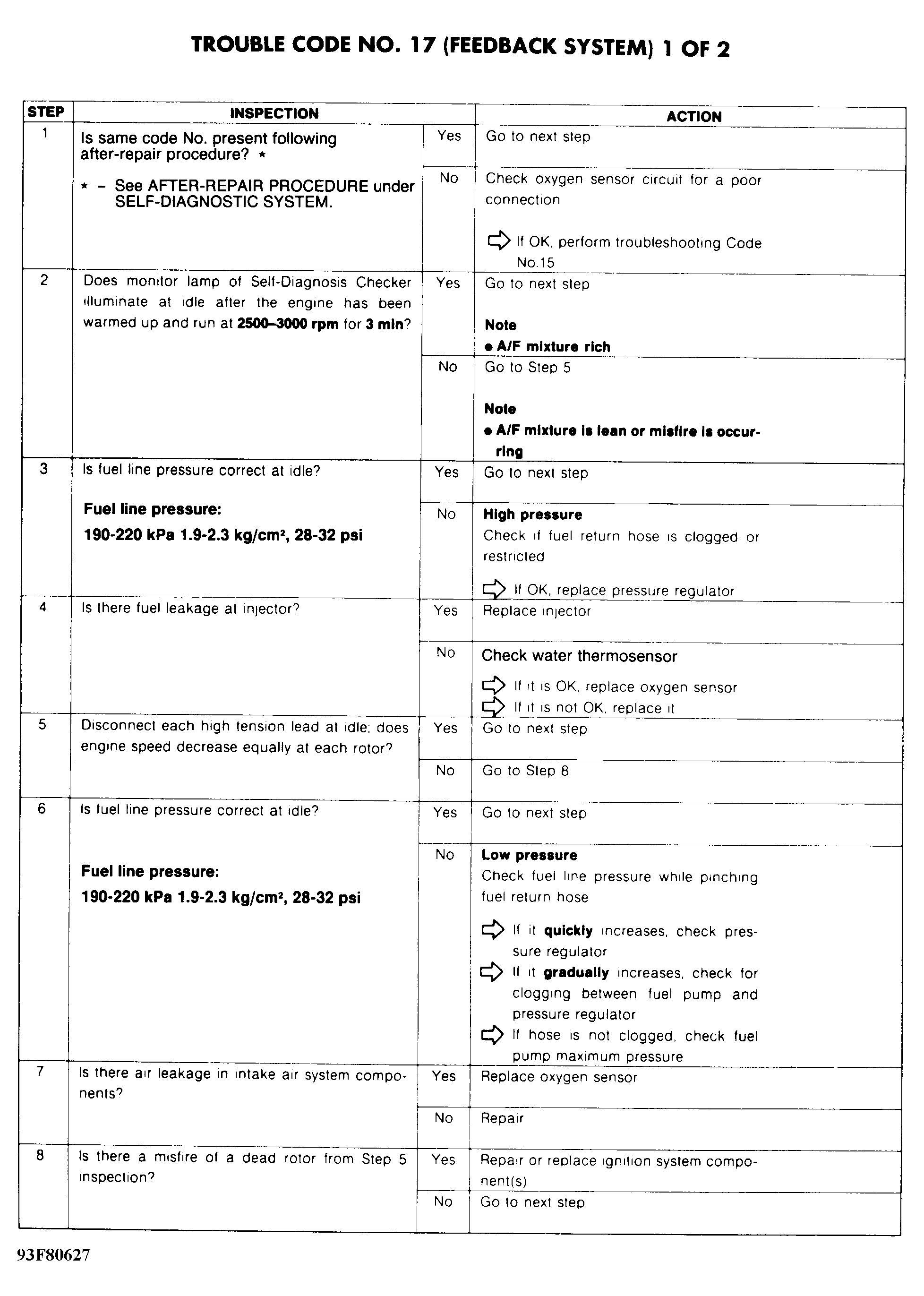

Fig 1: Trouble Code No. 17 - Diagnostic Flowchart (1 Of 2)
G93F80627Courtesy of MAZDA MOTORS CORP.

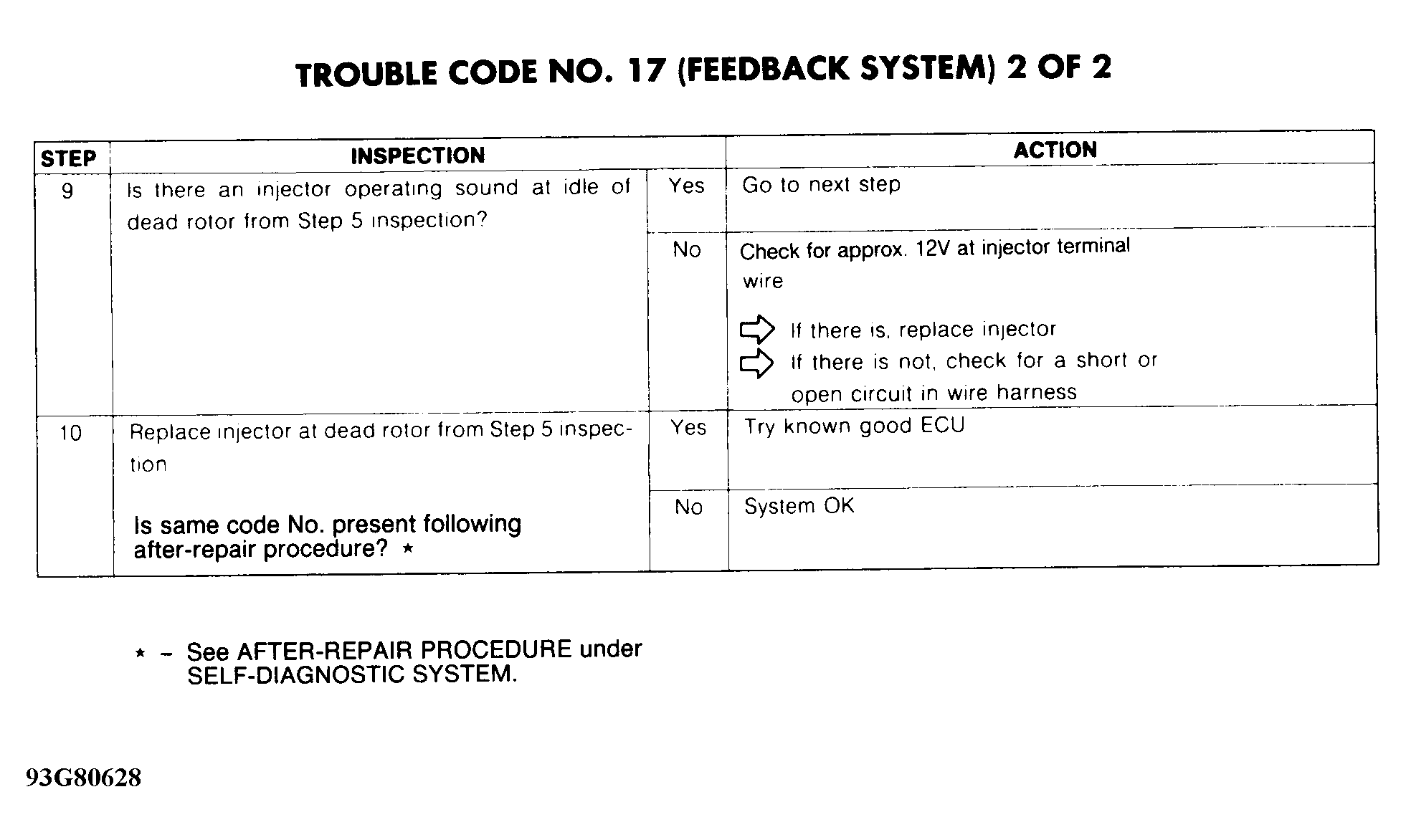

Fig 2: Trouble Code No. 17 - Diagnostic Flowchart (2 Of 2)
G93G80628Courtesy of MAZDA MOTORS CORP.

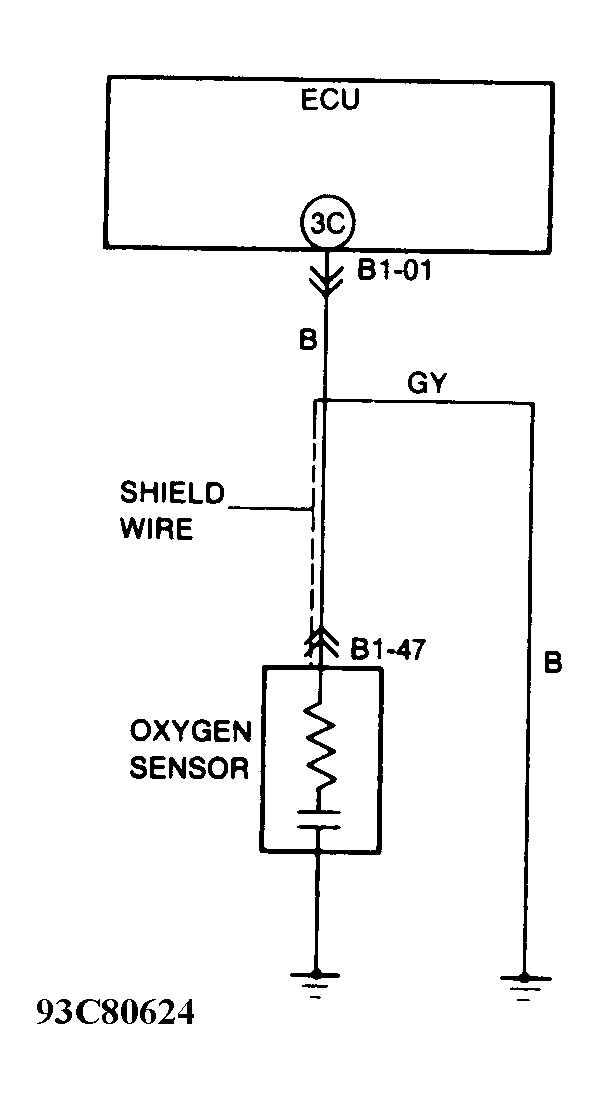

Fig 3: Trouble Code No. 16 - Schematic
G93C80624Courtesy of MAZDA MOTORS CORP.
