Code 5: (Knock Sensor)

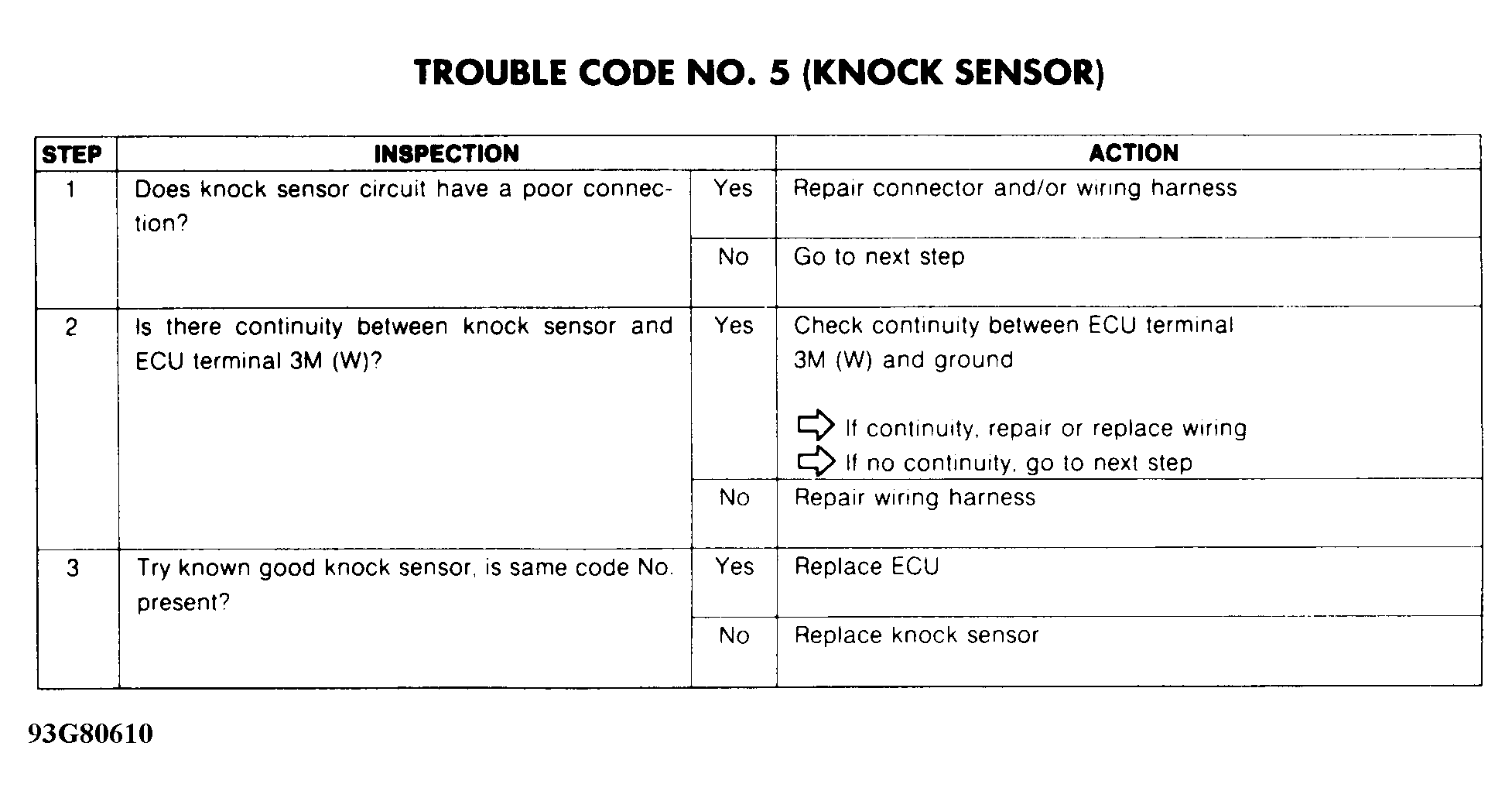

Fig 1: Trouble Code No. 5 - Diagnostic Flowchart

G93G80610

Courtesy of MAZDA MOTORS CORP.

Fig 2: Trouble Code No. 5 - Schematic

G93H80611

Courtesy of MAZDA MOTORS CORP.
