Code 73: (Injector - Rear Secondary)

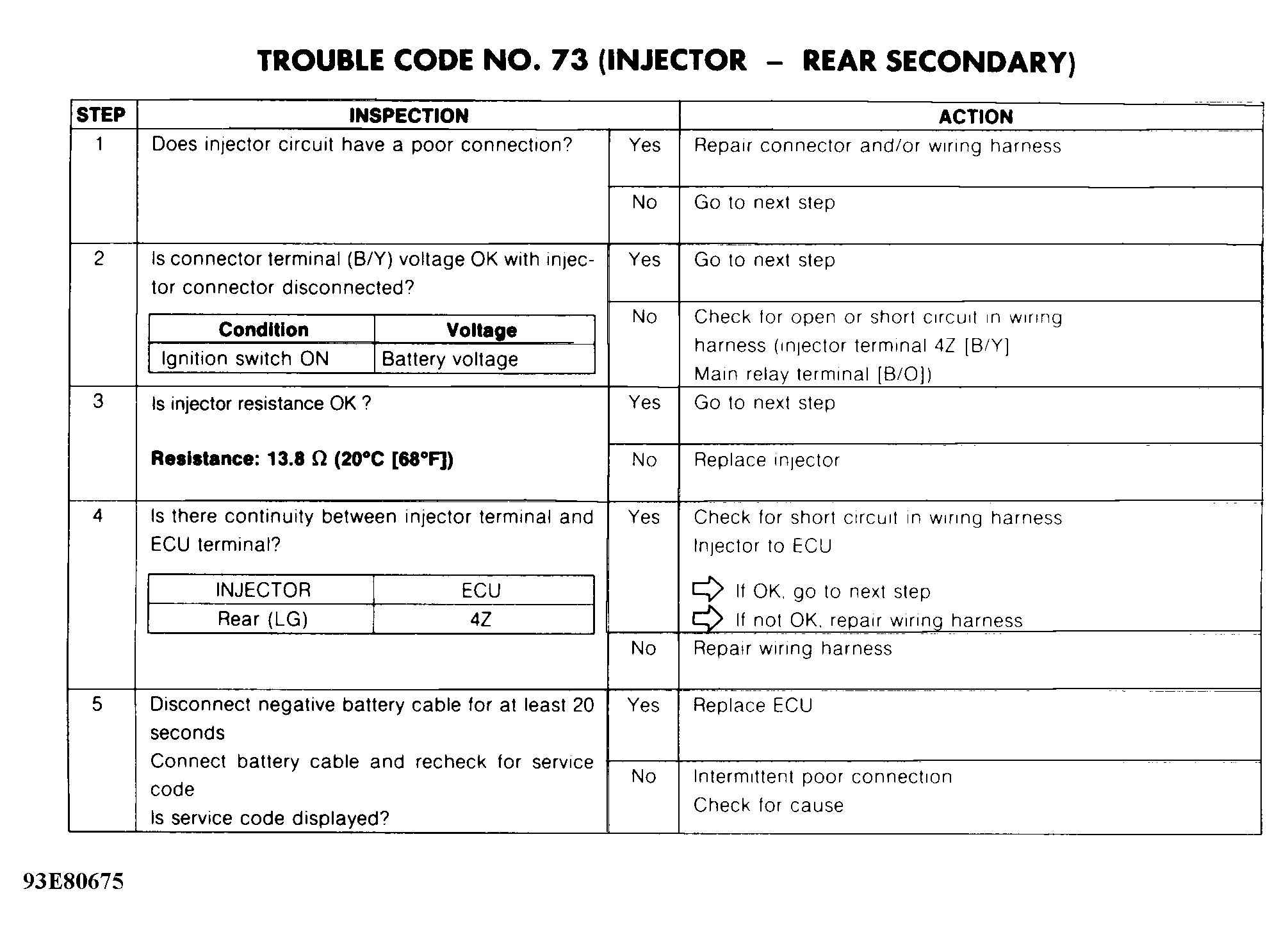

Fig 1: Trouble Code No. 73 - Diagnostic Flowchart

G93E80675

Courtesy of MAZDA MOTORS CORP.

Fig 2: Trouble Code No. 73 - Schematic

G93D80674

Courtesy of MAZDA MOTORS CORP.
