Testing Sequence

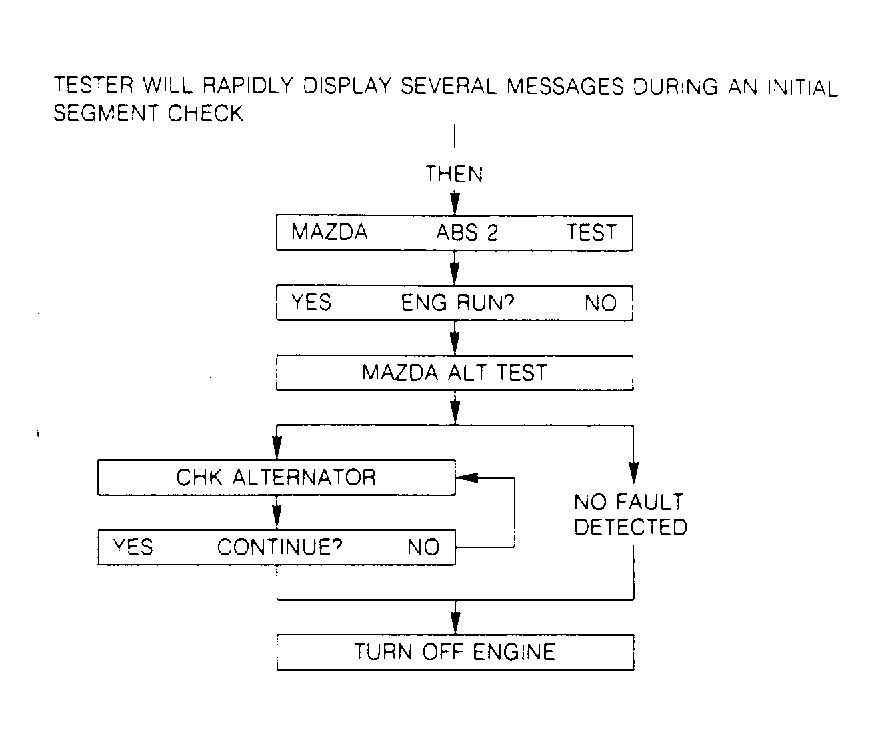

Fig 1: Power Up/Alternator Test/ABS System Test (1 of 9)

Courtesy of MAZDA MOTORS CORP.

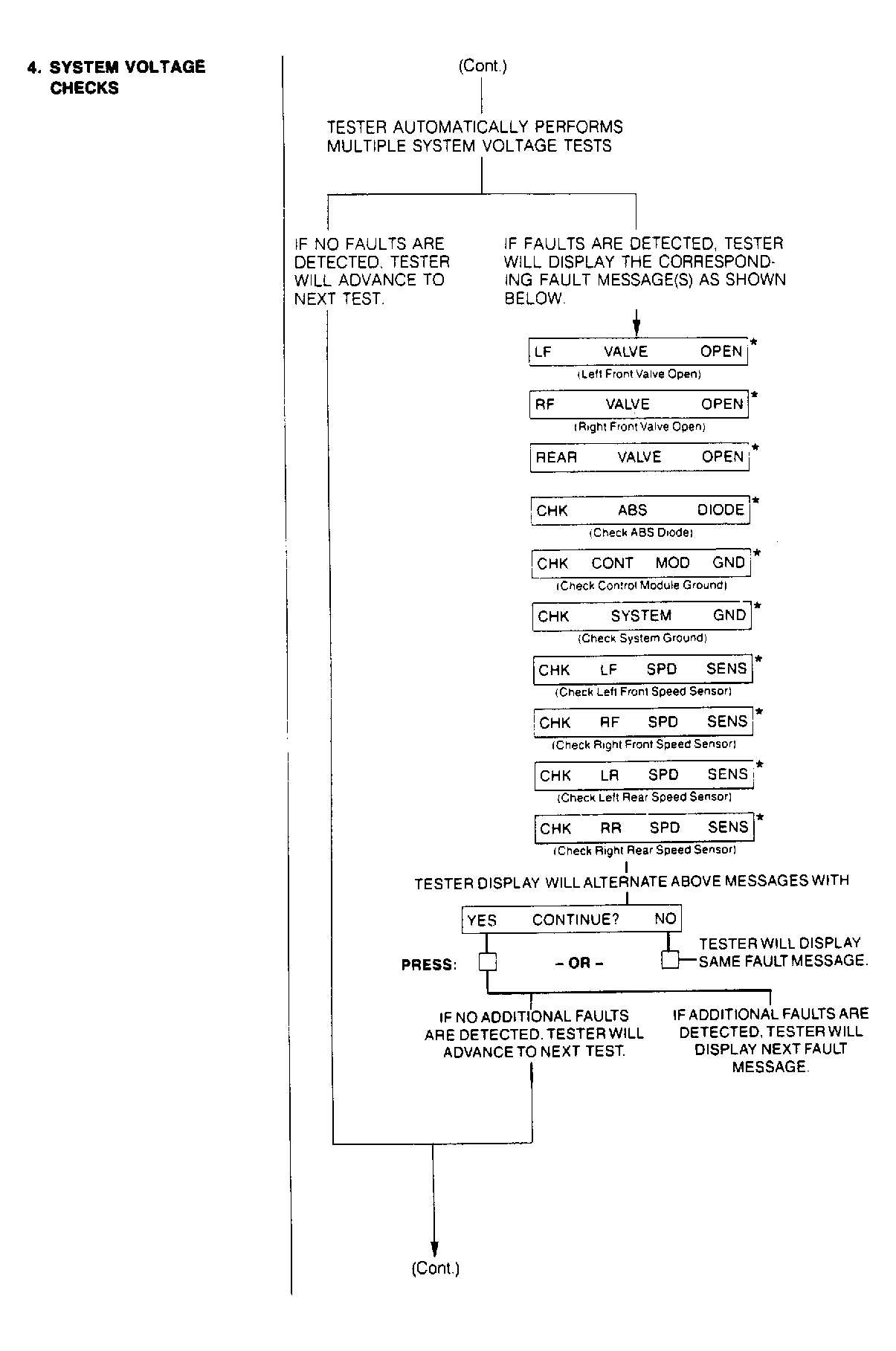

Fig 2: System Voltage Checks (2 of 9)

Courtesy of MAZDA MOTORS CORP.

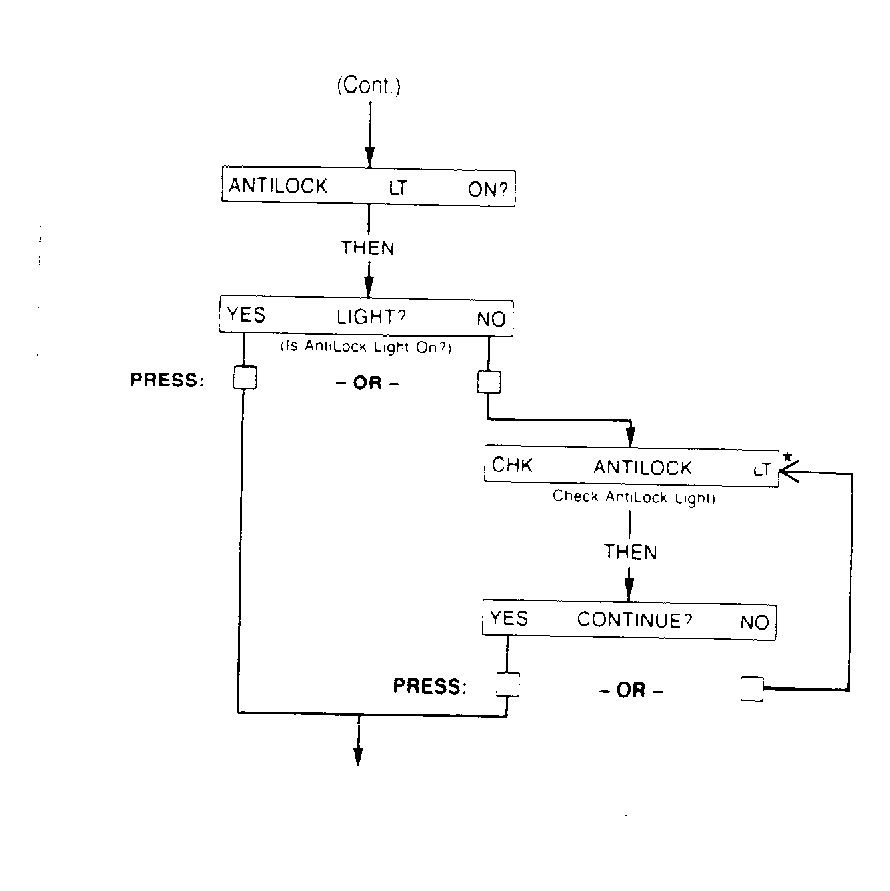

Fig 3: Static Tests/Brake Light Switch Test (3 of 9)

Courtesy of MAZDA MOTORS CORP.

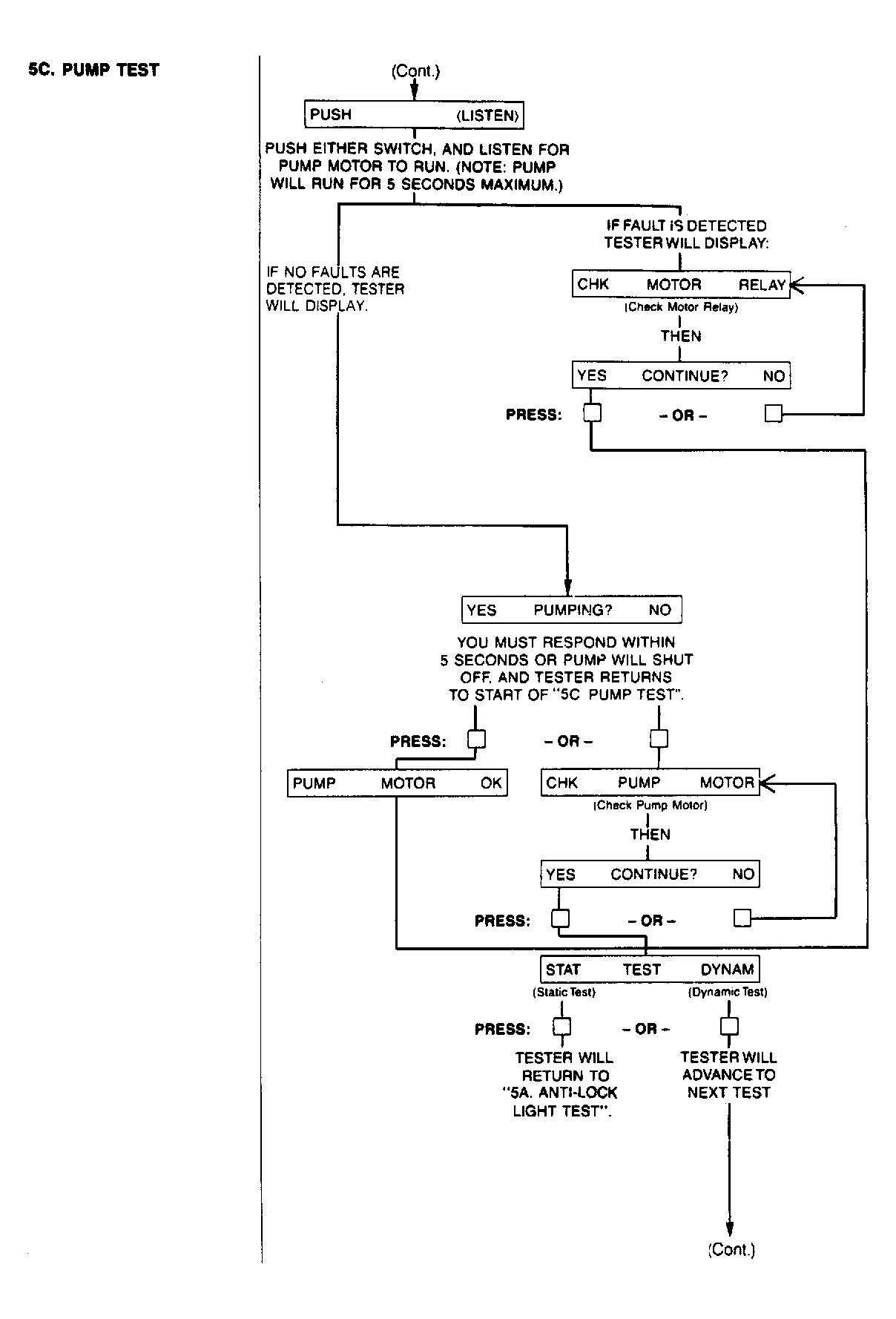

Fig 4: Pump Test (4 of 9)

Courtesy of MAZDA MOTORS CORP.

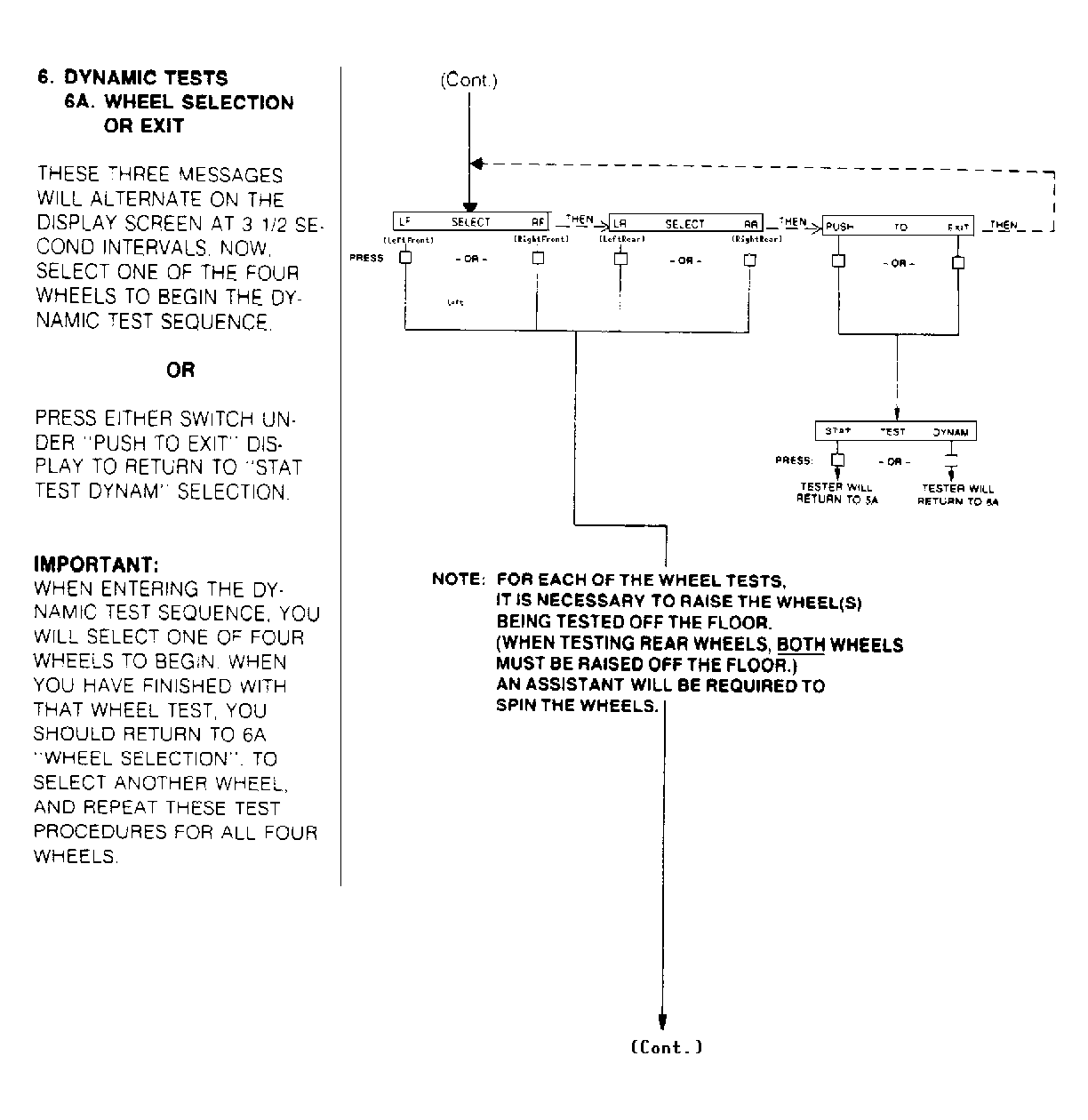

Fig 5: Dynamic Tests/Wheel Sensor Test (5 of 9)

Courtesy of MAZDA MOTORS CORP.

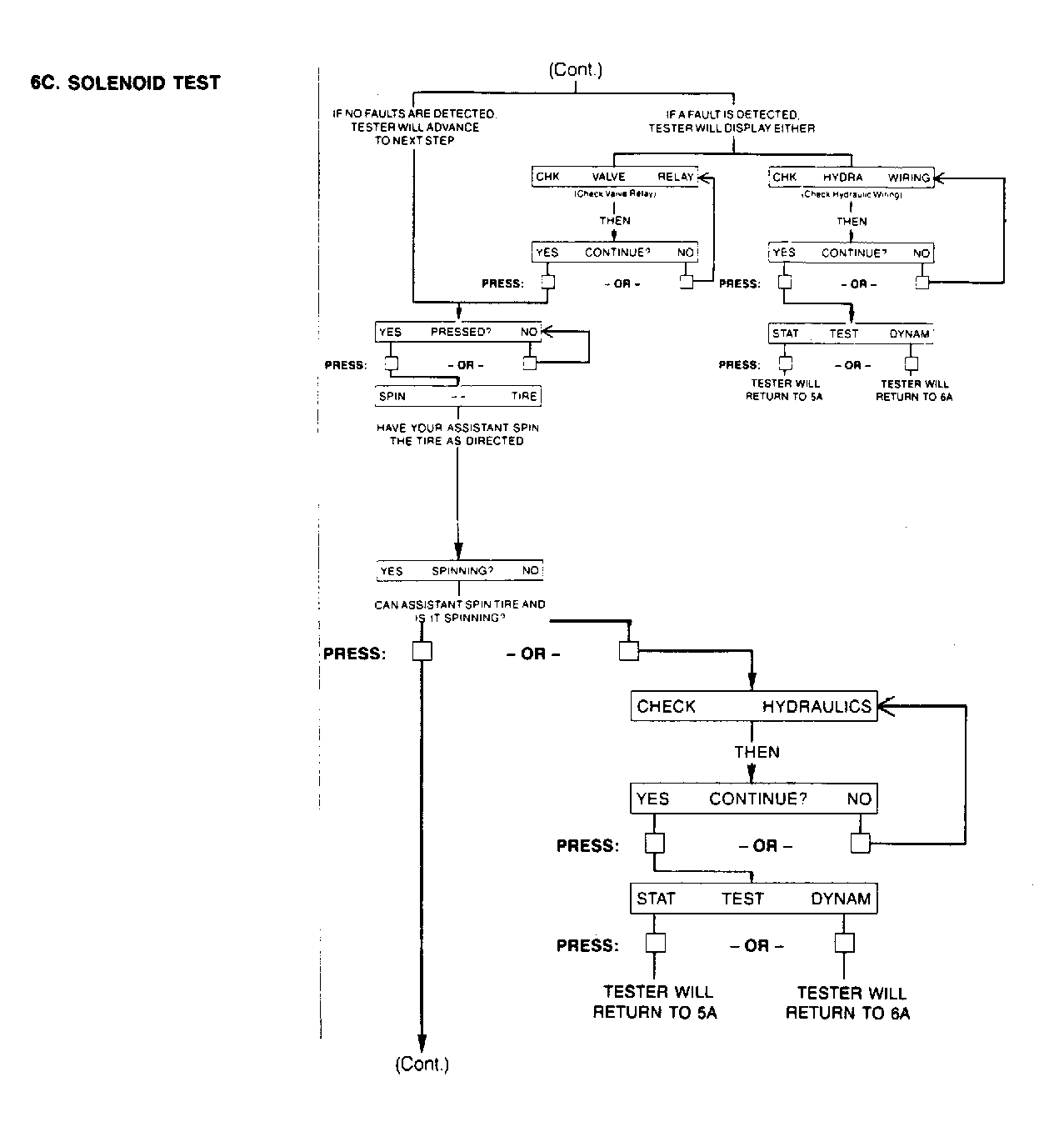

Fig 6: Wheel Sensor Test (Cont.)/Solenoid Test (6 of 9)

Courtesy of MAZDA MOTORS CORP.

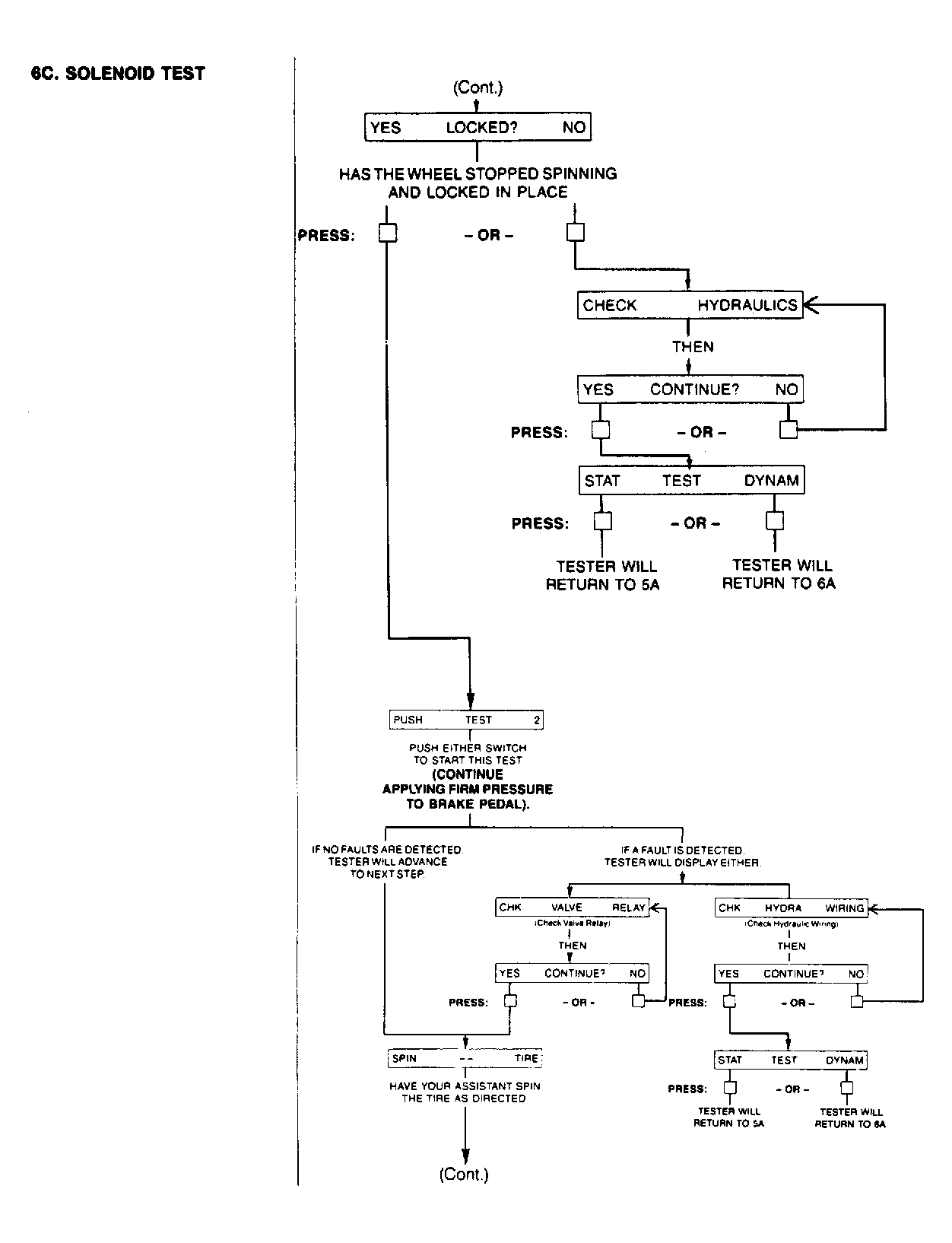

Fig 7: Solenoid Test (Cont.) (7 of 9)

Courtesy of MAZDA MOTORS CORP.

Fig 8: Solenoid Test (Cont.) (8 of 9)

Courtesy of MAZDA MOTORS CORP.

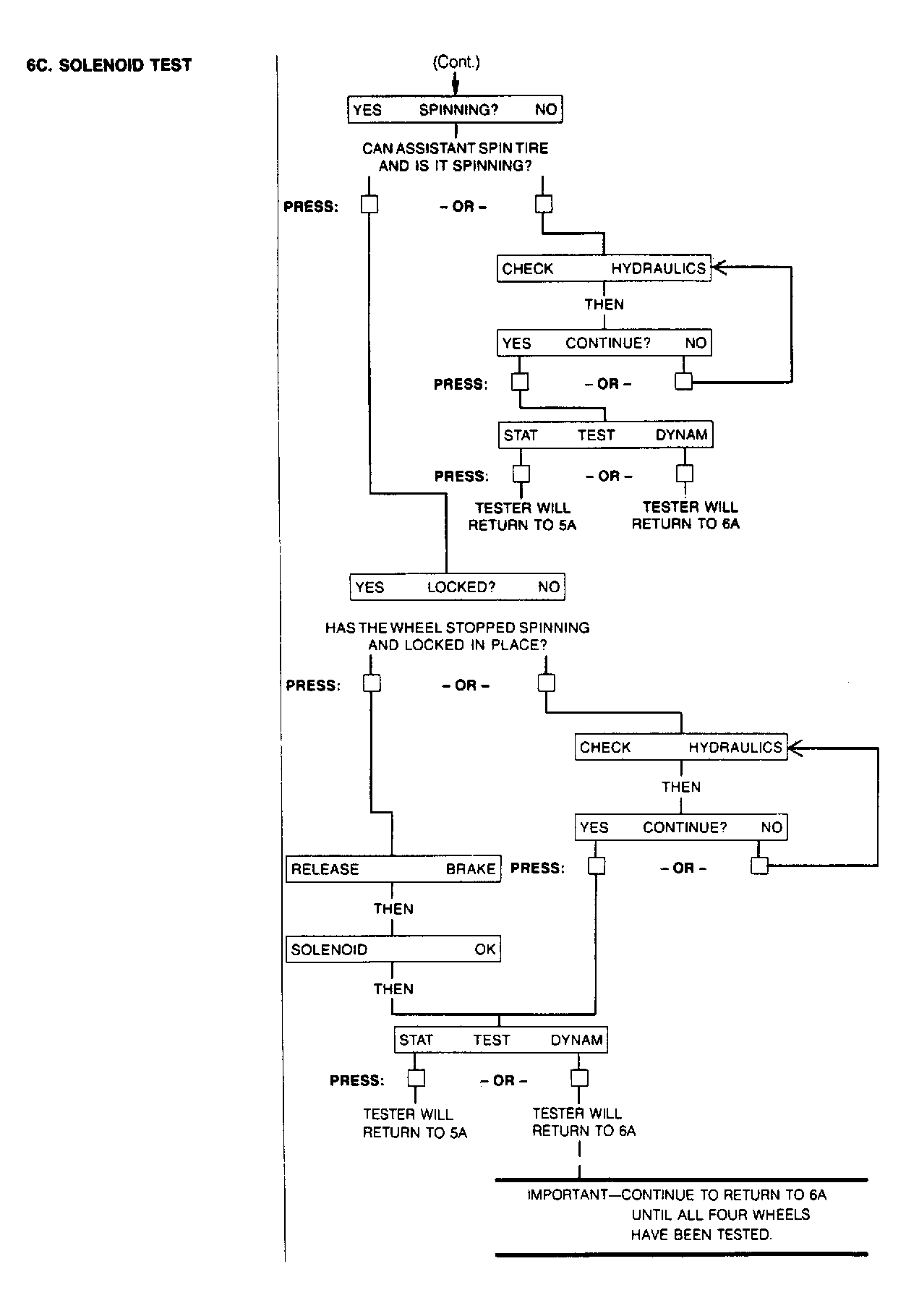

Fig 9: Solenoid Test (Cont.) (9 of 9)

Courtesy of MAZDA MOTORS CORP.
