Oxygen (O2S) Sensor

  1. Warm engine to operating temperature. Operate engine at idle. Disconnect O2S sensor electrical connector. Connect voltmeter between O2S sensor connector terminals "A" and "B". See Fig 1 .
  2. Observe voltmeter while rapidly accelerating and decelerating engine speed. Voltage should be 0.5-1.0 volt during acceleration and 0.0-0.4 volt during deceleration. Replace O2S sensor as necessary.

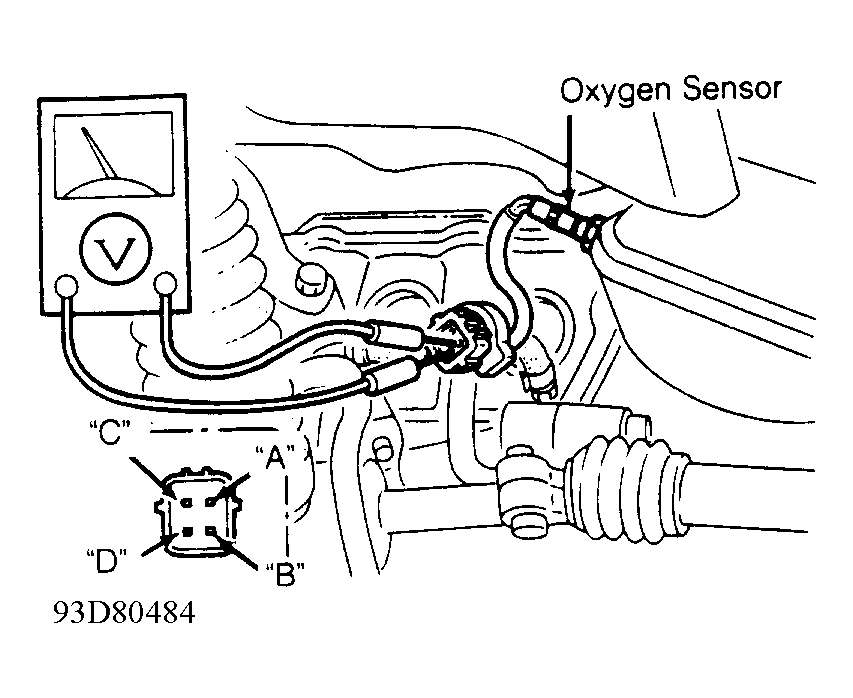

Fig 1: Testing Oxygen Sensor (929)
G93D80484Courtesy of MAZDA MOTORS CORP.
