Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS & DRL Control Unit | Behind center of dash. |
| A/T Control Unit | Behind left kick panel. |
| Cruise Control Unit | Behind left side of dash, near kick panel. |
| Electronic Transmission Control Unit | Behind left kick panel. |
| Engine Control Unit (ECU) | Behind right kick panel. |
| Remote Free Wheeling Hub (RFW) Control Unit | Behind left kick panel. |

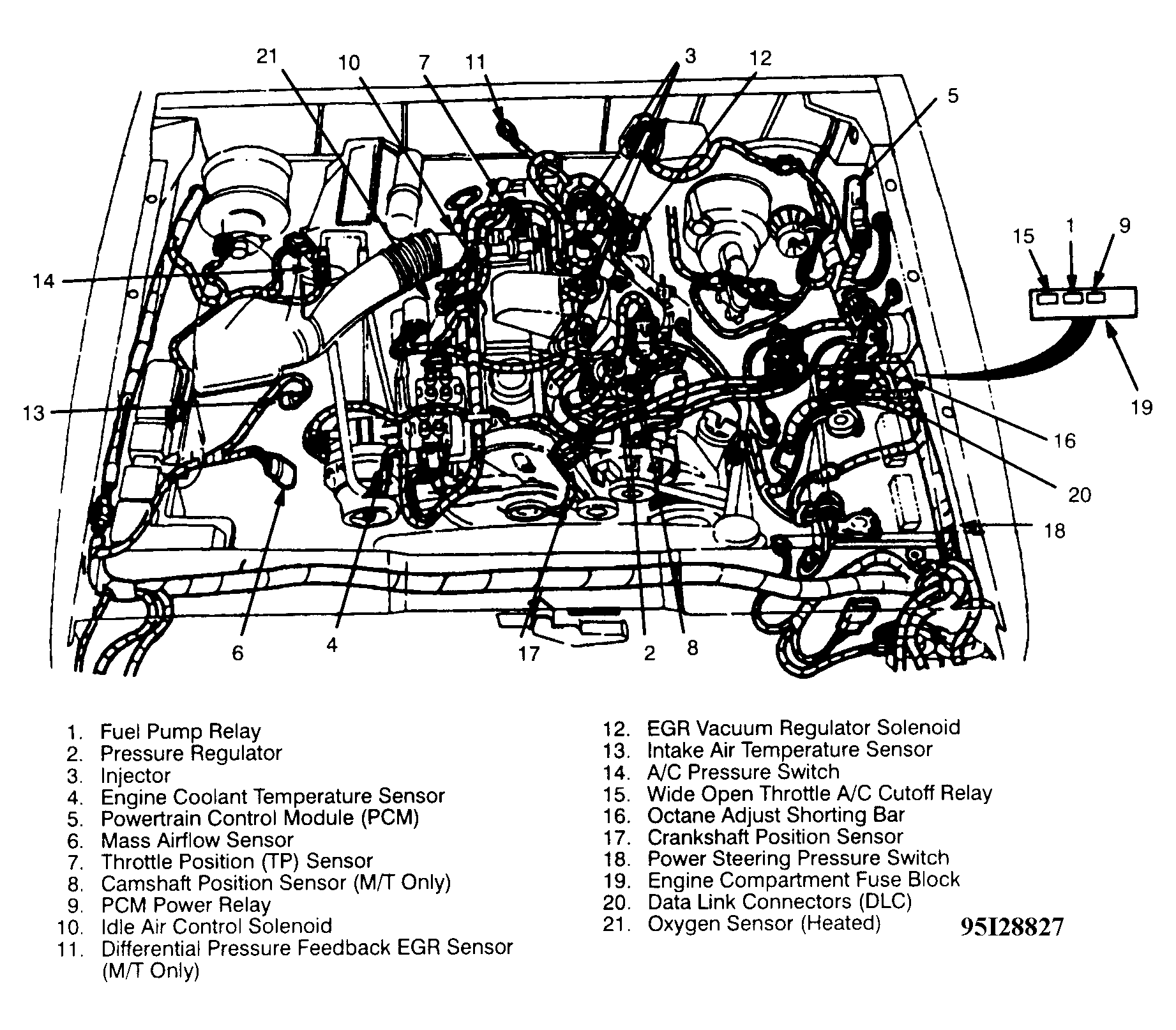

| Powertrain Control Module (PCM) (B2300) | At left rear engine firewall. See Figure . |
