Code 10: (Intake Air THERMOSENSOR)
Code 10: (Intake Air THERMOSENSOR)
AIRFLOW METER WIRE COLORS
Terminal
Wire Color
"C"
BLK/BLU
"D"
RED/BLK

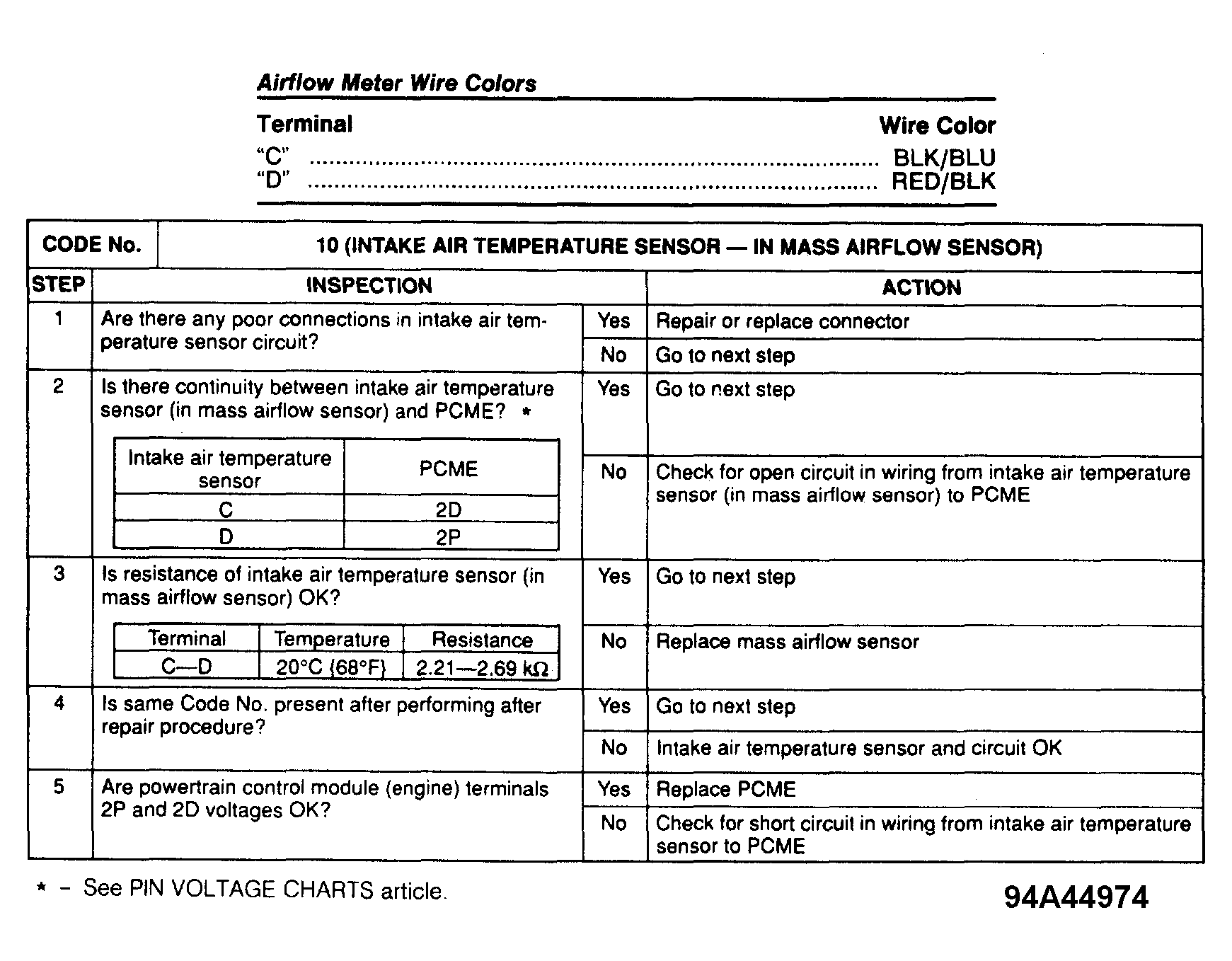

Fig 1: Trouble Code No. 10 Diag. Chart (Intake Air Thermosensor)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
