Component Testing: Sub-Switch

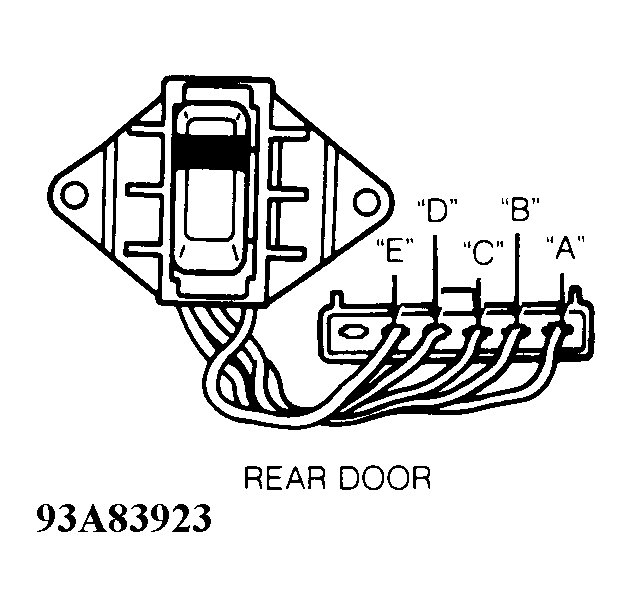

Check continuity across specified terminals of sub-switch connector with main switch button held in specified position. See SUB-SWITCH CONTINUITY TEST . SeeFig 1 and Fig 2. Replace sub-switch if continuity is not as specified.
SUB-SWITCH CONTINUITY TEST
| Application & Sw. Position | Continuity Between Terminals | |
|---|---|---|
| Passenger | ||
| UP | A & F; B & D | |
| Off (Neutral) | B & D; E & F | |
| DOWN | A & B; E & F | |
| Rear | ||
| UP | A & E; B & D | |
| Off (Neutral) | A & C; B & D | |
| DOWN | A & C; B & E | |
